1
Engine displacement
400
2
Year
1998
3
Trim
XPLORER 400L - W98CC38C
4
Parts Catalog

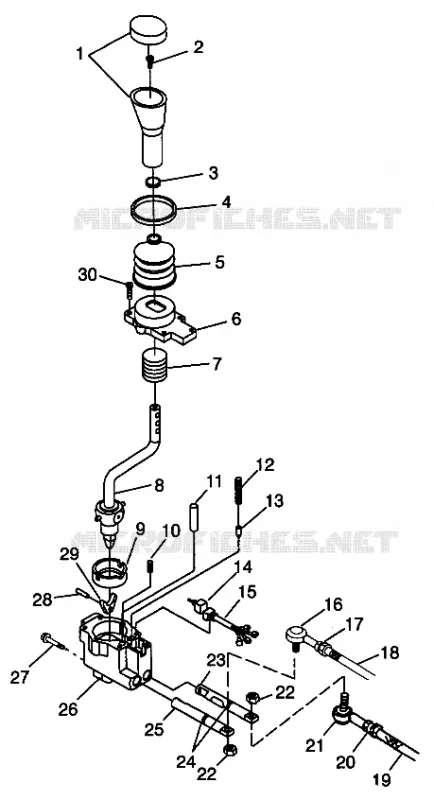

GEAR SELECTOR XPLORER 400L W98CC38C (4945414541C011)
5
Parts Diagram
Parts Catalog
GEARCASE XPLORER 400L W98CC38C (4945414541C009)
by
PISTON CRANKSHAFT XPLORER 400L W98CC38C (4945414541C012)
GEAR SELECTOR XPLORER 400L W98CC38C (4945414541C011)
-
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
30
-
SELECTOR ASM GEAR (Incl. 1-15 23-25 27-29)
1341218
Not Available
1
KNOB ASM;HI/LO/REV.
3233195
9999999
Not Available
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
WIRE STRAP
3233131
9999999
Not Available
4
CLAMP
3233132
9999999
Not Available
5
GEAR SELECTOR BOOT
3233368
9999999
Not Available
6
COVER GEAR SELECTOR
3233213
Not Available
7
SPRING HOLDING
3233158
9999999
Not Available
8
HANDLE SUBASM GS GEN IV
3233456
9999999
Not Available
9
CUP; BEARING
3233063
9999999
Not Available
10
SPRING CENTERING
3233083
9999999
Not Available
11
PIN STOP
3233062
9999999
Not Available
12
DETENT SPRING
3233069
9999999
Not Available
13
DETENT BULLET
3233060
9999999
Not Available
14
SWITCH GEAR SELECTOR
3233215
9999999
Not Available
15
STRAP WIRE
3233090
9999999
Not Available
16
ROD END; LEFT; 6 MM
7061013
$120,74 Unit Price incl. VAT
17
BOLT
7546702
9999999
Not Available
18
ROD SHIFTLINK LOW
5020936
9999999
Not Available
19
ROD SHIFTLINK HI RANGE
5020690
9999999
Not Available
20
NUT
7546701
9999999
Not Available
21
ROD END; RIGHT; 6 MM
7061014
9999999
Not Available
23
SLIDE HIGH/REV
3233499
9999999
Not Available
24
O-RING
3233076
$11,54 Unit Price incl. VAT
25
SLIDE LOW
3233089
9999999
Not Available
26
BODY GEARSELECT
3233457
Not Available
27
SCREW
7515181
9999999
Not Available
28
PIN INTERLOCK
3233070
9999999
Not Available
29
INTERLOCK BUTTERFLY
3233084
9999999
Not Available
30
SCREW; MAGNICARD COATED
3233498
9999999
Not Available

Find the detailed GEAR SELECTOR XPLORER 400L W98CC38C (4945414541C011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
