Engine displacement
1000
2
Year
2016
3
Trim
SPORTSMAN TOURING 1000 MD
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
COOLING BYPASS
by
ENGINE, COOLING SYSTEM AND WATER PUMP
ENGINE, COOLING SYSTEM
1
2
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
31
32
33
34
1
2
2
3
4
5
6
7
7
7
7
8
8
9
10
11
12
12
13
14
14
15
15
15
15
15
15
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
15
16
17
18
19
20
1
HOSE-RADIATOR ENGINE OUT 25MM
5414392
$104,99 Unit Price incl. VAT
1
CRANKCASE ASM.
3083836
9999999
Not Available
2
PIN; DOWEL
3080103
9999999
Not Available
2
RADIATOR HOSE; ENGINE IN; 25 MM
5414391
$104,99 Unit Price incl. VAT
3
BOTTLE ASSEMBLY; COOLANT RECOVERY
1240406
$141,74 Unit Price incl. VAT
3
BOLT AND WASHER ASSY.
3082096
9999999
Not Available
4
BOLT&WASHER ASSY.
3083615
9999999
Not Available
4
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
5
GROMMET AND INSERT ASSEMBLY
5413509
$30,23 Unit Price incl. VAT
5
ASM. BOLT AND WASHER
3080739
9999999
Not Available
6
SEAL OIL
3080006
9999999
Not Available
6
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
7
BALL BEARING
3083805
9999999
Not Available
7
SCR-HXFL-M6X1.0X30 RIE DGPNT
7519202
$7,34 Unit Price incl. VAT
8
PRESSURE CAP; 13 PSI
1240466
$104,99 Unit Price incl. VAT
8
STUD
3080746
7520776
$6,29 Unit Price incl. VAT
9
PLUG DRAIN
3083767
9999999
Not Available
9
RADIATOR ASSEMBLY
1240702
1241438
$1 296,74 Unit Price incl. VAT
9
RADIATOR
1240706
$224,98 Unit Price incl. VAT
10
GASKET; (FIBER)
3083569
7555998
$2,09 Unit Price incl. VAT
10
RADIATOR MOUNT GROMMET; LOWER
5413510
$30,23 Unit Price incl. VAT
11
CYLINDER Substituted by 3085541 (Incl. 12-14)
3083769
Not Available
11
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available
12
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
12
STUD
3080283
9999999
Not Available
13
STUD
3080016
9999999
Not Available
13
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
14
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
14
VALVE CHECK
3083337
7051020
$68,24 Unit Price incl. VAT
15
GASKET
5810279
$4,19 Unit Price incl. VAT
15
GASKET CYLINDER
3083733
9999999
Not Available
16
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
16
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
17
BOTTLE-COOLANT RECOVERY
5437257
1240406
$141,74 Unit Price incl. VAT
17
GASKET
3083835
9999999
Not Available
18
ASM. BOLT AND WASHER
3083730
9999999
Not Available
18
FAN
2412286
2415280
$488,24 Unit Price incl. VAT
19
HEAD CYLINDER
3083620
9999999
Not Available
19
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
20
GASKET HEAD
3083768
9999999
Not Available
20
COOLANT LINE; 27 CM
845012827
Not Available
21
FLANGE NUT
3082910
9999999
Not Available
22
MOUNTING RUBBER
3083731
9999999
Not Available
23
COLLAR
3083732
9999999
Not Available
24
ADAPTER; CARB.
3083412
9999999
Not Available
25
BAND ASSY
3082011
9999999
Not Available
26
PAN HEAD SCREW
3081497
9999999
Not Available
27
SOCKET HEAD BOLT
3081330
9999999
Not Available
28
DAMPER FIN
3083929
9999999
Not Available
29
FIN DAMPER #2
3083930
9999999
Not Available
30
FIN DAMPER #3
3083931
9999999
Not Available
31
FIN DAMPER #4
3083932
9999999
Not Available
32
GASKET EXHAUST
3083770
9999999
Not Available
33
NUT
3080285
9999999
Not Available
34
LOCK WASHER
3080530
9999999
Not Available

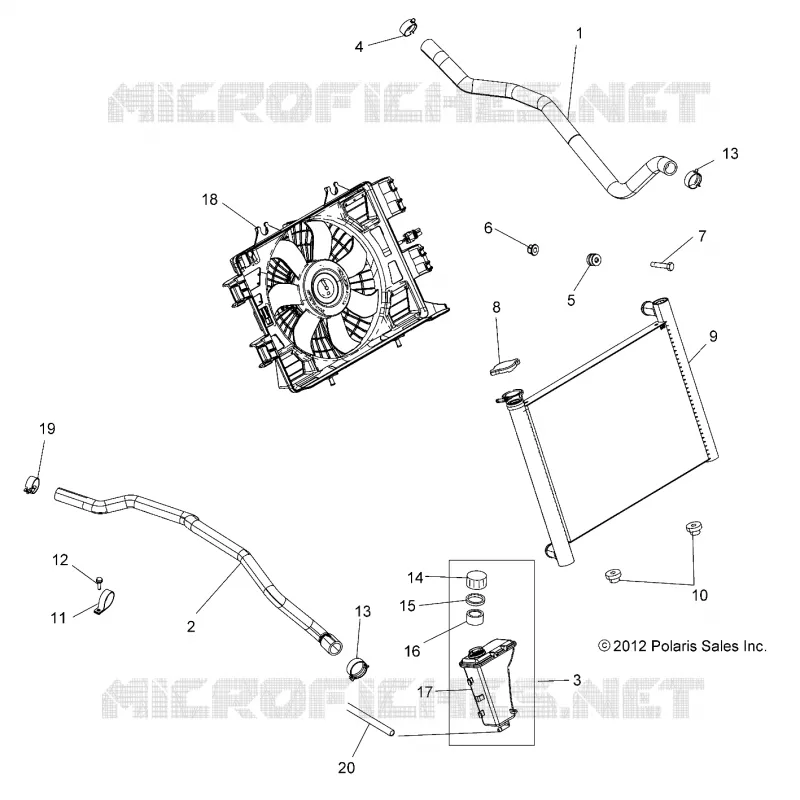

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
