1
Engine displacement
autre
2
Year
1990
3
Trim
FIN TRAIL - F900761
4
Parts Catalog

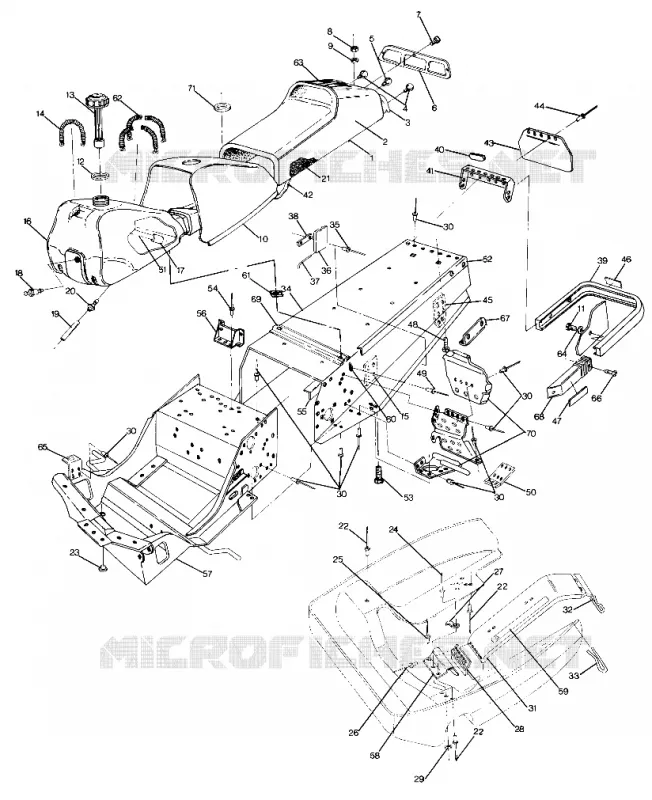

CHASSIS AND SEAT TRAIL UPDATED 2/90 (4916831683001A)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER ALL SWEDISH SNOWMOBILES (49187318730007)
by
CHASSIS AND SEAT TRAIL DELUXE UPDATED 2/90 (4916831683003A)
CHASSIS AND SEAT TRAIL UPDATED 2/90 (4916831683001A)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
45
45
45
45
46
46
47
47
48
48
49
49
50
50
50
50
50
50
50
50
51
51
52
52
53
53
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
70
70
70
70
70
70
71
71
71
71
71
71
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
45
45
45
45
46
46
47
47
48
48
49
49
50
50
50
50
50
50
50
50
51
51
52
52
53
53
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
70
70
70
70
70
70
71
71
71
71
71
71
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
45
45
45
45
46
46
47
47
48
48
49
49
50
50
50
50
50
50
50
50
51
51
52
52
53
53
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
70
70
70
70
70
70
71
71
71
71
71
71
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
45
45
45
45
46
46
47
47
48
48
49
49
50
50
50
50
50
50
50
50
51
51
52
52
53
53
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
70
70
70
70
70
70
71
71
71
71
71
71
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
45
45
45
45
46
46
47
47
48
48
49
49
50
50
50
50
50
50
50
50
51
51
52
52
53
53
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
70
70
70
70
70
70
71
71
71
71
71
71
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
30
30
30
30
30
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
45
45
45
45
46
46
47
47
48
48
49
49
50
50
50
50
50
50
50
50
51
51
52
52
53
53
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
70
70
70
70
70
70
71
71
71
71
71
71
1
SEAT (TRAIL) (Incl. 2-7 21 63)
2681440
Not Available
2
COVER SEAT [No Longer Available]
2681441
Not Available
3
HOUSING TAILLIGHT
5430425
Not Available
4
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
5
BULB BRAKELIGHT
4030019
9999999
Not Available
6
LENS TAILLIGHT
5430423
9999999
Not Available
7
SCREW
7511840
9999999
Not Available
8
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
9
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
10
COVER TANK.(TRAIL 90)
2681475
9999999
Not Available
11
BOLT
7512240
9999999
Not Available
12
GASKET-GAS CAP
5810142
5810513
$15,74 Unit Price incl. VAT
13
CAP GAS(HI.CAP.)
2511184
Not Available
14
SPRING; TANK
7042020
9999999
Not Available
15
BRKT.
5220542
5220542-067
Not Available
16
TANK GAS
2511185
9999999
Not Available
17
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
18
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
19
KIT-TANK VENT
2200190
9990000
Not Available
20
VENT FITTING;TANK
5430669
9999999
Not Available
21
BUN SEAT [No Longer Available]
5431134
Not Available
22
RIVET
7621457
$2,09 Unit Price incl. VAT
23
PLUG
7080288
Not Available
24
POP RIVET
7621402
$2,09 Unit Price incl. VAT
25
RIVET
7621452
9999999
Not Available
26
POP RIVET
7621330
$2,09 Unit Price incl. VAT
27
CLIP WIRING
4020035
9999999
Not Available
28
HINGE
5211047
9999999
Not Available
29
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
30
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
31
GUARD CLUTCH
5230118
5240965
Not Available
32
PIN-CLUTCH COVER
7080216
7080698
$17,84 Unit Price incl. VAT
33
PIN FRONT
7080311
9999999
Not Available
34
TUNNEL (TRAIL) [No Longer Available]
1011776
Not Available
35
POP RIVET
7621323
$2,09 Unit Price incl. VAT
36
BELT SEAT
7080322
Not Available
37
WIRE-SEAT-BELT
5223864
Not Available
38
PLATE-SEAT BELT
5210842
9999999
Not Available
39
BUMPER; REAR
5224334
9999999
Not Available
39
BUMPER;R.(N-INDY)
5224347
5224347-067
Not Available
40
DECAL TRACK [No Longer Available]
7072872
Not Available
41
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
42
HARNESS-TAILLIGHT
2460226
9999999
Not Available
43
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
44
RIVET
7621418
$2,09 Unit Price incl. VAT
45
BRKT R.SUSP LH MTG. Substituted by 1011749-067
1011666
Not Available
45
BRKT R.SUSP RH MTG. Substituted by 1011750-067
1011667
Not Available
46
DECAL 36## R.BUMP [No Longer Available] (650 Only)
7072582
Not Available
47
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
48
BOLT
7512103
$6,29 Unit Price incl. VAT
49
RIVET(10)
7621222
9999999
Not Available
50
PLATE;TUNNEL;RH
5220635
9999999
Not Available
50
PLATE;TUNNEL;LH
5220634
9999999
Not Available
51
LINE FUEL (FT.)
8450003
8450003-1525
$136,49 Unit Price incl. VAT
52
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
Not Available
53
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
56
BRKT GASTANK WELD. Substituted by 1011733-067
1011733
Not Available
57
BULKHEAD (TRAIL) (Trail)
1011612
Not Available
58
BRACKET; HINGE
5220406
5241437
Not Available
59
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
60
SNAP-MALE
7080227
9999999
Not Available
61
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
62
SPRING TANK
7042033
9999999
Not Available
63
BUCKLE&STRAP (Trail)
2681291
Not Available
64
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
65
SUPPORT MUFFLER Substituted by 1011601-067
1011601
Not Available
66
SCREW
7511848
$7,34 Unit Price incl. VAT
67
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
68
CAP BUMPER
5430930
9999999
Not Available
69
BRKT;R.FUELTANK MTG.
5222375
9999999
Not Available
70
FOOTREST ASM LH
2200250
Not Available
70
FOOTREST ASM RH
2200254
Not Available
71
REFLECTOR
5430781
Not Available
71
DESC NOT_AVAILABLE
543119O
Not Available

Find the detailed CHASSIS AND SEAT TRAIL UPDATED 2/90 (4916831683001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for FIN TRAIL - F900761

CONSOLE TRAIL (4916831683008A)

CONSOLE TRAIL (4916831683008A)

for FIN TRAIL - F900761 from 1990

FRONT SUSPENSION AND SKI TRAIL (4916831683009A)

FRONT SUSPENSION AND SKI TRAIL (4916831683009A)

for FIN TRAIL - F900761 from 1990

STEERING TRAIL (4916831683011A)

STEERING TRAIL (4916831683011A)

for FIN TRAIL - F900761 from 1990

SUSPENSION TRAIL (4916831683015A)

SUSPENSION TRAIL (4916831683015A)

for FIN TRAIL - F900761 from 1990

CRANKCASE TRAIL (4916831683025A)

CRANKCASE TRAIL (4916831683025A)

for FIN TRAIL - F900761 from 1990

CYLINDER TRAIL (4916831683026A)

CYLINDER TRAIL (4916831683026A)

for FIN TRAIL - F900761 from 1990

PISTON AND CRANKSHAFT TRAIL (4916831683027A)

PISTON AND CRANKSHAFT TRAIL (4916831683027A)

for FIN TRAIL - F900761 from 1990

CARBURETOR TRAIL DEALER MUST VERIFY JETTING CARBURETOR NUMBERS. (4916831683032A)

CARBURETOR TRAIL DEALER MUST VERIFY JETTING CARBURETOR NUMBERS. (4916831683032A)

for FIN TRAIL - F900761 from 1990

STARTER TRAIL DELUXE (4916831683033A)

STARTER TRAIL DELUXE (4916831683033A)

for FIN TRAIL - F900761 from 1990

MASTER CYLINDER ALL SWEDISH SNOWMOBILES (49187318730007)

MASTER CYLINDER ALL SWEDISH SNOWMOBILES (49187318730007)

for FIN TRAIL - F900761 from 1990

CHASSIS AND SEAT TRAIL UPDATED 2/90 (4916831683001A)

CHASSIS AND SEAT TRAIL UPDATED 2/90 (4916831683001A)

for FIN TRAIL - F900761 from 1990

CHASSIS AND SEAT TRAIL DELUXE UPDATED 2/90 (4916831683003A)

CHASSIS AND SEAT TRAIL DELUXE UPDATED 2/90 (4916831683003A)

for FIN TRAIL - F900761 from 1990

HOOD TRAIL UPDATED 2/90 (4916831683005A)

HOOD TRAIL UPDATED 2/90 (4916831683005A)

for FIN TRAIL - F900761 from 1990

NOSEPAN Trail Updated 2/90 (4916831683007A)

NOSEPAN Trail Updated 2/90 (4916831683007A)

for FIN TRAIL - F900761 from 1990

ENGINE MOUNTING TRAIL UPDATED 2/90 (4916831683017A)

ENGINE MOUNTING TRAIL UPDATED 2/90 (4916831683017A)

for FIN TRAIL - F900761 from 1990

DRIVE CLUTCH TRAIL (4916831683019A)

DRIVE CLUTCH TRAIL (4916831683019A)

for FIN TRAIL - F900761 from 1990

DRIVEN CLUTCH TRAIL (4916831683020A)

DRIVEN CLUTCH TRAIL (4916831683020A)

for FIN TRAIL - F900761 from 1990

ELECTRIC START COMPONENTS Trail ES and Deluxe (4916831683021A)

ELECTRIC START COMPONENTS Trail ES and Deluxe (4916831683021A)

for FIN TRAIL - F900761 from 1990

MAGNETO TRAIL (4916831683028A)

MAGNETO TRAIL (4916831683028A)

for FIN TRAIL - F900761 from 1990

BLOWER HOUSING AND RECOIL STARTER TRAIL (4916831683029A)

BLOWER HOUSING AND RECOIL STARTER TRAIL (4916831683029A)

for FIN TRAIL - F900761 from 1990

OIL PUMP TRAIL (4916831683030A)

OIL PUMP TRAIL (4916831683030A)

for FIN TRAIL - F900761 from 1990

FUEL PUMP TRAIL (4916831683031A)

FUEL PUMP TRAIL (4916831683031A)

for FIN TRAIL - F900761 from 1990

BRAKE CHAINCASE ALL SWEDISH SNOWMOBILES EXCEPT SUPERTRAK WIDETRAK (49187318730005)

BRAKE CHAINCASE ALL SWEDISH SNOWMOBILES EXCEPT SUPERTRAK WIDETRAK (49187318730005)

for FIN TRAIL - F900761 from 1990

POLARIS FIN TRAIL - F900761 1990

FIN TRAIL - F900761

FIN TRAIL - F900761

Model : OTHERS

Engine capacity : autre

Year : 1990

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
