1
Engine displacement
500
2
Year
1998
3
Trim
SPORTSMAN 500 - W98CH50AB
4
Parts Catalog
AIR BOX
5
Parts Diagram
Parts Catalog
DECALS
by
CV JOINT
AIR BOX
1
WING NUT
7542127
$2,09 Unit Price incl. VAT
2
COVER AIRBOX
5432142
9999999
Not Available
3
AIR INTAKE COVER SEAL
5410996
$20,99 Unit Price incl. VAT
4
FOAM FILTER
5811137
9999999
Not Available
5
FILTER AIR
7080595
7083107
$51,23 Unit Price incl. VAT
6
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
7
PLATE;RETAINER
1040463
9999999
Not Available
8
BOOT-SILENCER
5411014
9999999
Not Available
9
FILTER FOAM EH50
5811532
9999999
Not Available
10
FOIL-TAPE
5811373
9999999
Not Available
11
DUCT;INLET SILENCER
5432144
9999999
Not Available
12
SEAL-FOAM
5811309
9999999
Not Available
13
DUCT-AIR INLET CLUTCH
5432086
9999999
Not Available
14
SCREW
7512279
$1,56 Unit Price incl. VAT
15
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
18
DESC NOT_AVAILABLE
8450073
Not Available
19
CLAMP HOSE
7080544
9999999
Not Available
20
BREATHER FILTER IN LINE
2530029
9999999
Not Available
21
HOSE BREATHER(50.5 CM.)
5411477
9999999
Not Available
22
CLAMP BAND NARROW
7080656
7080511
$9,44 Unit Price incl. VAT
23
DUCT-CARB INLET
5432143
9999999
Not Available
24
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
25
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
26
PLATE AIRBOX RETAINER ZINC
5241339
9999999
Not Available
27
PLUG TRAP
5432377
9999999
Not Available
28
LINE BREATHER 120CM SPL
5411349
Not Available
29
FUEL LINE
8450059150
Not Available
30
CLAMP HOSE
7080650
$7,34 Unit Price incl. VAT
31
FOIL-TAPE AIR BOX
5811138
Not Available
32
AIR INTAKE BOX
5432667
$262,49 Unit Price incl. VAT
33
AIR FILTER ASSEMBLY
1253144
9999999
Not Available

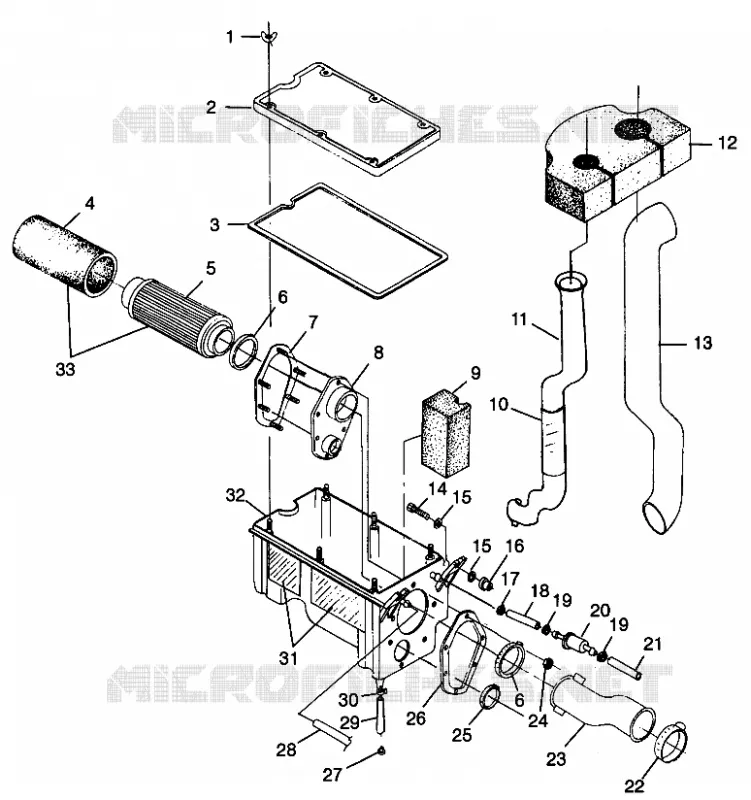

Find the detailed AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
