REAR SUSPENSION for POLARIS SPORTSMAN TOURING 500 HO - A11DH50AX/AZ from 2011

REAR SUSPENSION

1

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

2

RETAINER SPRING; STEEL

5251753

$19,94 Unit Price incl. VAT

3

SCREW

7515415

9999999

Not Available

4

COMPRESSION SPRING 120# REAR GS BLK

7043375067

Not Available

5

CAM ADJUSTMENT SPRING

5630551

$68,24 Unit Price incl. VAT

6

SHOCK-RR IRS

7043374

9999999

Not Available

7

SCREW

7515415

9999999

Not Available

8

CONTROL ARM WELD UPPER RIGHT BLACK

1015849067

Not Available

8

UPPER CONTROL ARM WELD; LEFT; GS BLK

1015848067

Not Available

9

A-ARM SHAFT; SHORT

5134882

9999999

Not Available

10

WHEEL CARRIER; RIGHT

5134985

$175,34 Unit Price incl. VAT

10

CARRIER WHEEL; LEFT

5134984

$175,34 Unit Price incl. VAT

11

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

12

BUSHING-CONTROL ARM;1.285

5436832

5439874

$4,19 Unit Price incl. VAT

13

BOLT

7515472

$4,19 Unit Price incl. VAT

14

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

15

PIVOT BUSHING

5136102

$19,94 Unit Price incl. VAT

16

TUBE-PIVOT 107.26MM 10.33ID

5136101

9999999

Not Available

17

CONTROL ARM BUSHING

5437229

$11,54 Unit Price incl. VAT

18

SCR-3/8-24X6-1/2 HXFLG;GR5-Y

7518522

$13,64 Unit Price incl. VAT

19

CONTROL ARM WELD; LOWER; RIGHT; GS BLK

1016023067

Not Available

19

WELD-CONTROL LOWER LH BLK

1016022067

Not Available

20

SCREW

7517632

$10,49 Unit Price incl. VAT

21

BRKT-CONTROL-ARM PIVOT

5249289

9999999

Not Available

22

BOLT-3/8-16X7 HEX FLANGE GR5

7518365

$13,64 Unit Price incl. VAT

23

WASHER

7555832

$4,19 Unit Price incl. VAT

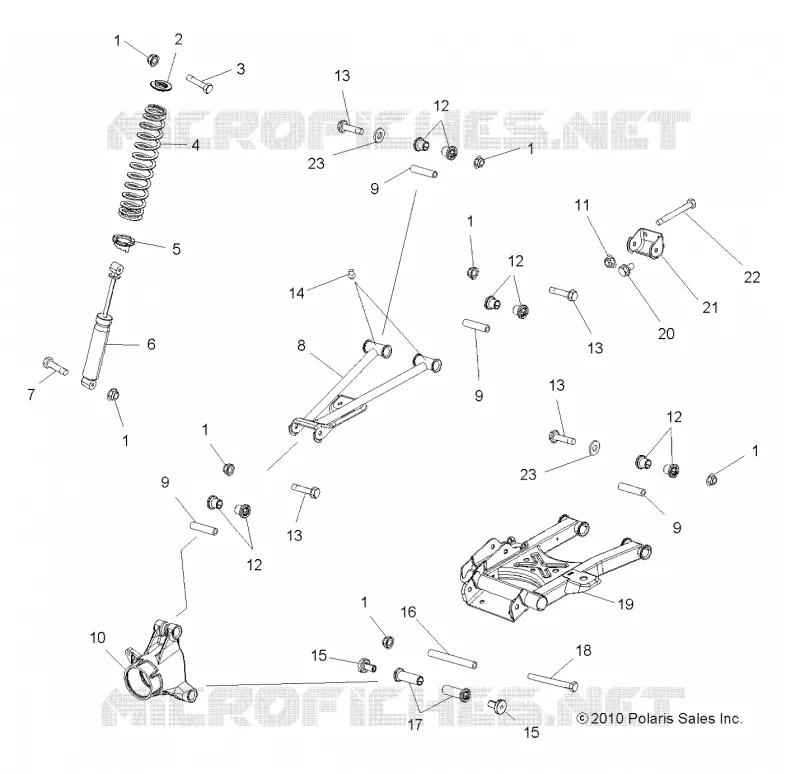

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
