AIR CONDITIONING CONDENSER AND HOSE ROUTINGS for POLARIS POLARIS XPEDITION XP NORTHSTAR from 2024

AIR CONDITIONING DUCTING

AIR CONDITIONING CONDENSER AND HOSE ROUTINGS

1

CONDENSER-HVAC

1244801

$1 454,24 Unit Price incl. VAT

2

ASM-HOSE HEATER

1241453

$230,99 Unit Price incl. VAT

2

HOSE-HEATER FRONT

5417311

$83,99 Unit Price incl. VAT

3

TUBE-HVAC COOLANT 2P

5342561

$173,24 Unit Price incl. VAT

4

SPRINGBAND CLAMP; 27/12; GREEN

7080841

$13,64 Unit Price incl. VAT

5

HOSE-HEATER REAR

5417312

$178,49 Unit Price incl. VAT

6

HOSE-HEATER RETURN

5417313

$27,29 Unit Price incl. VAT

7

HOSE-FRESH AIR

5417314

$27,29 Unit Price incl. VAT

8

HOSE-ASM A/C #10

5417315

$482,99 Unit Price incl. VAT

9

AIR BOX FILTER ASSEMBLY

1262218

$38,42 Unit Price incl. VAT

10

HOSE-ASM A/C #8

5417317

$488,24 Unit Price incl. VAT

11

HOSE-ASM A/C #6 HVAC

5418609

$262,49 Unit Price incl. VAT

12

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$5,24 Unit Price incl. VAT

13

SPRING HOSE CLAMP; .81

7081026

$14,69 Unit Price incl. VAT

14

SCR-HXFL-M10X1.5X30 10.9 ZFB

752133330

Not Available

15

BRACKET-HEATER HOSE;ECOAT

5272002329

Not Available

16

SOCKET HEAD SCREW 8 MM X 1.25 MM X 25 MM

7519859

$10,49 Unit Price incl. VAT

17

BOLT 5/8 LONG TORX PAN HEAD

7518238

$7,34 Unit Price incl. VAT

18

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

19

CLIP-LINE

7081807

$14,69 Unit Price incl. VAT

20

CLIP-ROUTING HVAC

5458511

$7,34 Unit Price incl. VAT

21

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

22

RIVET-POP 5/32(.188-.250)-LF-B

7662408

$2,09 Unit Price incl. VAT

23

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

24

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

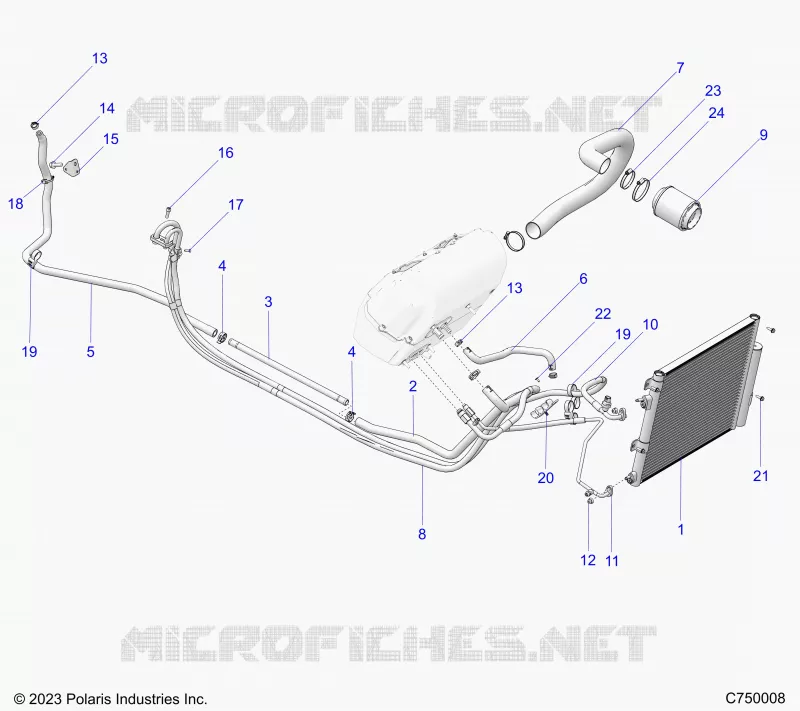

Find the detailed AIR CONDITIONING CONDENSER AND HOSE ROUTINGS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
