1
Engine displacement
500
2
Year
2011
3
Trim
SCRAMBLER 500 4X4 - A11NG50AA
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, MAIN GEARCASE INTERNALS
DRIVE TRAIN, MAIN GEARCASE
-
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
-
ASM-GEARCASE SHAFT 4X4
1332729
9999999
Not Available
1
KNOCK PIPE
3233529
9999999
Not Available
2
GEARCASE LEFT MACHINED
3234036
9999999
Not Available
3
SCREW
3233252
$9,44 Unit Price incl. VAT
4
PIVOT BUSHING
3233527
9999999
Not Available
5
PLUG
3233448
9999999
Not Available
6
WASHER-DRAIN PLUGNYLON
3234034
9999999
Not Available
7
BEARING
3233020
$80,84 Unit Price incl. VAT
8
GEAR-96T HCR(285075)
1332758
9999999
Not Available
9
SHAFT-OUTPUT(352671)
1332762
9999999
Not Available
10
SPROCKET; 33 TOOTH
1332765
9999999
Not Available
11
CHAIN-.375PX.75WX44L(490075)
1332767
$262,49 Unit Price incl. VAT
12
GEARCASE-H/R RH MACH(245713)
1332757
9999999
Not Available
13
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
14
SCREW
3233026
9999999
Not Available
15
CHAIN GUIDE
3233897
$89,24 Unit Price incl. VAT
16
TRIPLE LIP SEAL
3233788
$57,74 Unit Price incl. VAT
17
NYLON WASHER
3233872
9999999
Not Available
18
OIL FILL PLUG
3233711
9999999
Not Available
19
SHAFT SHIFT HI/REV.
3233559
9999999
Not Available
20
O-RING
3233548
9999999
Not Available
21
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
22
BELLCRANK; 1.25
3234148
9999999
Not Available
23
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
24
WASHER
3233040
9999999
Not Available
25
BRACKET INTERLOCK
3233309
9999999
Not Available
26
OIL DEFLECTOR
3233043
9999999
Not Available
27
SCREW-TAPPING W/LOCK WASHER
3233747
9999999
Not Available
28
PIN INTERLOCK
3233308
9999999
Not Available
29
SPRING SHIFT.INTERLOCK
3233550
9999999
Not Available
30
GEAR INDICATOR SWITCH
3234002
9999999
Not Available
31
SCREW
3233749
$10,49 Unit Price incl. VAT
32
BEARING
3233018
$47,24 Unit Price incl. VAT
33
CHAIN-.25PX.40WX46L(490074)
1332766
9999999
Not Available
34
SHAFT-INPUT(285709)
1332760
9999999
Not Available
35
BEARING
3233019
$54,59 Unit Price incl. VAT

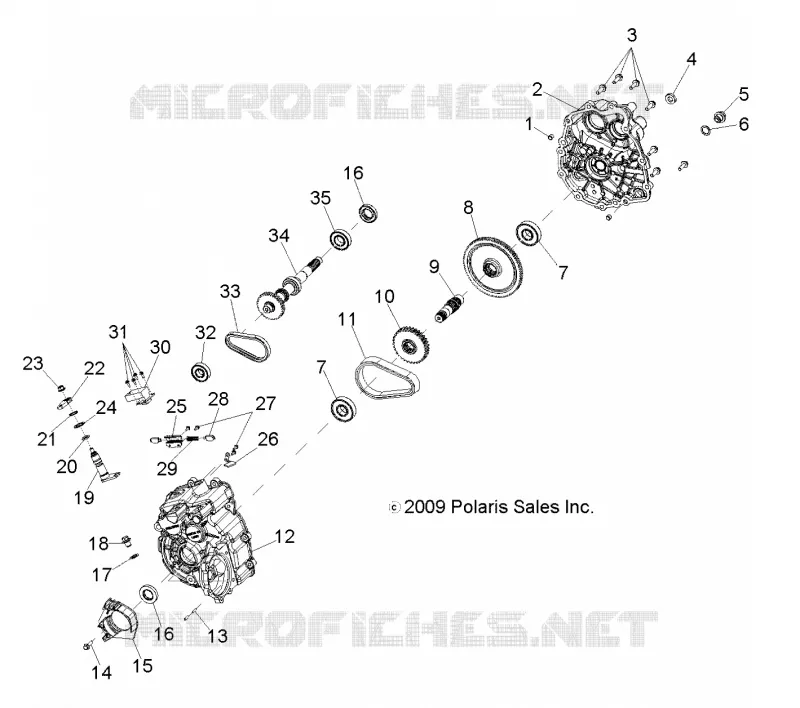

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
