1
Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
REAR SUSPENSION SHOCK (7043938)
5
Parts Diagram
Parts Catalog
REAR SUSPENSION
by
REAR SUSPENSION SHOCK MOUNTING
REAR SUSPENSION SHOCK (7043938)
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
42
43
44
1
SHOCK; REAR; 2.5 IN
7043938
9999999
Not Available
2
PISTON-2.5 IN RES (WER-925205)
1800480
9999999
Not Available
3
SPHERICAL BEARING
1800592
$101,84 Unit Price incl. VAT
4
CLICKER KNOB
1800481
9999999
Not Available
5
SCREW 10X5/8 BTN SS (500603)
1800357
$6,29 Unit Price incl. VAT
6
BUMPER
1800593
$125,99 Unit Price incl. VAT
7
NUT-SPRING 2.5IN (WER-825345)
1800485
9999999
Not Available
8
MOUNT-RES 2.5IN (WER-1125335)
1800488
$167,99 Unit Price incl. VAT
9
CHECK VALVE (1125712)
1800546
9999999
Not Available
10
CLICKER BOLT (1125408)
1800547
9999999
Not Available
11
NUT-7/16 CRIMP
1800164
$17,84 Unit Price incl. VAT
12
BALL .25 (1261250)
1800548
9999999
Not Available
13
NUT-(WER-1125697)
1800492
9999999
Not Available
14
NUT-(WER-1125613)
1800493
9999999
Not Available
15
SHAFT
1800494
9999999
Not Available
16
BODY-2.5IN (WER-1125101)
1800495
9999999
Not Available
17
O-RING
1800497
$10,49 Unit Price incl. VAT
18
O-RING (WER-1125229)
1800498
9999999
Not Available
19
O-RING (WER-1125232)
1800499
9999999
Not Available
20
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
21
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
22
SHRADER VALVE
1800021
9999999
Not Available
23
BLEED SCREW (10)
1800043
$12,59 Unit Price incl. VAT
24
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
25
O-RING
1800508
$10,49 Unit Price incl. VAT
26
O-RING
1800500
$3,66 Unit Price incl. VAT
27
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
28
PISTON BAND
1800509
9999999
Not Available
29
O-RING
1800502
$3,66 Unit Price incl. VAT
30
O-RING
1800503
$3,14 Unit Price incl. VAT
31
BUSHING-SHAFT (WER-220327)
1800504
9999999
Not Available
32
SHAFT SEAL
1800505
9999999
Not Available
33
WIPER
1800506
$83,99 Unit Price incl. VAT
34
RING-RETAINING(WER-1202125)
1800507
$20,99 Unit Price incl. VAT
35
PISTON-2.5IN (WER-825126)
1800486
9999999
Not Available
36
SEAL HEAD ASSEMBLY
1800549
9999999
Not Available
37
BRIDGE PB (1325695)
1800550
9999999
Not Available
38
LOCK NUT PB (1325345)
1800551
9999999
Not Available
39
END CAP;2.5IN (1325207)
1800552
$241,49 Unit Price incl. VAT
40
ADJUSTER KNOB (1325604)
1800553
9999999
Not Available
41
BODY RES;PB (1325601)
1800554
9999999
Not Available
42
SHAFT LOOP
1800555
$440,99 Unit Price incl. VAT
43
BODY LOOP PB (1325148)
1800556
9999999
Not Available
44
SPACER-(WER-1125700)
1800496
9999999
Not Available

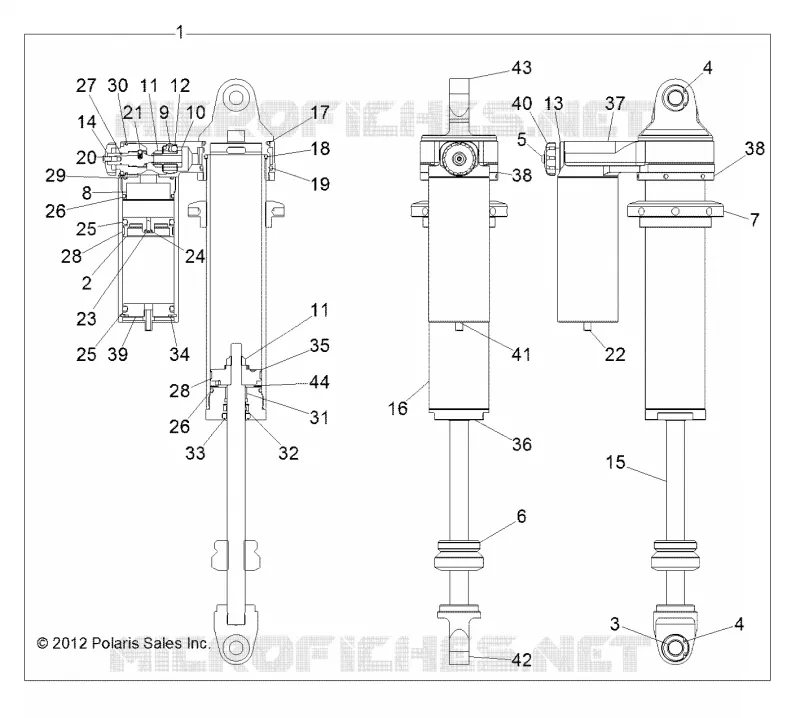

Find the detailed REAR SUSPENSION SHOCK (7043938) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
