1
Engine displacement
autre
2
Year
1995
3
Trim
XLT TOURING - 0952857
4
Parts Catalog
NOSEPAN ASSEMBLY XLT TOURING 0952857 AND EUROPEAN XLT TOURING E952857 (4929172917A011)
5
Parts Diagram
Parts Catalog
IGNITION WIRE HARNESS XLT TOURING 0952857 AND EUROPEAN XLT TOURING E95 (4929172917A010)
by
NOSEPAN ASSEMBLY XLT TOURING 0952857 AND EUROPEAN XLT TOURING E952857 (4929172917A012)
NOSEPAN ASSEMBLY XLT TOURING 0952857 AND EUROPEAN XLT TOURING E952857 (4929172917A011)
1
CONSOLE BASIC
5431467
Not Available
1
CONSOLE EUROPE
5431697
Not Available
2
COVER CONSOLE
5431535
9999999
Not Available
3
PLASTI-LOCK RIVET
7621509
$2,09 Unit Price incl. VAT
4
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
5
SCREW
7512252
9999999
Not Available
6
NUT RETAINER
7542138
9999999
Not Available
7
WASHER
7555792
$9,44 Unit Price incl. VAT
8
SCREW
7512069
9999999
Not Available
9
HOOD LATCH RETAINER
5431502
9999999
Not Available
10
WASHER RUBBER
7555884
9999999
Not Available
11
SCREW
7511861
9999999
Not Available
12
WELL NUT
7541923
$10,49 Unit Price incl. VAT
13
BUMPERSIDE PANEL
5431662
9999999
Not Available
14
SCREW
7512279
$1,56 Unit Price incl. VAT
15
NOSEPAN BLK.
5431899070
Not Available
16
PANEL LH SIDE BLK.
5431742070
Not Available
17
FOAM LH SIDEPANEL
5811076
Not Available
18
RIVET(10)
7621315
9999999
Not Available
19
BUMPER RUBBER STOP
5410843
9999999
Not Available
20
RIVET BURR(50)
7555756
9999999
Not Available
21
RIVET
7621472
$2,09 Unit Price incl. VAT
22
RIVET
7621467
$2,09 Unit Price incl. VAT
23
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
24
BUMPER;LH SIDE;BLK.
5431492070
Not Available
25
PLUG HOLE
5410820
9999999
Not Available
26
COVER F.BUMP.BOTTOM
5431481
9999999
Not Available
27
FOIL F.SHOCK TOWER
5810937
Not Available
28
COVER F.BUMP.TOP BLK.
5431480070
Not Available
29
FOIL SIDE BUMP LOWER
5811085
Not Available
30
FOIL SIDE.SHOCKTOWER
5810939
Not Available
31
FOIL RH PAN
5810908
Not Available
32
FOIL LOW.SIDEPANEL
5811071
Not Available
33
TAPE FOIL 100 CM. (Service)
8360044100
Not Available
34
FOAM-FOIL RH SIDEPANEL
5811070
Not Available
35
DESC NOT_AVAILABLE
5431743070
Not Available
36
FOIL TOP OUT.SIDEPANEL
5811075
Not Available
37
FOIL FR.SIDEPANEL
5811072
Not Available
38
PANEL RH SIDE BLK. ( Incl. 40-33)
2610008070
Not Available
39
FOIL TOP INNER SIDEPANEL
5811074
Not Available
40
FOILSIDE BUMPMIDDLE
5811086
9999999
Not Available
41
FOIL SIDE BUMP UPPER
5811084
Not Available
42
BUMPER;RH SIDE/FOIL;BLK.
2610006070
Not Available
43
FOIL UP.SIDEPANEL
5811073
Not Available

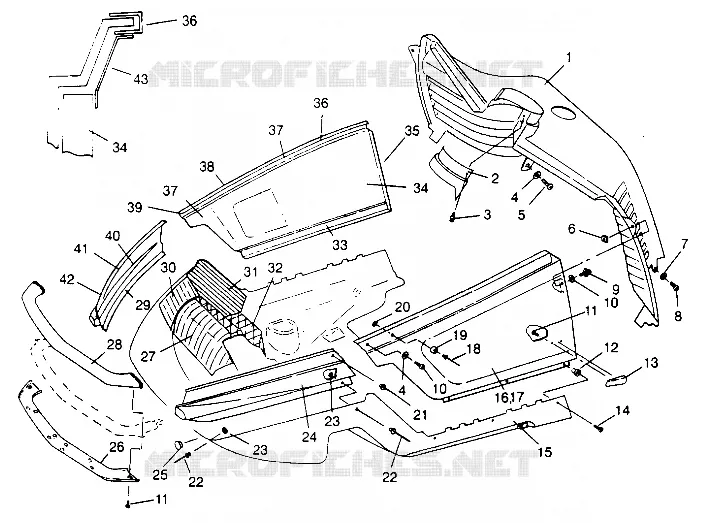

Find the detailed NOSEPAN ASSEMBLY XLT TOURING 0952857 AND EUROPEAN XLT TOURING E952857 (4929172917A011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
