1
Engine displacement
900
2
Year
2005
3
Trim
900 FUSION
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
SKI/SINGLE SKAG
by
SWAY BAR
FRONT SUSPENSION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
10
10
23
24
25
26
27
28
1
2
3
3
3
3
3
3
3
4
4
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
10
10
10
10
10
10
10
23
24
25
25
26
26
26
26
27
28
1
RIVET
7661637
$2,09 Unit Price incl. VAT
2
A-ARM BRACE; FRONT; LOWER
5247372
9999999
Not Available
3
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
4
SCR-3/8-16X3.25 FLG HX GR8-Y
7518384
$6,29 Unit Price incl. VAT
5
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
6
PIVOT SHAFT
5133860
$18,89 Unit Price incl. VAT
7
PIVOT BUSHING
5434932
$11,54 Unit Price incl. VAT
8
KIT-LCA SVC LH
2202934
9999999
Not Available
8
CONTROL ARM KIT LOWER RIGHT
2202935
9999999
Not Available
9
RING-RETAINING 1.25 ID HSNG
7710539
$4,19 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SCR-3/8-16X2.75 HX G5 R
7518276
9999999
Not Available
12
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
13
SWAY BAR SLIDE; 9/16
5435522
9999999
Not Available
14
SCREW
7510504
$10,49 Unit Price incl. VAT
15
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
16
ROD END-1/2;30
7061124
7061145
$99,74 Unit Price incl. VAT
17
SCR-3/8-24X1 3/4;SOCHD CP-Y
7510003
$7,34 Unit Price incl. VAT
18
NUT
7547104
$2,09 Unit Price incl. VAT
19
KIT-UCA SVC RH
2202933
9999999
Not Available
19
CONTROL ARM KIT UPPER LEFT
2202932
9999999
Not Available
20
SCR-3/8-16X2 FLG HX GR5 Z
7518278
$13,64 Unit Price incl. VAT
21
SPRING; FRONT; MEDIUM GLOSS BLACK
7041575067
Not Available
21
IFS COMPRESSION SPRING 120#; INDY RED
7041575293
Not Available
21
SPRING-COMP IFS 120# ANIV GOLD
7041575462
Not Available
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
SPRING-COMP IFS 10.80/100FOXBK
7041576067
Not Available
23
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
24
SCR-1/4-20X7/8-BH-TRX-GR5-Y
7518397
9999999
Not Available
25
STOP-STEERING LH
5631603
9999999
Not Available
25
STOP-STEERING RH
5631604
9999999
Not Available
26
SPINDLE ASSEMBLY RIGHT RED
1822725
9999999
Not Available
26
SPINDLE ASSEMBLY LEFT RED
1822724
9999999
Not Available
26
SPINDLE ASSEMBLY RIGHT BLUE
1822723
9999999
Not Available
26
SPINDLE ASMLHBLUE
1822722
9999999
Not Available
27
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
28
SKI PIVOT BUSHING
5133983
$20,99 Unit Price incl. VAT

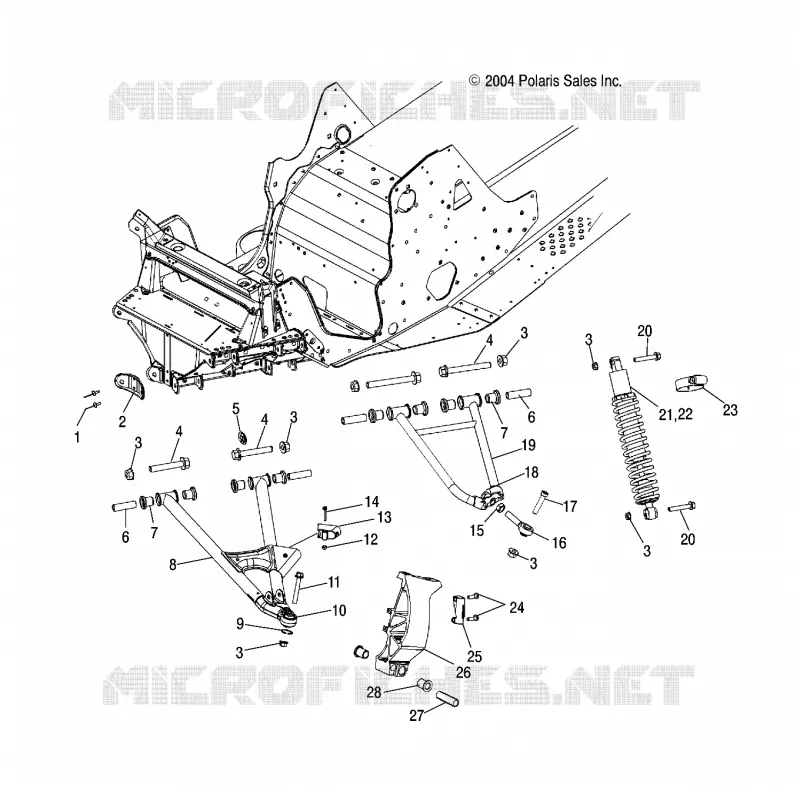

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
