FUEL SYSTEM, FUEL TANK AND PUMP for POLARIS PATRIOT BOOST RMK KHAOS SLASH 155 from 2023

SUSPENSION, FRONT SHOCK TRACK, VELOCITY

FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY

FUEL SYSTEM, FUEL TANK AND PUMP

1

GAS TANK CAP

5450389

$36,74 Unit Price incl. VAT

2

ASM-FUEL TANK MACH

2522623

2522550

$818,99 Unit Price incl. VAT

3

HEX FLANGE NUT; 6 MM X 1.0 MM

7547453

$7,34 Unit Price incl. VAT

4

WASHER

7555935

$4,19 Unit Price incl. VAT

5

SCR-SPCL M6X1.0X20 8.8 ZOD

7520464

$7,34 Unit Price incl. VAT

6

GAS PAD TANK; 101.6 X 640.0

5814056

$26,24 Unit Price incl. VAT

7

K-FUEL PUMP 850T RMK

2209835

2212450

$1 144,80 Unit Price incl. VAT

7

K-FUEL FILTER/GASKET

2209832

$67,19 Unit Price incl. VAT

8

PFA GASKET

5415105

$94,49 Unit Price incl. VAT

9

NUT-PFA

5436628

5145716

$51,23 Unit Price incl. VAT

10

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

11

SCREW

7516823

$5,76 Unit Price incl. VAT

12

O-RING

5411174

$3,14 Unit Price incl. VAT

13

CLIP-SEAT MOUNT

5272686

$13,64 Unit Price incl. VAT

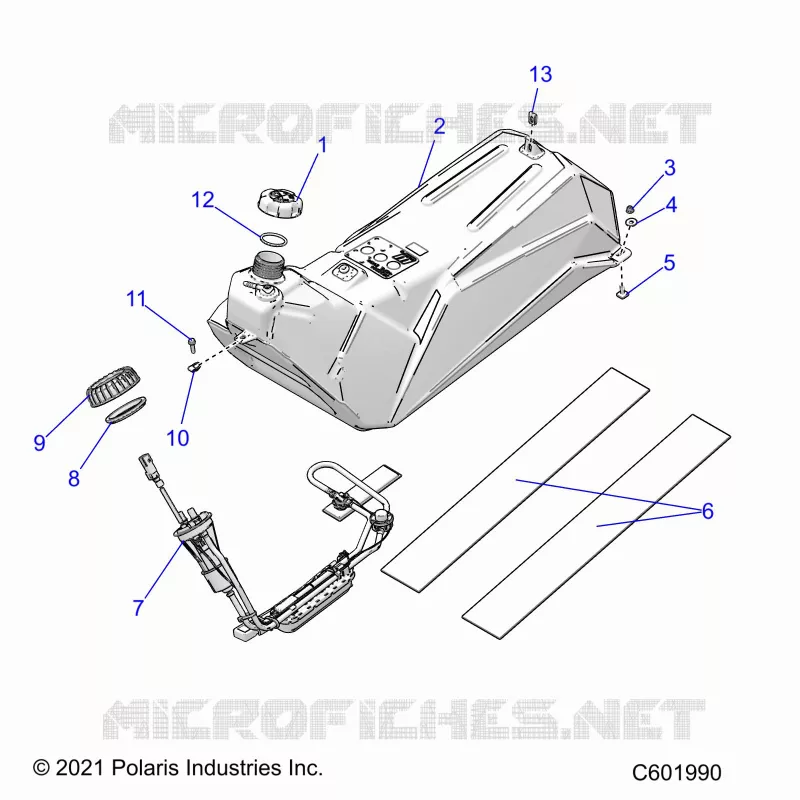

Find the detailed FUEL SYSTEM, FUEL TANK AND PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
