Engine displacement
570
2
Year
2020
3
Trim
RANGER 570, FULL SIZE
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, CAB
by
DRIVE TRAIN, GEAR SELECTOR
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
1
CLAMP-VINYL COATED;1.00IN ID
7081854
$10,49 Unit Price incl. VAT
2
SCREW
7512098
$3,14 Unit Price incl. VAT
3
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
4
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
5
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
6
HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK
7518533
$2,09 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
9
CLUTCH COVER ASSEMBLY; INNER
2634188
$257,24 Unit Price incl. VAT
9
CLUTCH COVER; INNER
5454520
$314,99 Unit Price incl. VAT
10
AIR INLET CLUTCH DUCT
5438891
$52,49 Unit Price incl. VAT
11
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
12
HOSE-CLUTCH INTAKE
5415902
$104,99 Unit Price incl. VAT
13
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
14
DECAL-BELT CAUTION/CHECK
7177469
Not Available
15
SCREW HI/LO M6 X 35
7519330
$7,34 Unit Price incl. VAT
16
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
17
CLUTCH HOSE; AIR OUTLET
5416458
$136,49 Unit Price incl. VAT
18
BRKT-SCREEN BELT
5264754
$62,99 Unit Price incl. VAT
19
NARROW BAND CLAMP; 70-90 MM
7081279
$5,76 Unit Price incl. VAT
20
DECAL-WARN CLUTCH COVER
7175488
Not Available

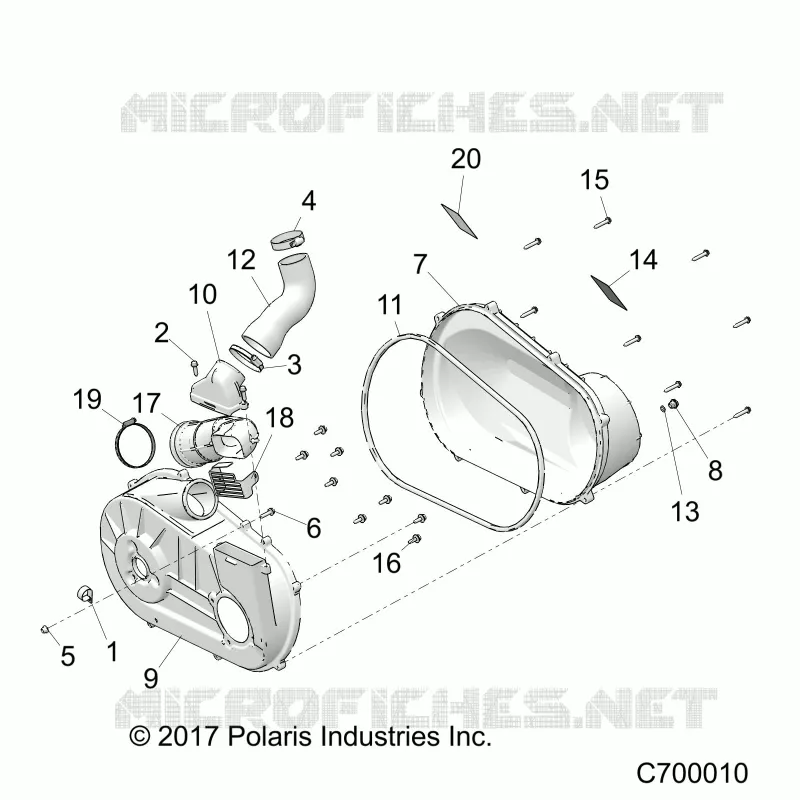

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
