1
Engine displacement
750
2
Year
2006
3
Trim
750 FS / FST CLASSIC
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
COOLING SYSTEM (FST)
by
STEERING
STEERING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
-
1
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
-
ASM-CHNL STRG/SHOC MNT W/BRGS
1014894
9990000
Not Available
1
BALL BEARING #6805; 25 MM X 37 MM
3514481
9999999
Not Available
2
CHANNEL-STRG/SHOCK
5133859
9999999
Not Available
3
SPACER-TUBE PITMAN SPINDLE
5134705
9999999
Not Available
4
WELD-PITMAN ARM
1822947
9999999
Not Available
5
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
6
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
7
ARM-STRG PITMANUPPERMAN
5134697
9999999
Not Available
8
ROD END-RADIUS LH 1/2
7061066
9999999
Not Available
9
BOLT
7515540
$9,44 Unit Price incl. VAT
10
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
11
ROD-DRAGLINK BLK
5334397067
Not Available
12
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
13
ROD END; RIGHT; 3/8-24
7061084
$99,74 Unit Price incl. VAT
14
POST STEERING; MAN; MEDIUM GLOSS BLACK
1821472067
Not Available
15
NYLOK NUT; 7-16-20
7547066
$3,14 Unit Price incl. VAT
16
WASHER
7555883
$7,34 Unit Price incl. VAT
17
SCR-3/8-16X1.75 FLG HX GRD5-Y
7518354
9999999
Not Available

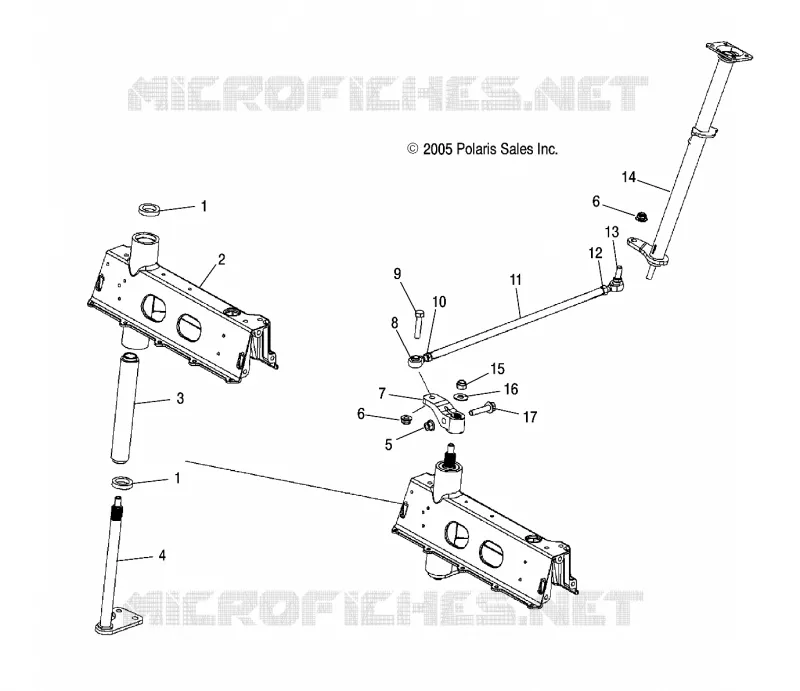

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
