COOLING SYSTEM AND WATER PUMP for POLARIS SCRAMBLER 1000 XP HO EPS INTL - A14GH9EFW from 2014

COOLING SYSTEM AND WATER PUMP

1

STATOR KIT COVER WITH WATERPUMP

2204781

9999999

Not Available

2

SCR-M6X1.0X25 HXHD CLR COAT

7518855

7527861

$5,24 Unit Price incl. VAT

3

KIT-WATERPUMP COVER W/FTNG

2204955

$115,49 Unit Price incl. VAT

4

WATEPRUMP COVER GASKET

5412954

$57,74 Unit Price incl. VAT

5

HEX HEAD SCREW 6 MM X 1.0 MM X 12 MM

7518854

7527860

$5,24 Unit Price incl. VAT

6

WASHER-M6 FLAT

7556451

7556094

$9,44 Unit Price incl. VAT

7

WATER PUMP IMPELLER; 60 MM

5632427

$78,74 Unit Price incl. VAT

8

WATER PUMP SEAL; 16 MM

3610136

3610450

Not Available

9

WATER TRANSFER TUBE; Q50/60

5334925

$157,49 Unit Price incl. VAT

10

THERMOSTAT COVER

5632606

$83,99 Unit Price incl. VAT

11

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

12

180 DEGREE THERMOSTAT

7052561

$83,99 Unit Price incl. VAT

12

THERMOSTAT SEAL

5413948

$14,69 Unit Price incl. VAT

13

COUPLER-SPLINE INT WP BEARING

5137242

9999999

Not Available

14

O-RING-12.37X2.62 VITON

5414286

5417753

$3,14 Unit Price incl. VAT

15

BEARING WITH SHAFT WATERPUMP OPC

3514633

9999999

Not Available

16

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

17

O-RING .864 X 1.00 X .07

5412955

$13,64 Unit Price incl. VAT

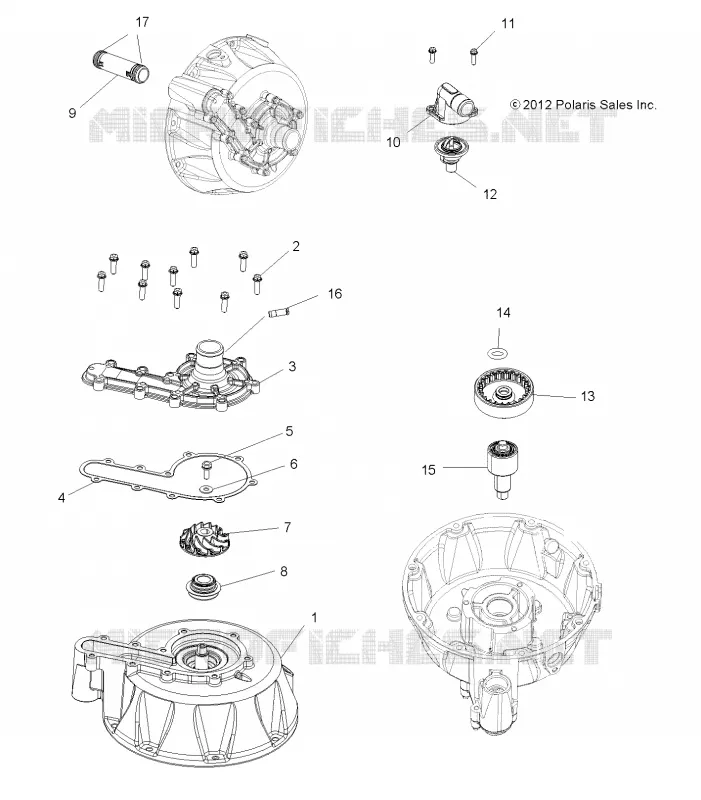

Find the detailed COOLING SYSTEM AND WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
