STEERING DRAG LINK for POLARIS 750 FS WIDETRAK IQ from 2011

STEERING DRAG LINK

1

BALL BEARING #6805; 25 MM X 37 MM

3514481

9999999

Not Available

2

SCR-3/8-16X1.75 FLG HX GRD5-Y

7518354

9999999

Not Available

3

SPACER-TUBE PITMAN SPINDLE

5134705

9999999

Not Available

4

WELD-PITMAN ARM

1822947

9999999

Not Available

5

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

6

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

7

ARM-STRG PITMANUPPERMAN

5134697

9999999

Not Available

8

ROD END; LEFT

7060166

$99,74 Unit Price incl. VAT

9

BOLT

7515540

$9,44 Unit Price incl. VAT

10

NUT LH (10)

7542424

$1,56 Unit Price incl. VAT

11

ROD-DRAGLINK W/T SWEDGED

5336172

$83,99 Unit Price incl. VAT

12

NUT HEX RH(10)

7542401

$4,19 Unit Price incl. VAT

13

ROD END; RIGHT; 3/8-24

7061084

$99,74 Unit Price incl. VAT

14

NYLOK NUT; 7-16-20

7547066

$3,14 Unit Price incl. VAT

15

WASHER

7555883

$7,34 Unit Price incl. VAT

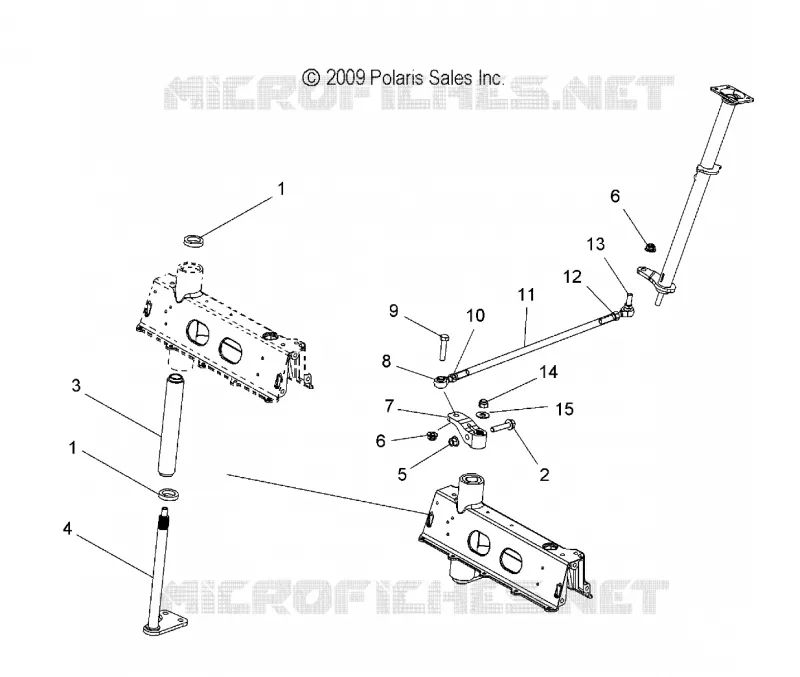

Find the detailed STEERING DRAG LINK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
