1
Engine displacement
900
2
Year
2015
3
Trim
RZR 900 60 INCH EPS INTL
4
Parts Catalog
REAR RACK AND FENDERS
5
Parts Diagram
Parts Catalog
FRONT BUMPER
by
BRAKE LINES AND MASTER CYLINDER
REAR RACK AND FENDERS
1
2
3
3
4
5
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
1
FENDER; REAR; LEFT HAND; BLACK PEARL
2635493666
Not Available
2
FENDER; REAR; RIGHT; BLACK PEARL
2635494666
Not Available
3
DASH TRIM CLIP
7519806
$7,34 Unit Price incl. VAT
4
REAR LEFT FENDER FLARE; GLOSS BLACK
5439766070
Not Available
5
REAR RIGHT FENDER FLARE; GLOSS BLACK
5439767070
Not Available
6
BOLT
7519650
$7,34 Unit Price incl. VAT
7
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
8
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
9
HOUSING-AIR INTAKE;BLK
5451190070
Not Available
10
PLUG-REAR FASCIA LH BLK
5415121070
Not Available
11
PLUG-REAR FASCIA RH BLK
5415122070
Not Available
12
FASCIA-REAR GLOSS BLACK
5451117070
Not Available
13
ASM-REAR BOX;BLK
2635463070
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHIELD-SIDE BOX
5814081
5263555
$73,49 Unit Price incl. VAT
16
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
17
INTAKE COVER GRILL; LEFT; GLOSS BLACK
5451188070
Not Available
18
INTAKE GRILL COVER; RIGHT; GLOSS BLACK
5451189070
Not Available
19
SCREW
7512026
$2,09 Unit Price incl. VAT
20
COVER PLATE LATCH; GLOSS BLACK
5450510070
Not Available
21
SEAT LATCH SPRING
7081466
$57,74 Unit Price incl. VAT
22
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
23
BOX PANEL ACCESS ASSEMBLY
2635389
9999999
Not Available
24
SEAT LATCH LEVER
5437121
$9,44 Unit Price incl. VAT
25
PANEL-BOX ACCESS BLK
5451116070
Not Available

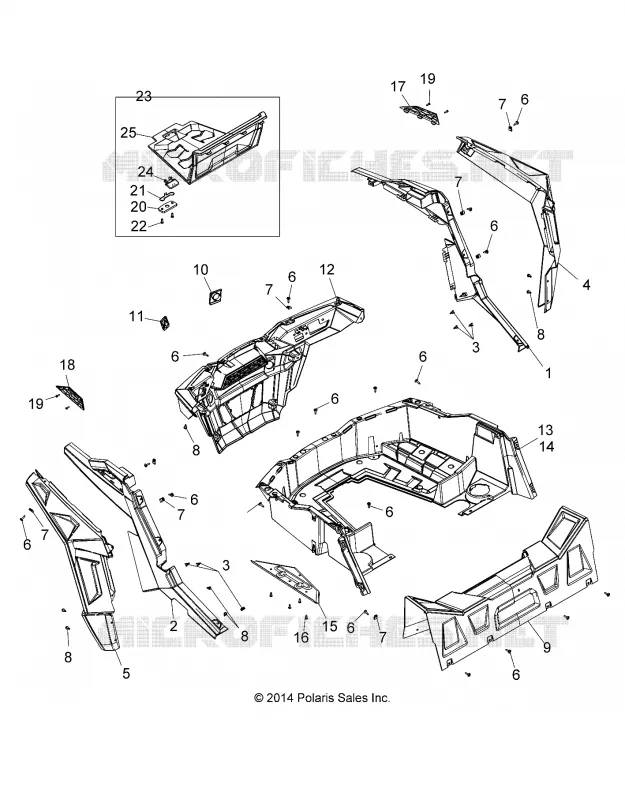

Find the detailed REAR RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
