1
Engine displacement
700
2
Year
2002
3
Trim
700 SKS
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
CYLINDER
CRANKCASE
1
2
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
1
2
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
1
STUD CYL.FLANGE 152MM SPS
5131677
9999999
Not Available
2
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
3
CLAMP
7080603
$3,14 Unit Price incl. VAT
4
CHECK VALVE; 90 DEG
7051020
$68,24 Unit Price incl. VAT
5
KIT-CRANKCASE 1202241
2201930
9999999
Not Available
6
O-RING
5411125
9999999
Not Available
7
MANIFOLD WATER INLET
5630610
9999999
Not Available
8
RETAINER-INLET WATER MANIFOLD
5243431
9999999
Not Available
9
SCREW
7516736
9999999
Not Available
10
HOSE
845006804
Not Available
11
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
12
FLANGED SEAL
5411394
5415026
$41,99 Unit Price incl. VAT
13
PLUG
7051529
9999999
Not Available
14
SCREW
7516919
9999999
Not Available
15
SCREW
7516732
$3,14 Unit Price incl. VAT
16
RING RETAINING
7710441
9999999
Not Available
17
FITTING
7052145
$17,84 Unit Price incl. VAT
18
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
19
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
20
VALVE CHECK
7052160
9999999
Not Available
21
SCREW
7517319
9999999
Not Available

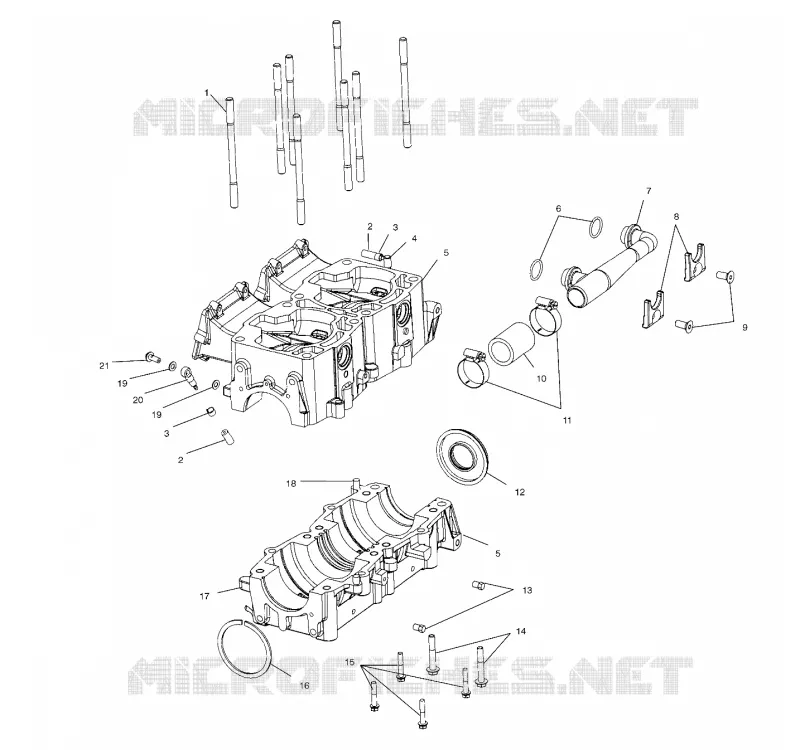

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
