SUSPENSION, RAIL BEAM MOUNTING, LH/RH for POLARIS PATRIOT BOOST RMK KHAOS SLASH 165 from 2024

ELECTRICAL, BATTERY, MANUAL START POWER UP COMPONENTS

SUSPENSION, RAIL BEAM MOUNTING, LH/RH

1

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$6,29 Unit Price incl. VAT

2

WASHER-M5.3X14X1.2 ZOD

7556470

$4,19 Unit Price incl. VAT

3

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$6,29 Unit Price incl. VAT

4

LINER-LOW PROFILE BUMPER

5451787

$12,59 Unit Price incl. VAT

5

HOLLOW TALL BUMPER

5415327

$27,29 Unit Price incl. VAT

6

K-SCRATCHER RMK

2890644

$146,99 Unit Price incl. VAT

7

HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM

7519133

$3,14 Unit Price incl. VAT

8

ASM-RAIL 165 SVC LH NAT

1545073309

Not Available

8

ASM-RAIL 165 SVC RH PLUM CRZ

1545074784

Not Available

8

ASM-RAIL 165 SVC LH RAD GRN

1545073887

Not Available

8

ASM-RAIL 165 SVC RH LLM

1545074801

Not Available

8

ASM-RAIL 165 SVC LH BLK

1545073067

Not Available

8

ASM-RAIL 165 SVC LH LLM

1545073801

Not Available

8

ASM-RAIL 165 SVC RH ORG

1545074647

Not Available

8

ASM-RAIL 165 SVC RH BLK

1545074067

Not Available

8

ASM-RAIL 165 SVC RH NAT

1545074309

Not Available

8

ASM-RAIL 165 SVC LH PLUM CRZ

1545073784

Not Available

8

ASM-RAIL 165 SVC RH RAD GRN

1545074887

Not Available

8

ASM-RAIL 165 SVC LH ORG

1545073647

Not Available

9

BUMPER-JOUNCE REAR;COIL-OVER

5522056

$26,24 Unit Price incl. VAT

10

BUMPER LINER

5432946

$19,94 Unit Price incl. VAT

11

HEX SCREW; 10 MM X 1.5 MM X 100 MM

7520083

$23,09 Unit Price incl. VAT

12

HEX NUT; 10 MM X 1.5 MM

7547707

$7,34 Unit Price incl. VAT

13

BLOCK-IDLER BOLT ADJ METRIC

5139435

$26,24 Unit Price incl. VAT

14

RIVET

7621501

$4,19 Unit Price incl. VAT

15

HYFAX-165 LWT BLK

5526513070

Not Available

16

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

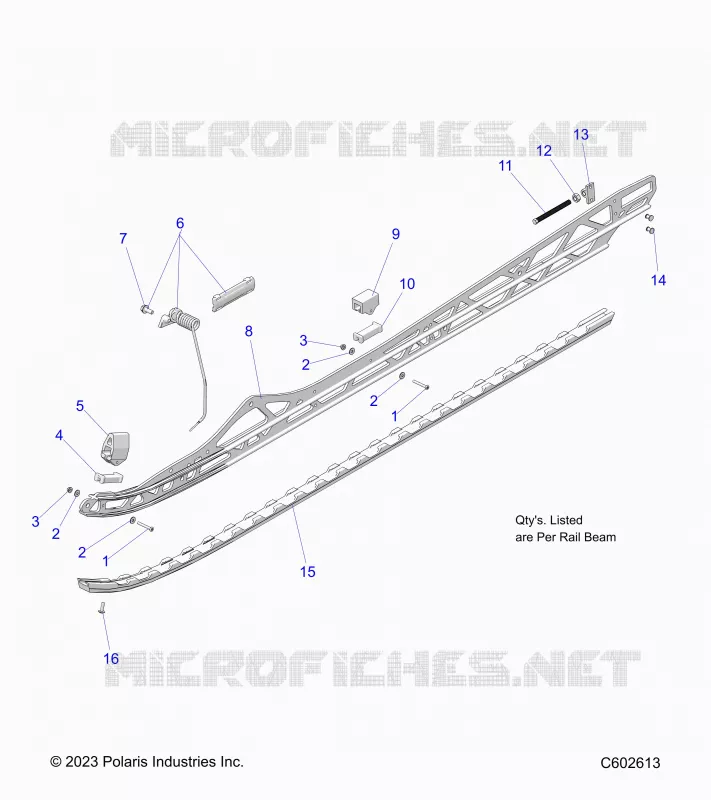

Find the detailed SUSPENSION, RAIL BEAM MOUNTING, LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
