FRONT SUSPENSION A-ARMS for POLARIS SCRAMBLER XP 1000 EU from 2018

FRONT SUSPENSION A-ARMS

1

ARM CONTROL; FRONT; UPPER; LEFT; MT BLK

1019808458

Not Available

1

ARM CONTROL; FRONT; UPPER; RIGHT; MT BLK

1019809458

Not Available

2

ARM CONTROL; FRONT; LOWER; LEFT; MT BLK

1019810458

Not Available

2

ARM CONTROL; FRONT; LOWER; RIGHT; MT BLK

1019811458

Not Available

3

EXTERNAL RETAINER RING

7710533

$4,19 Unit Price incl. VAT

4

LOWER ARM BALL JOINT

7061220

$141,74 Unit Price incl. VAT

5

NUT-M8X1.25C10 HX NYL DIN982 Z

7547405

$2,09 Unit Price incl. VAT

6

SCR-M8X1.25X65-HX/FL-Y CL 10.9

7519212

$9,44 Unit Price incl. VAT

7

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

8

HD BUSHING W/ SEAL ASSEMBLY(4)

1543367

$19,94 Unit Price incl. VAT

9

A-ARM SHAFT

5137346

$31,49 Unit Price incl. VAT

10

BOLT 10 MM X 1.5 MM X 85

7518466

$9,44 Unit Price incl. VAT

11

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

12

CV SHIELD; FRONT; RIGHT; GLOSS BLACK

5436658070

Not Available

12

CV SHIELD; FRONT; LEFT; GLOSS BLACK

5436657070

Not Available

13

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

14

WASHER-M8 FW STL THRU-HRD

7556557

$2,09 Unit Price incl. VAT

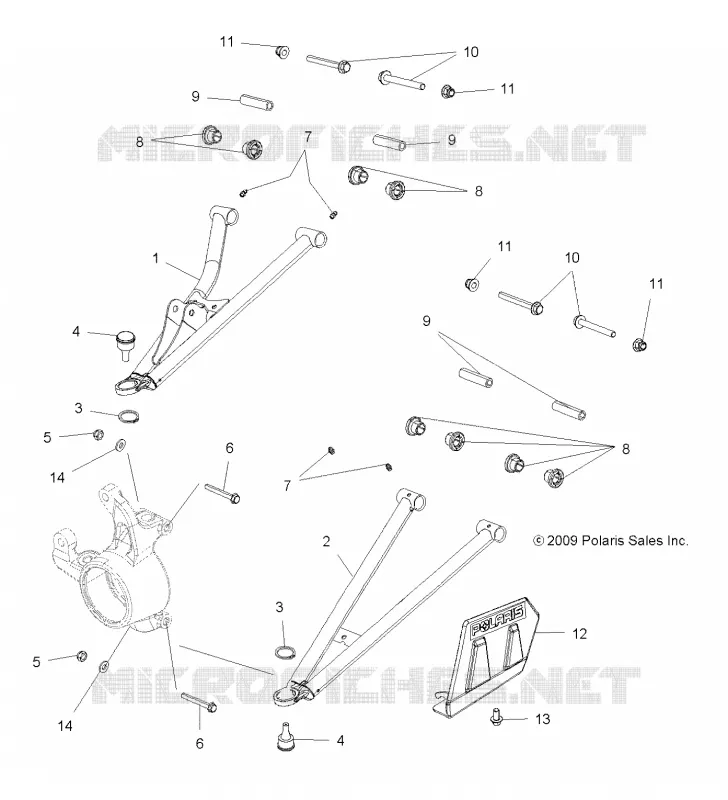

Find the detailed FRONT SUSPENSION A-ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
