Parts Catalog
FRONT SUSPENSION A-ARMS
5
Parts Diagram
Parts Catalog
CHASSIS, FRONT CAB SUPPORTS
by
ENGINE, VALVE COVER
FRONT SUSPENSION A-ARMS
1
2
3
4
1
WELD-UCA FRONT 55 LH RED
1025579293
Not Available
2
WELD-UCA FRONT 55 RH RED
1025580293
Not Available
3
WELD-LCA FRONT 55 LH RED
1023399293
Not Available
4
WELD-LCA FRONT 55 RH RED
1023400293
Not Available

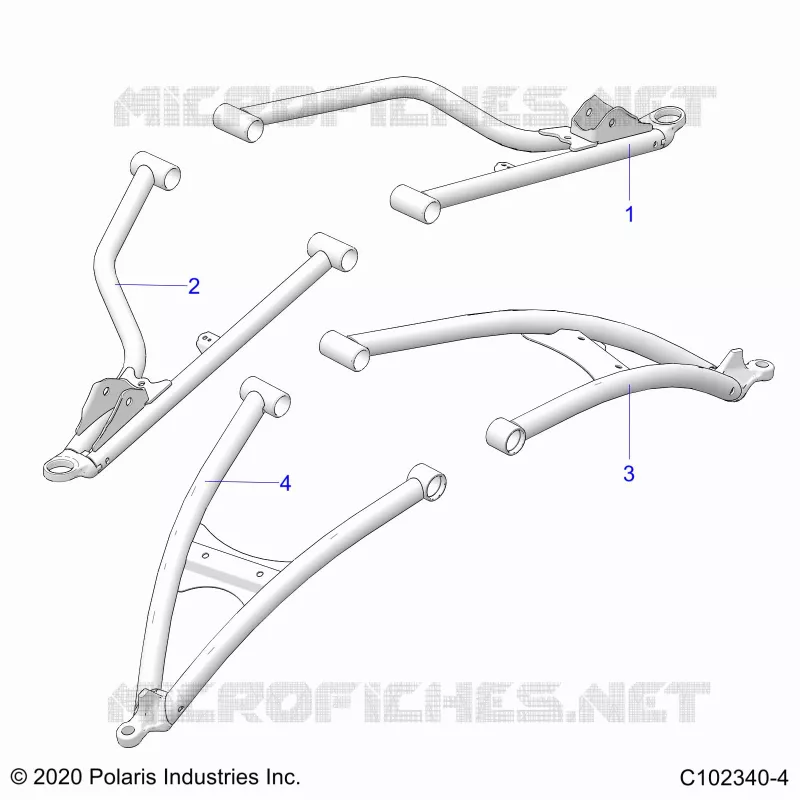

Find the detailed FRONT SUSPENSION A-ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
