DRIVE TRAIN, GEAR SELECTOR for POLARIS RANGER XD 1500 NORTHSTAR RC CREW from 2024

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, HEAT SHIELDS

DRIVE TRAIN, GEAR SELECTOR

1

ASM-LEVER DISCONNECT

7082972

$115,49 Unit Price incl. VAT

2

ROD-DISCONNECT

5144197

9999999

Not Available

3

REACTION BLOCK

5458960

9999999

Not Available

4

LOCKING PAWL

5639428

9999999

Not Available

5

HANDLE-DISCONNECT

5465338

$29,39 Unit Price incl. VAT

6

BOLT-M6X1.0X25 TORX PNHD BLK

7518535

$7,34 Unit Price incl. VAT

7

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

8

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

9

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519156

$3,14 Unit Price incl. VAT

10

CLEVIS PIN; 1/4 X 3/4

7661843

$4,19 Unit Price incl. VAT

11

CLIP PIN; 14 MM

7661140

$2,09 Unit Price incl. VAT

12

COVER-SHIFT

5465362

$29,39 Unit Price incl. VAT

13

SCREW

7512024

$9,44 Unit Price incl. VAT

14

KNOB-GEAR SELECTOR SHIFT

5459024

$10,49 Unit Price incl. VAT

15

SCR-#10X1/2-HI/LO-PN-T25 TRX-M

7519091

$6,29 Unit Price incl. VAT

16

SHIFT-LEVER CAST BLK

5639200458

Not Available

17

GROMMET-SHIFTER

5418042

$16,79 Unit Price incl. VAT

18

PEDAL BUSHING PIVOT

5439274

$24,14 Unit Price incl. VAT

19

E-RING

7710901

$15,74 Unit Price incl. VAT

20

LATCH-INTERLOCK CAST

5639653

$26,24 Unit Price incl. VAT

21

RING-RETAINING E CLIP 7.0

7710701

$9,44 Unit Price incl. VAT

22

FLANGE BEARING; 8 MM X 12 MM X 8 MM

3515150

9999999

Not Available

23

INTERLOCK-SOLENOID

4082120

$283,49 Unit Price incl. VAT

24

ISOLATOR-INTERLOCK

5418523

Not Available

25

WELD-INTERLOCK BRKT;BLK

5274733329

Not Available

26

GROMMET-SHIFT CABLE

5418041

$24,14 Unit Price incl. VAT

27

NYLOK NUT; 8 MM X 1.25 MM

7547144

$6,29 Unit Price incl. VAT

28

CABLE-SHIFT CREW

7082992

$293,99 Unit Price incl. VAT

29

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

30

HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK

7518533

$2,09 Unit Price incl. VAT

31

ASM-LINKAGE SHIFTER 1500

1027314

1029317

$83,99 Unit Price incl. VAT

32

WELD-SHIFTER BELLCRANK BLK

1028828329

Not Available

33

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

34

CABLE-DISC CREW

7082987

$246,74 Unit Price incl. VAT

35

CLIP FIR-TREE;6.5X12.5MM

7082928

$6,29 Unit Price incl. VAT

36

WSHR-6.4X18.0X1.6 ZC

7556565

$4,19 Unit Price incl. VAT

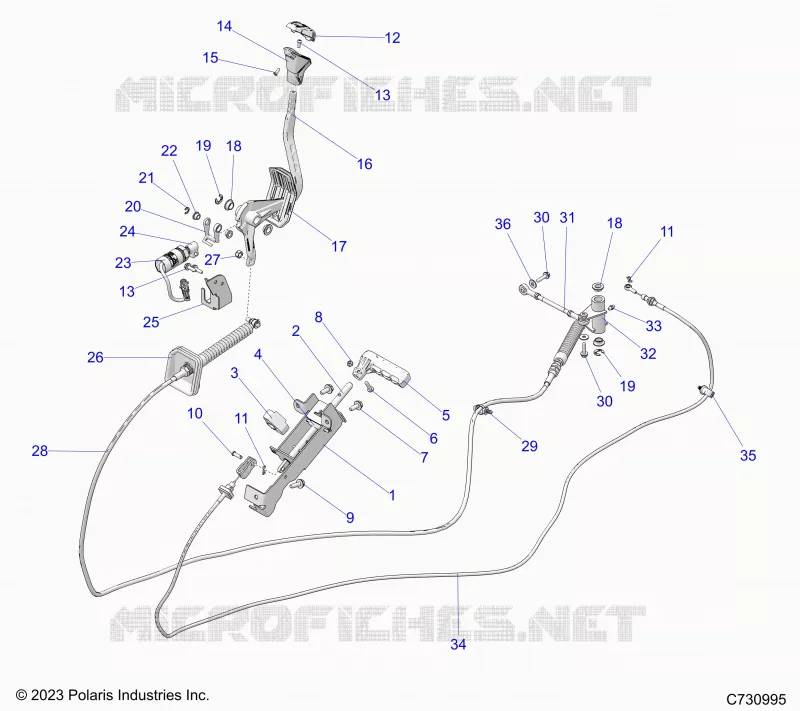

Find the detailed DRIVE TRAIN, GEAR SELECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
