1
Engine displacement
440
2
Year
1996
3
Trim
440 XCR - 0961660
4
Parts Catalog
STEERING 440 XCR 0961660 (4932113211B005)
5
Parts Diagram
Parts Catalog
STEERING
by
COOLING SYSTEM 440 XCR 0961660 (4932113211B006)
STEERING 440 XCR 0961660 (4932113211B005)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
18
18
18
19
20
21
22
22
22
22
22
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
1
CLIP
7080278
9999999
Not Available
2
HOOP STEERING
1011513067
Not Available
3
RIVET
7661637
$2,09 Unit Price incl. VAT
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
BOLT-CARRIAGE
7512275
9999999
Not Available
6
STOP TORQUE
1012411067
Not Available
7
NUT JAM
7542432
$7,34 Unit Price incl. VAT
8
MT;RUBBER;TORQUE STOP
3110041
9999999
Not Available
9
SCREW
7512082
9999999
Not Available
10
PLATE BOOT
5211574067
Not Available
11
HI-ANGLE ROD END; RIGHT; 3/8
7060174
$99,74 Unit Price incl. VAT
12
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
13
BOOT TIE ROD
5410954
Not Available
14
TIEROD BLK.
5020794067
Not Available
15
INSERT; BRASS
7541932
9999999
Not Available
16
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
17
END ROD; LEFT
7060164
$99,74 Unit Price incl. VAT
18
NUT LOCK
7542403
9999999
Not Available
19
IDLER ARM ASM.
1822242
9999999
Not Available
20
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
21
ARM PITMAN ASM.
1822241
Not Available
22
ROD END; RIGHT
7060165
$99,74 Unit Price incl. VAT
22
END ROD; LEFT
7060164
$99,74 Unit Price incl. VAT
23
BOLT
7515528
$15,74 Unit Price incl. VAT
24
RACK ASMSTRG.
1822245
9999999
Not Available
25
SPACER
5010342
9999999
Not Available
26
WASHER
7555832
$4,19 Unit Price incl. VAT
27
SCREW
7515415
9999999
Not Available
28
BOLT
7512551
9999999
Not Available
29
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
30
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
31
O-RING
5410955
Not Available
32
SPACER
5010341
Not Available
33
WASHER
7555883
$7,34 Unit Price incl. VAT
34
NUT FLEXLOCK
7542503
9999999
Not Available
35
BOLT
7512404
$7,34 Unit Price incl. VAT
36
ROD DRAG LINK
5333321
Not Available
37
FITTING LUB/VEN
7080561
9999999
Not Available
38
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
39
BOLT-CARRIAGE
7512263
9999999
Not Available
40
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT

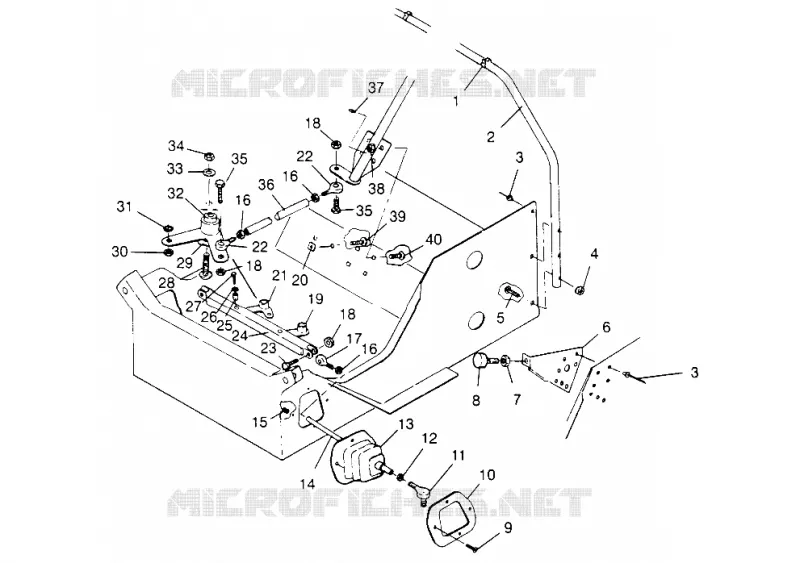

Find the detailed STEERING 440 XCR 0961660 (4932113211B005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
