1
Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
HOOD AND FRONT BODY WORK
5
Parts Diagram
Parts Catalog
PASSENGER GRAB BAR
by
REAR BUMPER
HOOD AND FRONT BODY WORK
1
2
3
4
5
5
6
7
8
8
9
10
11
11
11
12
13
14
14
14
1
CENTER ACCESS HOOD STEALTH BLACK
5438581464
Not Available
2
LATCH 1/4 TURN
7081500
$10,49 Unit Price incl. VAT
3
WASHER
7555919
$7,34 Unit Price incl. VAT
4
LATCH GROMMET
5413428
$6,29 Unit Price incl. VAT
5
U-TYPE NUT; 1/4-20
7670145
9999999
Not Available
6
HOOD ASSEMBLY; STEALTH BLACK
2634053464
Not Available
7
PANEL-HOOD RETENTION
5439182
9999999
Not Available
8
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
9
FENDER FLARE FRONT LEFT WIDE GLOSS BLACK
5438727070
Not Available
10
FENDER FLARE FRT RIGHT WIDE GLOSS BLACK
5438728070
Not Available
11
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
12
MUD SHIELD; FRONT; LEFT
5438735
9999999
Not Available
13
MUD SHIELD; FRONT; RIGHT
5438736
9999999
Not Available
14
SCR-1/4-20X1.75 TR/TX-M
7518504
$3,14 Unit Price incl. VAT

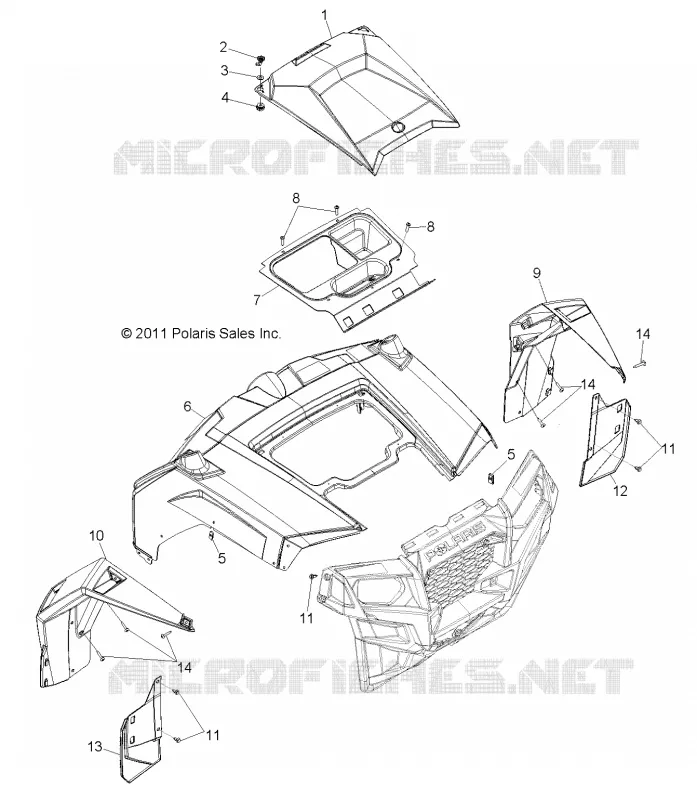

Find the detailed HOOD AND FRONT BODY WORK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
