WISHBONES for POLARIS MAGNUM 325 4X4 - A00CD32CA from 2000

WISHBONES

1

NUT LOCK

7542403

9999999

Not Available

2

BUSHING

5333367

9999999

Not Available

3

TIE ROD 1/2-20X13.4 ASM.

1820805

1822852

$246,74 Unit Price incl. VAT

3

TIEROD ASM;1/2-20X13.40

1820567

2201741

$309,74 Unit Price incl. VAT

4

SEAL BOOT ROD END 1/2 IN

5411291

5412928

$20,99 Unit Price incl. VAT

5

ROD END;RH

7061034

7061139

$115,49 Unit Price incl. VAT

6

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

7

TIE ROD

5020926

$83,99 Unit Price incl. VAT

8

NUT JAM; LEFT

7547028

$4,19 Unit Price incl. VAT

9

ROD END;LH

7061033

2201743

$115,49 Unit Price incl. VAT

9

ROD END 10MM 1/2-20LH 42 DEG

7061054

7061138

$104,99 Unit Price incl. VAT

10

BOOT SEAL ROD END 10MM

5411920

5412929

$20,99 Unit Price incl. VAT

11

BOLT-M10X1.25X57 HX WASH HD

7517674

7517909

$10,49 Unit Price incl. VAT

12

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

12

WASHER

7556099

$3,14 Unit Price incl. VAT

13

NUT CASTLE(10)

7546904

9999999

Not Available

14

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

15

BALL-JOINT 52 DEG

7080927

7061306

$52,49 Unit Price incl. VAT

16

BALL JOINT BRACKET

5211121

$62,99 Unit Price incl. VAT

17

SOCKET BOLT

7512284

$2,09 Unit Price incl. VAT

18

BOOT; RUBBER

5410548

5412658

$9,44 Unit Price incl. VAT

19

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

20

SHIELD RH CV JOINT

5431149

9999999

Not Available

20

SHIELD LH CV JOINT

5431150

9999999

Not Available

21

SCREW 10-24X5/8 (10)

7517756

$2,09 Unit Price incl. VAT

22

BUSHING A ARM LONG

5433066

5436973

$9,44 Unit Price incl. VAT

23

A-ARM SPACER BUSHING

5020677

$19,94 Unit Price incl. VAT

24

SHAFT; A-ARM

5020681

5133806

$52,49 Unit Price incl. VAT

25

A-FRAME KIT RH (1541445)

2201610

9999999

Not Available

25

A-FRAME KIT LH (1541444)

2201609

2202282

$257,24 Unit Price incl. VAT

26

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

27

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

28

SCREW

7512492

$2,09 Unit Price incl. VAT

29

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

30

BOLT

7517527

9999999

Not Available

31

SCREW

7515415

9999999

Not Available

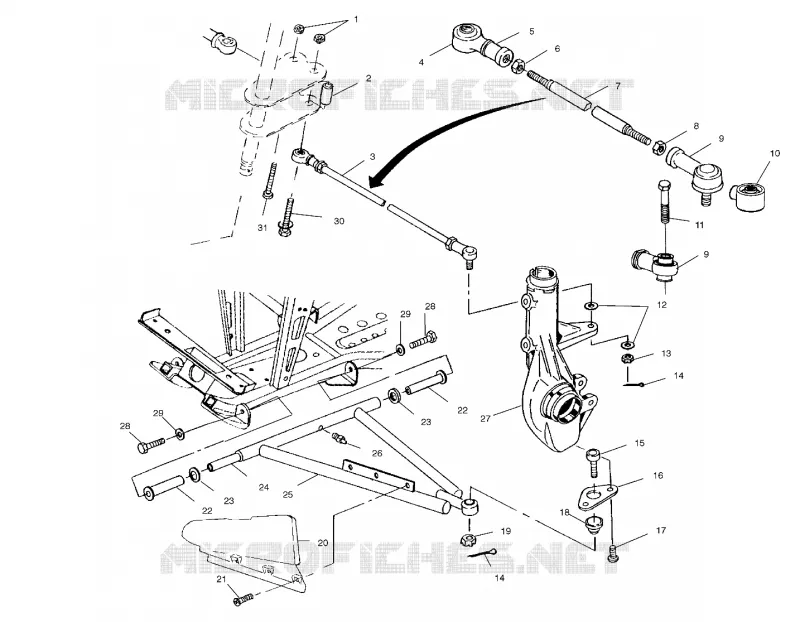

Find the detailed WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
