DRIVE TRAIN, GEARCASE (1 OF 2) for POLARIS 600 WIDETRAK IQ from 2010

DRIVE TRAIN, DRIVE SHAFT ASM. AND JACKSHAFT ASM.

DRIVE TRAIN, GEARCASE (2 OF 2)

DRIVE TRAIN, GEARCASE (1 OF 2)

-

BASIC GEARCASE ASSEMBLY

1332776

9999999

Not Available

1

DUAL LIP SEAL; .0984 X 1.500 X .25

3610134

$73,49 Unit Price incl. VAT

2

SCR-1/4-20X1 HXFLG HD SERR-Y

7518785

$4,19 Unit Price incl. VAT

3

BALL DETENT (10)

7080310

$10,49 Unit Price incl. VAT

4

DETENT SHIFTER SPRING

7041483

9999999

Not Available

5

DETENT-EXTEN .750 9/16 HEX

5135953

9999999

Not Available

6

GEARCASE; RIGHT

3234474

9999999

Not Available

7

KEY-1/8X1/4

7710608

$6,29 Unit Price incl. VAT

8

SHIFT-INDEX WDT

3234121

9999999

Not Available

9

SPRING-TORSION W/T .100 SQWIRE

7043326

$47,24 Unit Price incl. VAT

10

SHIFT FORK;LOW

3233503

$220,49 Unit Price incl. VAT

11

PIN-DOWEL .25X..625

7661957

$4,19 Unit Price incl. VAT

12

SHIFT-DRUM WDT

3234120

9999999

Not Available

13

SHIFT FORK HIGH

3233505

9999999

Not Available

14

SHAFT-SHIFT LOW MAP

5136984

9999999

Not Available

15

O-RING

5410440

9999999

Not Available

16

KNOCK PIPE-.375X.286X.370

5135952

9999999

Not Available

17

BALL BEARING; 20 X 47 X 14

3514594

$11,54 Unit Price incl. VAT

18

SPACER-1.375X.860X.155

5135971

$11,54 Unit Price incl. VAT

19

GEAR; 27T

3233419

9999999

Not Available

20

RING-RET 1.125X1.041X.050

7710607

9999999

Not Available

21

WELD-BELLCRANK W/T

1016010

$73,49 Unit Price incl. VAT

22

OIL LEVEL INDICATOR STICK

5438124

9999999

Not Available

22

O-RING

5410675

$3,14 Unit Price incl. VAT

23

PLUG-7/16-20 W/MAG HX-PLATED

7052472

9999999

Not Available

24

DOG; ENGAGE; HIGH

3233470

9999999

Not Available

25

SPROCKET 19T .75W

3233509

9999999

Not Available

26

NEEDLE CAGE BEARING; 25 X 31 X 17

3514591

9999999

Not Available

27

RING-RET BSC EXT.984X.906X.078

7710602

$6,29 Unit Price incl. VAT

28

WASHER-THRUST 1.007X1.542X.062

7556431

9999999

Not Available

29

BEARING; 205 WITHOUT SEAL

3514304

$27,29 Unit Price incl. VAT

30

GEARCASE; LEFT

3234174

9999999

Not Available

31

SW REV./NEUT.INDIC.

4110062

$62,99 Unit Price incl. VAT

32

KEY-3/16X3/4

7710609

$6,29 Unit Price incl. VAT

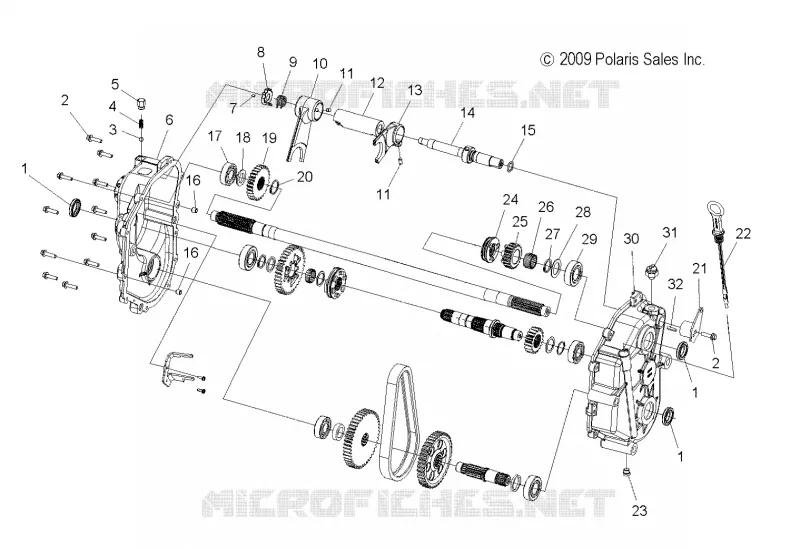

Find the detailed DRIVE TRAIN, GEARCASE (1 OF 2) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
