1
Engine displacement
900
2
Year
2015
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog
WHEELS, REAR
5
Parts Diagram
Parts Catalog
WHEELS, FRONT
by
WINCH
WHEELS, REAR
1
2
3
4
5
5
6
6
7
8
9
10
11
12
1
2
3
4
5
6
6
7
7
8
8
9
10
10
11
12
1
SCREW 10 MM X 1.5 MM X 20 MM
7519343
9999999
Not Available
2
REAR BRAKE DISC 8.625 IN.
5248250
$141,74 Unit Price incl. VAT
3
WHEEL STUD
7519753
$9,44 Unit Price incl. VAT
4
REAR WHEEL HUB; MEDIUM GLOSS BLACK
5137431067
Not Available
5
WELD RIM REAR RIGHT 12 X 8 6 IN GS BLK
1521690067
Not Available
5
RIM OFFSET WELD; REAR; 12 X 8; 6 IN
1521690458
Not Available
6
TIRE RR26X11R12PXTGENUINE PART 5413370
5413370
5419043
$306,38 Unit Price incl. VAT
6
REAR TIRE; 25X11-12; 489
5412008
5419025
$335,46 Unit Price incl. VAT
7
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
8
M12 X 1.5 LUG NUT
7547660
$9,44 Unit Price incl. VAT
9
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
10
CASTLE NUT; 18 MM X 1.5 MM
7547337
$3,66 Unit Price incl. VAT
11
HUB CAP; DUST
5413976
$8,39 Unit Price incl. VAT
12
COTTER PIN
7661404
$9,44 Unit Price incl. VAT

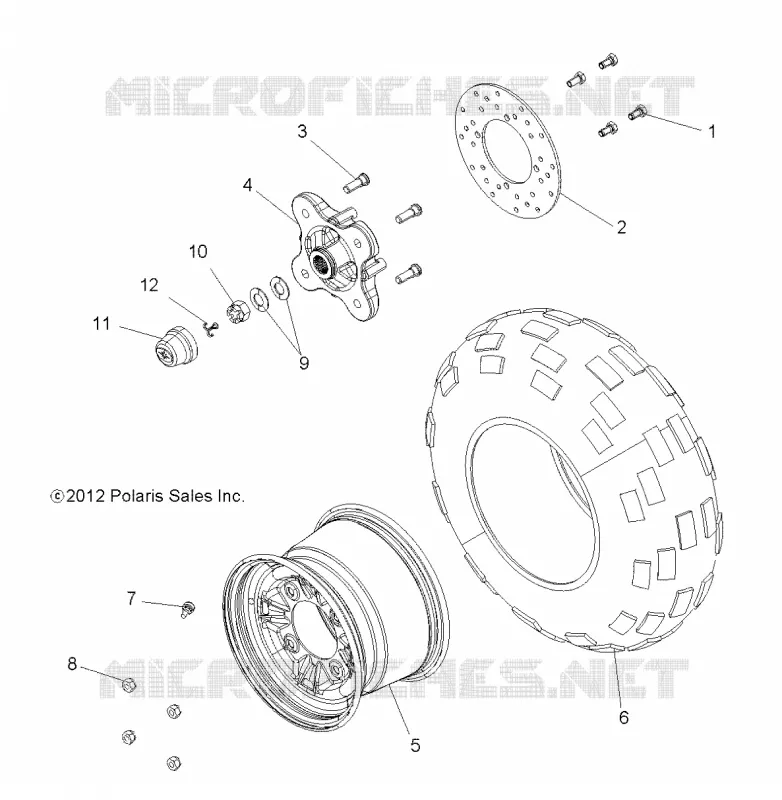

Find the detailed WHEELS, REAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
