CHASSIS, MAIN FRAME AND SKID PLATES for POLARIS RZR XP 1000 SPORT from 2023

CHASSIS, CAB FRAME -Z23NAE99A/99B (C700998)

DRIVE TRAIN, CLUTCH COVER AND DUCTING

CHASSIS, MAIN FRAME AND SKID PLATES

1

MAIN FRAME WELD; MATTE BLACK

1024526458

Not Available

2

MAINFRAME SWAY WELD; FRONT; MATTE BLACK

1024369458

Not Available

3

BOX STRAP BRACKET; BLACK

5260947329

Not Available

4

BOX SUPPORT BRACKET; REAR; BLACK

5264553329

Not Available

5

SKID PLATE; GLOSS BLACK

5456432070

Not Available

6

PLATE-SKID REAR BLK

5458186070

Not Available

7

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

8

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

9

HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM

7519285

$4,19 Unit Price incl. VAT

10

HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM

7519332

$10,49 Unit Price incl. VAT

11

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

12

SKID PLATE WASHER

7556065

$8,39 Unit Price incl. VAT

13

SUSPENSION MOUNT BRACKET; FRONT; MT BLK

5259449458

Not Available

14

SUPPRT WELD; REAR; BLACK

1019529458

Not Available

15

SEAT BASE ASSEMBLY

1020571329

Not Available

16

SCREW

7516732

$3,14 Unit Price incl. VAT

17

HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM

7518474

$9,44 Unit Price incl. VAT

18

BOLT

7519650

$7,34 Unit Price incl. VAT

19

DASH; BLACK

1024577329

Not Available

20

CLOSEOFF SUPPORT BRACKET; BLACK

5260539329

Not Available

21

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

22

PLUNGER-LATCH SEAT

5632848

$25,19 Unit Price incl. VAT

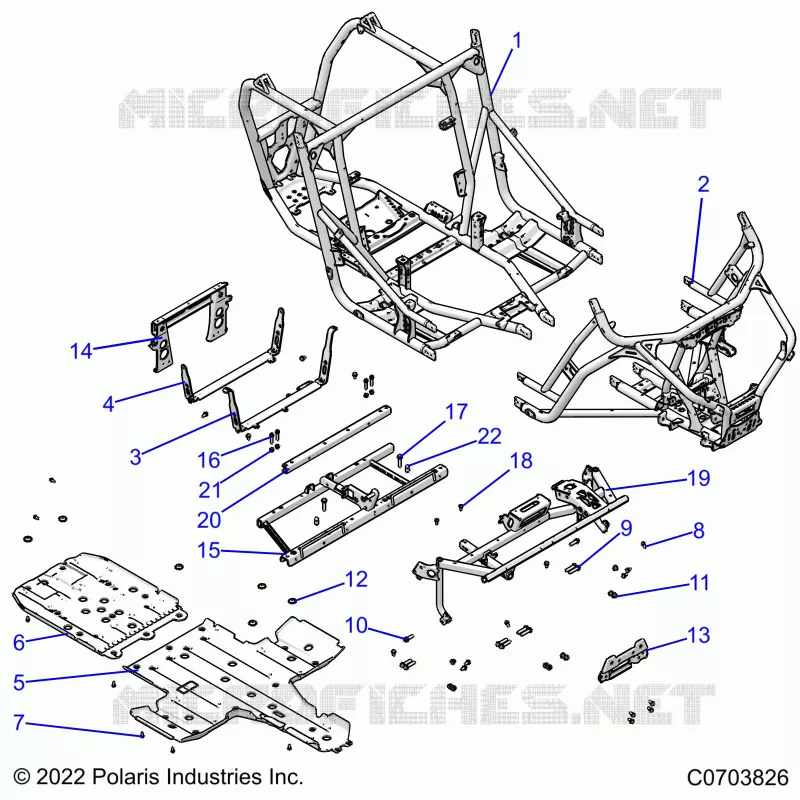

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
