REAR RACK ASM. for POLARIS SPORTSMAN TOURING 550 EPS - A13DN5EAF/EAR from 2013

REAR RACK ASM.

1

REAR RACK; GLOSS BLACK

5437928070

Not Available

2

LNR ANCHOR HANDLE; BLACK

5438117

$10,49 Unit Price incl. VAT

3

CUP HOLDER STRAP; RUBBER

5413600

$16,79 Unit Price incl. VAT

4

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

5

HANDGRIP ASSEMBLY; PASS

2634066

9999999

Not Available

6

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

7

WASHER WROUGHT

7558302

$3,14 Unit Price incl. VAT

8

SUPPORT RACK WELD; REAR; BLACK

1017834329

Not Available

9

SCR-HXFL-M6X1.0X50 TDFM ZPB

7519090

$7,34 Unit Price incl. VAT

10

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

11

RACK-REAR COVER SPM TOUR BLK

5438112070

Not Available

12

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

13

CAST SUPPORT RACK; REAR

5632444

5639280

$40,94 Unit Price incl. VAT

14

CAST SUPPORT RACK; LEFT

5632451

$68,24 Unit Price incl. VAT

15

CAST SUPPORT RACKET; RIGHT

5632452

$68,24 Unit Price incl. VAT

16

SHAFT-LNR ANCHOR;SHORT

5138411

9999999

Not Available

17

BUSHING-PLASTIC LNR ANCHOR

5438504

9999999

Not Available

18

DOWEL PIN; 5/32 IN X 7/8 IN

7661982

$4,19 Unit Price incl. VAT

19

RUBBER BUSHING; LNR ANCHOR

5413887

$6,29 Unit Price incl. VAT

20

SCR-TXPH-M4X1.79X10 ZBK

7519283

9999999

Not Available

21

CAP-HANDLE TOUR

5438706

9999999

Not Available

22

SCR-M6X1X40 TR/TX-M

7519001

$7,34 Unit Price incl. VAT

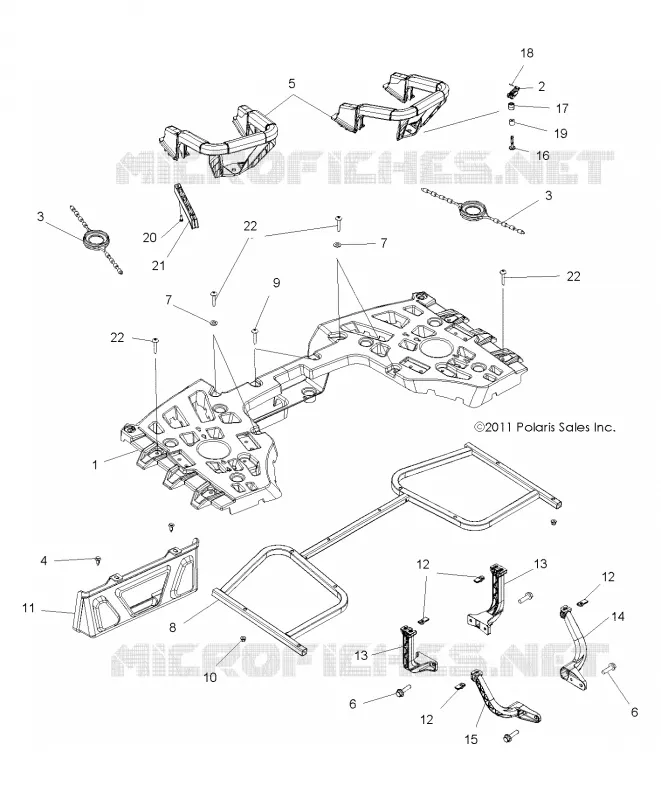

Find the detailed REAR RACK ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
