1
Engine displacement
700
2
Year
2006
3
Trim
RANGER XP 4x4 700 - R06RD68AA
4
Parts Catalog
CRANKCASE AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
MANIFOLD THERMOSTAT
by
PISTON CYLINDER
CRANKCASE AND CRANKSHAFT
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
2
2
3
3
3
3
4
4
5
6
7
8
9
9
9
9
10
10
11
11
11
11
11
11
12
13
14
15
16
17
18
1
PLUG-HEX SOCKET 1/4X18
7518007
9999999
Not Available
2
HOLLOW DOWEL; 16 MM X 12 MM
7661175
$10,49 Unit Price incl. VAT
3
EXPANSION PLUG; 19 MM
7051530
$15,74 Unit Price incl. VAT
4
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
5
CAMSHAFT KIT
2202919
9999999
Not Available
6
GEAR SET KIT
2203106
9999999
Not Available
7
SPRING WASHER; 1.1 X .559 X .0315
7556183
$17,84 Unit Price incl. VAT
8
HEX FLANGE SCREW; 8 MM X 1.25 MM X 45 MM
7517865
$20,99 Unit Price incl. VAT
9
THRUST PLATE
5244286
9999999
Not Available
10
SCREW
7517598
$19,94 Unit Price incl. VAT
11
JOURNAL BALL SHAFT BEARING
5132753
9999999
Not Available
12
BALANCE SHAFT
5132396
9999999
Not Available
13
WOODRUFF KEY #404
7721131
$41,99 Unit Price incl. VAT
14
WASHER RETAINING 8.5X28X3
7555982
7558715
$26,24 Unit Price incl. VAT
15
FLANGE SEAL; 35 X 72 X 7
5412676
$73,49 Unit Price incl. VAT
16
BEARING-BALL DP GRV 35X72X17
3514361
3585503
$54,59 Unit Price incl. VAT
17
BUSHING-35X44X3.00 MM-B (10)
7556194
$7,34 Unit Price incl. VAT
18
BALL BEARING
3514318
$74,54 Unit Price incl. VAT
19
KIT-CRANKSHAFT
2202858
9999999
Not Available
20
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
21
MAIN JOURNAL BEARING
3585704
$40,94 Unit Price incl. VAT
22
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
23
OIL PICKUP ASSEMBLY
1202663
$104,99 Unit Price incl. VAT
24
O-RING SEAL; .070 X .614
5812016
$5,76 Unit Price incl. VAT
25
EXPANSION PLUG; 48 MM
3060004
9999999
Not Available
26
RING-RETAINING 1 5/8 (10)
7710512
$7,34 Unit Price incl. VAT
27
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT
28
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT
29
HEX FLANGE SCREW; 5 MM X .80 MM X 8 MM
7518045
9999999
Not Available
30
CRANKCASE BAFFLE PLATE
5211785
9999999
Not Available
31
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
32
HEX FLANGE SCREW; 8 MM X 1.25 MM X 90 MM
7517792
$4,19 Unit Price incl. VAT
33
KIT-CRANKCASE
2202864
9999999
Not Available

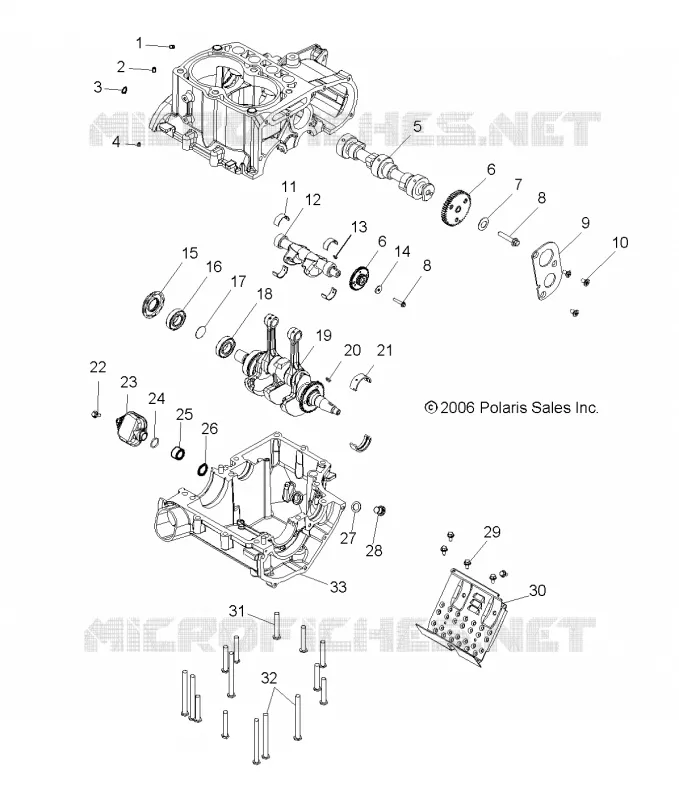

Find the detailed CRANKCASE AND CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
