Engine displacement
500
2
Year
2004
3
Trim
500 WIDETRAK LX
4
Parts Catalog
FRONT TORQUE ARM
5
Parts Diagram
Parts Catalog
RACK TUNNEL EXTENSION
by
REAR TORQUE ARM
FRONT TORQUE ARM
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
1
SHAFT SPANNER
5020720
9999999
Not Available
2
TUBE OUTER SPACER
5333012
$20,99 Unit Price incl. VAT
3
BUSHING
7556301
$6,29 Unit Price incl. VAT
4
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
5
WELD-FRONT TORQ ARMHDBLK
1541978067
Not Available
6
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
7
WASHER
7555823
$7,34 Unit Price incl. VAT
8
PIVOT SHAFT; .750 X 13.235
5132239
$115,49 Unit Price incl. VAT
9
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
10
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
11
SCREW
7515433
$3,14 Unit Price incl. VAT
12
SCREW
7517435
$22,56 Unit Price incl. VAT
13
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
14
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
15
SHAFT
5020909
9999999
Not Available
16
CENTER SHOCK
7041742
$325,49 Unit Price incl. VAT
17
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
18
RETAINER-SPRING GAB PLATED
5245067
$41,99 Unit Price incl. VAT
19
SPRING FR.TRACK BLK
7041712067
Not Available
20
SPRING SHIELD
5430671
9999999
Not Available
21
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
22
BOLT
7515438
$9,44 Unit Price incl. VAT

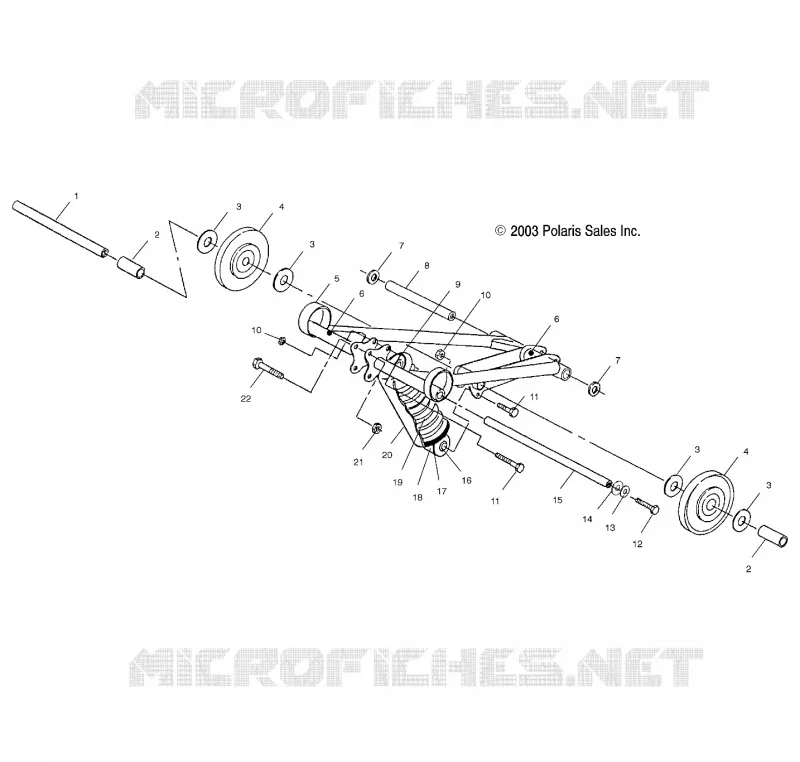

Find the detailed FRONT TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
