WIRE HARNESS for POLARIS RANGER 1000 EPS TEXAS EDITION from 2020

WIRE HARNESS

1

EPS CHASSIS HARNESS; ADC

2415199

$2 782,49 Unit Price incl. VAT

2

BOX HARNESS;

2414296

$125,99 Unit Price incl. VAT

3

FUSE PARK 20 AMP (10)

2434017

4012811

$15,74 Unit Price incl. VAT

4

DECAL-RELAY/FUSE BLOCKWP

7300182

9999999

Not Available

5

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

6

DART CLIP; PLASTIC

7670090

$2,09 Unit Price incl. VAT

7

DIAGNOSTIC COVER WITH CLIP

4012170

4083556

$15,00 Unit Price incl. VAT

8

GROMMET-USB 3 MM 22 MM DIA

5415308

$7,34 Unit Price incl. VAT

9

SEALED CIRCUT BREAKER; 20 AMP

2410881

$141,74 Unit Price incl. VAT

10

FUSE BOX RELAY

4016819

$68,24 Unit Price incl. VAT

11

65 MM GROMMET WITH FLANGE; BLACK

5814560

$24,14 Unit Price incl. VAT

12

FUSE 10 AMP

2434016

$10,49 Unit Price incl. VAT

13

MAIN FUSE; 30 AMP

2434015

$15,74 Unit Price incl. VAT

14

FUSE-MINI BLADE;15 AMP

2410280

4010859

$15,74 Unit Price incl. VAT

15

COVER-FUSEHOLDER

4012260

$19,94 Unit Price incl. VAT

16

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

17

REGULATOR

4012941

$451,49 Unit Price incl. VAT

18

SCR-TFHFL-M6X1.0X25 ZY3

7520715

$7,34 Unit Price incl. VAT

19

COIL-EFI

4010425

2876049

$451,49 Unit Price incl. VAT

20

BOLT-M6X1.0X35 HXFLG/SH-OLV D

7518612

$9,44 Unit Price incl. VAT

21

BRKT-COIL MOUNT

5263891

$19,94 Unit Price incl. VAT

22

COIL MOUNT SPACER

5436577

$7,34 Unit Price incl. VAT

23

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

24

GROMMET-HOOD LINER;SPLIT

5417082

$13,64 Unit Price incl. VAT

25

SCR-M6X1.0X40 HX/SOC/CP-B

7518780

$7,34 Unit Price incl. VAT

26

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

27

COVER TB JCASE

5454284

$62,99 Unit Price incl. VAT

27

PLUG ACCY TB

5454283

$83,99 Unit Price incl. VAT

27

BLOCK-TERMINAL 6 POS

4016007

$68,24 Unit Price incl. VAT

27

CARTRIDGE FUSE

4013891

$68,24 Unit Price incl. VAT

28

MOUNT BRACKET; REG

5263643

$73,49 Unit Price incl. VAT

29

MOUNT BRACKET; REG

5267612

$31,49 Unit Price incl. VAT

30

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

31

NO START ELECTRIC CONTROL MODULE (ECM)

4014125

$1 123,49 Unit Price incl. VAT

32

SCR-#10X1/2-HI/LO-PN-T25 TRX-M

7519091

$6,29 Unit Price incl. VAT

33

SEALED WINCH JUMPER SWITCH

2415055

$89,24 Unit Price incl. VAT

34

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$7,34 Unit Price incl. VAT

35

RELAY SOLID STATE 9A

4012829

4081742

$141,74 Unit Price incl. VAT

36

BRKT-ROUTING BLK

5268050329

Not Available

37

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

38

BRKT-HARNESS ROUTING

5264314

$23,09 Unit Price incl. VAT

39

EDGE CLIP; 1 MM - 3 MM

7082403

$9,44 Unit Price incl. VAT

40

CLIP-EDGE 3-6MM THICKNESS

7082404

$17,84 Unit Price incl. VAT

41

HARNESS CLIP EDGE

7081890

$19,94 Unit Price incl. VAT

42

CABLE TIE STRAP WITH EDGE CLIP

7081808

$10,49 Unit Price incl. VAT

43

CAP BLACK 125 X 375 VINYL

5438230

$10,49 Unit Price incl. VAT

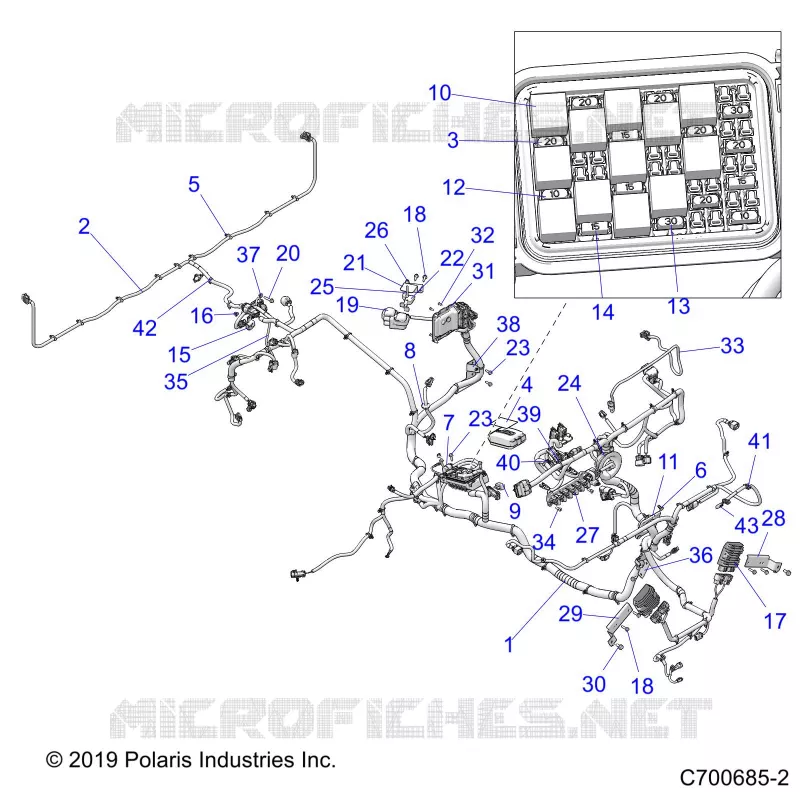

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
