1
Engine displacement
autre
2
Year
1998
3
Trim
ULTRA TOURING - 0985378
4
Parts Catalog
BACKREST ULTRA TOURING 0985378 AND EUROPEAN ULTRA TOURING E985378 (4943404340A007)
5
Parts Diagram
Parts Catalog
TUNNEL ULTRA TOURING 0985378 AND EUROPEAN ULTRA TOURING E985378 (4943404340A005)
by
SEAT GAS TANK ULTRA TOURING 0985378 AND EUROPEAN ULTRA TOURING E985378 (4943404340A009)
BACKREST ULTRA TOURING 0985378 AND EUROPEAN ULTRA TOURING E985378 (4943404340A007)
1
ADJ.ASMBREST CUSHION
1012534
9999999
Not Available
2
BRKT MOUNTING
1012535
9999999
Not Available
3
WASHER WAVE
7571635
9999999
Not Available
4
SCREW
7511866
$9,44 Unit Price incl. VAT
5
KEY SQUARE
7721118
9999999
Not Available
6
E-RING
7710901
$15,74 Unit Price incl. VAT
7
WASHER (10)
7571634
9999999
Not Available
8
SCREW (10)
7512087
9999999
Not Available
9
KNOB; ADJ.
5432112
9999999
Not Available
10
ROTOR
5131207
9999999
Not Available
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
HSG LH (ADJ. B REST)
5131211
9999999
Not Available
12
HSG RH (ADJ.B REST)
5131212
9999999
Not Available
13
CABLE ASM;ACTUATOR
7080582
9999999
Not Available
14
SPRING LOCKING
7041411
9999999
Not Available
15
SECTOR ENGAGEMENT
5211610
Not Available
16
PIN PIVOT
5020806
9999999
Not Available
17
ADJUSTER ASM;BREST
1012536
9999999
Not Available
18
BOLT (10)
7515171
9999999
Not Available
19
LEVER LOCKING.BLK. Substituted by 5631126-067
5630561067
Not Available
20
SCREW (10)
7516915
9999999
Not Available
21
WASHER THRUST
7555926
9999999
Not Available
22
NUT
7547015
9999999
Not Available
23
COVER SPRING 1/2 ID BLK
5241935067
Not Available
24
SPRING TORSION PRELOAD
7041412
Not Available
25
BOLT
7515170
9999999
Not Available
26
STUD-LIMITER
5020822
9999999
Not Available
27
GEARSTATIONARY
1012537
9999999
Not Available
28
PAWL ASMLHLOCK.MASTER
1012320
9999999
Not Available
28
PAWL ASM RH LOCK MASTER
1012321
Not Available
29
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
30
TUBE B REST MT BLK
5224761067
Not Available
31
COVER CABLE BLK
5432259
9999999
Not Available
32
GRIP ASM;PASSENGER;HEATED
2460659
9999999
Not Available
33
HANDLE GRAB RH BLACK
1012658067
Not Available
33
HANDLE GRAB LH BLACK
1012657067
Not Available
34
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
35
SCREW
7512307
$7,34 Unit Price incl. VAT
36
DEFLECTOR AIR LH
5432078
9999999
Not Available
36
DEFLECTOR AIR RH
5432079
9999999
Not Available
37
RIVET (50)
7621341
9999999
Not Available
38
KNOB GRAB HANDLE
1012385
9999999
Not Available
39
KNOB; BACKREST
5630386067
Not Available
40
BOLT
7515328
7515339
$9,44 Unit Price incl. VAT
41
SPACER ADJ.KNOB
5432123
9999999
Not Available
42
CAPLUG 3/4
7080592
9999999
Not Available
43
NUT NYLOK
7542327
9999999
Not Available
44
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
45
MAINFRAMELHBLK
1012539067
Not Available
45
MAINFRAME RH BLK
1012540067
Not Available
46
HOUSING-SWITCH
5432120
9999999
Not Available
47
HARNESS PASS.GRP.HTR WITH SWI
2460537
9999999
Not Available
48
DECAL HIGH/LOW/OFF
7075418
Not Available
49
SCREW TAPPING
7527815
9999999
Not Available
50
COVER B#REST W/LAMP
2682309
Not Available
50
CUSHION B#REST W/LAMP (Incl. Cover)
2682308
Not Available
51
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
51
TAILLIGHT ASM B#REST
2432040
Not Available
52
SCREW(10)
7512054
$4,19 Unit Price incl. VAT

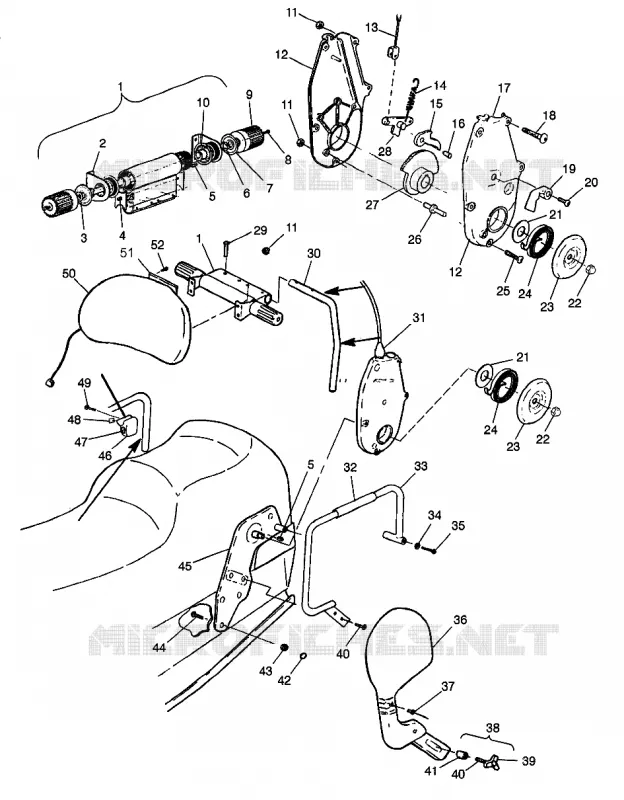

Find the detailed BACKREST ULTRA TOURING 0985378 AND EUROPEAN ULTRA TOURING E985378 (4943404340A007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
