COOLING SYSTEM for POLARIS 800 RUSH PRO X SC from 2017

COOLING SYSTEM

1

PRESSURE CAP

1240300

$73,49 Unit Price incl. VAT

2

COOLANT BOTTLE WELD

2521338

$73,49 Unit Price incl. VAT

3

RIVET

7621467

$2,09 Unit Price incl. VAT

4

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

5

HOSE-BOTTLE/TUNNEL OUT

5414911

9999999

Not Available

6

CLAMP SPRING BAND

7081692

$8,39 Unit Price incl. VAT

7

ENGINE HOSE AND COOLER ASSEMBLY

1262492

$188,99 Unit Price incl. VAT

8

CLAMP SPRINGBAND 29/12 BLK

7080842

$13,64 Unit Price incl. VAT

9

HOSE-TUNNEL COOLER/MFC

5415814

$83,99 Unit Price incl. VAT

10

HEAT EXHANGER COOLER

1240735

$745,49 Unit Price incl. VAT

11

WELD-WEAR STRIP COOLER 120 LH

1240725

9999999

Not Available

12

WELD-WEAR STRIP COOLER 120 RH

1240726

9999999

Not Available

13

O-RING LIP SEAL

5411521

9999999

Not Available

14

THERMOSTAT

7052615

$73,49 Unit Price incl. VAT

15

CLAMP SPRINGBAND

7081693

$8,39 Unit Price incl. VAT

16

ASM-COOLER BULKHEAD

1240857

1241285

$839,99 Unit Price incl. VAT

17

HOSE COOLER AND ENGINE WATERPUMP ASM

1262626

$194,24 Unit Price incl. VAT

18

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

19

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

20

HOSE ENGINE AND CLOSEOFF ASSEMBLY

1262686

$173,24 Unit Price incl. VAT

21

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

22

CLAMP HOSE SS

7080560

$20,99 Unit Price incl. VAT

23

HOSE CLAMP

7080534

$3,14 Unit Price incl. VAT

24

CABLE TIE; 11 IN

7080492

$5,24 Unit Price incl. VAT

25

SUPPORT-HOSE

5415302

$15,74 Unit Price incl. VAT

26

HOSE BOTTLE/ENGINE ASSEMBLY

1262625

$293,99 Unit Price incl. VAT

27

HOSE-TBODY/COOLANT BOTTLE

5414969

$23,09 Unit Price incl. VAT

28

FUEL LINE; 1/4 ID

84500031525

Not Available

29

RIVET 4.8 MM

7661973

$2,09 Unit Price incl. VAT

30

ASM-HOSE BYPASS;AFS SNOW

1205187

$62,99 Unit Price incl. VAT

31

SCREW

7517278

9999999

Not Available

31

CLAMP-.75ID RUBBER COATED MED

7082047

$6,29 Unit Price incl. VAT

32

FOAM-COOLING HOSE

5814178

9999999

Not Available

33

RIVET

7661637

$2,09 Unit Price incl. VAT

34

CONDUIT-FLEX .750 ID 16CM

552139816

Not Available

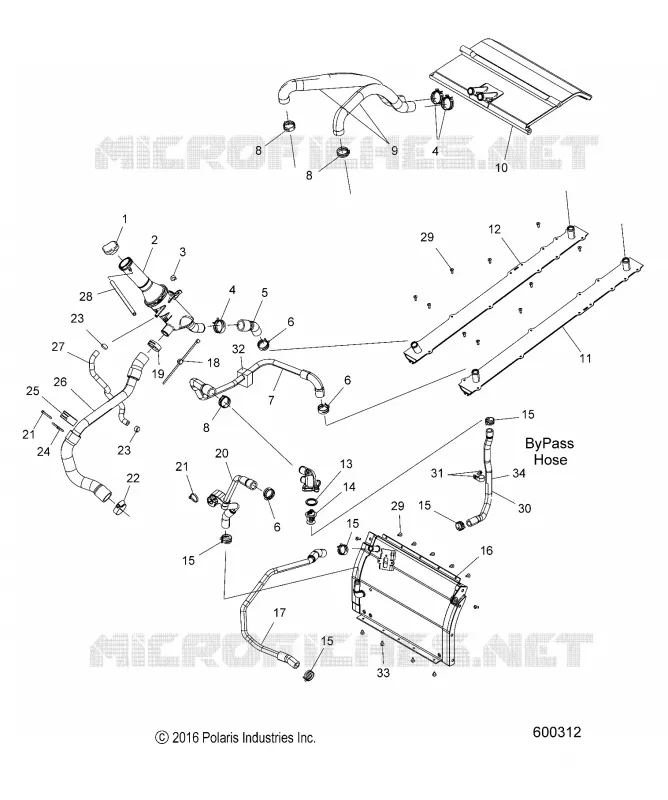

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
