ENGINE, WATERPUMP AND BYPASS for POLARIS RZR XP 1000 INTL from 2015

ENGINE, WATERPUMP AND BYPASS

1

WATERPUMP ASSEMBLY

1204735

$356,99 Unit Price incl. VAT

2

WATERPUMP ASSEMBLY

1204349

$183,74 Unit Price incl. VAT

3

WATERPUMP COVER ASSEMBLY

1204732

9999999

Not Available

4

WATERPUMP COVER GASKET

5413811

$41,99 Unit Price incl. VAT

5

SCR-M6X1.0X25MM HXHD CLR COAT

7519178

$68,24 Unit Price incl. VAT

6

THEMISTER SENSOR

4010644

$141,74 Unit Price incl. VAT

7

WATER PUMP OUT HOSE; FORMED

5414208

$125,99 Unit Price incl. VAT

8

OIL COOLER OUTLET HOSE

5414282

$62,99 Unit Price incl. VAT

9

OIL COOLER HOSE

5414475

$62,99 Unit Price incl. VAT

10

BYPASS HOSE

5414735

9999999

Not Available

11

SPRING HOSE CLAMP; .81

7081026

$14,69 Unit Price incl. VAT

12

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

13

SCREW

7519280

$9,44 Unit Price incl. VAT

14

SCREW

7519297

$7,34 Unit Price incl. VAT

15

THERMOSTAT HOUSING

5138282

5143463

$62,99 Unit Price incl. VAT

16

THERMOSTAT COVER; CAST

5632421

$73,49 Unit Price incl. VAT

17

DOUBLE ACTING THEROMSTAT; 1 MM

7052600

$83,99 Unit Price incl. VAT

18

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

19

O-RING 2.62X44.12ID NBR

5414591

$5,76 Unit Price incl. VAT

20

CLAMP-SPRINGBAND FBS-30/12 BLK

7081970

$10,49 Unit Price incl. VAT

21

SCR-M6X1.0X12MM HXHD

7519177

$9,44 Unit Price incl. VAT

22

WASHER-IMPELLER 6.5X19X1.2

7556532

$9,44 Unit Price incl. VAT

23

WATERPUMP SHAFT SEAL; OIL

3610163

$41,99 Unit Price incl. VAT

24

WATERPUMP SHAFT SEAL

3610164

$115,49 Unit Price incl. VAT

25

WATERPUMP SHAFT

5137069

$52,49 Unit Price incl. VAT

26

O-RING 31.45 X .778

5413863

$14,69 Unit Price incl. VAT

27

WATERPUMP IMPELLER

5438796

$41,99 Unit Price incl. VAT

28

WASHER WATERPUMP RETAINER

7556521

9999999

Not Available

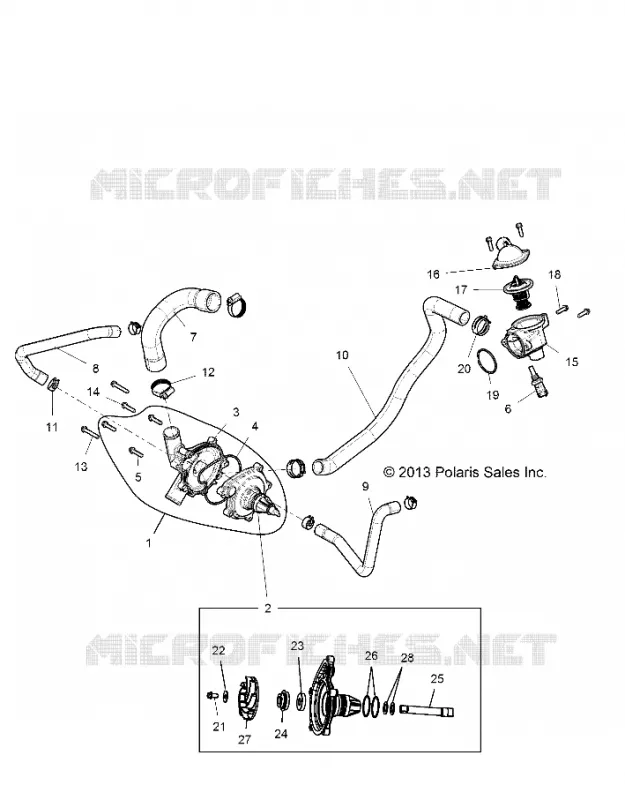

Find the detailed ENGINE, WATERPUMP AND BYPASS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
