PROPULSION SLTX B964590 AND INTL. SLTX I964590 (4935783578B003) for POLARIS INTL SLTX

SEAT SLTX B964590 AND INTL. SLTX I964590 (4935783578A011)

EXHAUST SYSTEM SLTX B964590 AND INTL. SLTX I964590 (4935783578B004)

SEAL SIPHON TUBE

5411016

9999999

Not Available

SEAL WATER PIPE

5411107

9999999

Not Available

HSG PUMP (148MM)

5131311

9999999

Not Available

PIPE WATER BILGE

5020835

9999999

Not Available

PIPE WATER.RESTRICTED [No Longer Available]

1060133

Not Available

O RING;(10)

5410735

9999999

Not Available

SCREEN ENG.INLET

5431523

9999999

Not Available

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

DESC NOT_AVAILABLE

845005433

Not Available

BRKT PUMP EXTENDED

5241876

9999999

Not Available

NOZZLE ASM;1 TUBE

1350021

9999999

Not Available

WASHER LOCK S.S.

7552610

9999999

Not Available

WASHER FLAT S.S.(10)

7555835

9999999

Not Available

BOLT

7515389

9999999

Not Available

WEDGE PUMP (0DEGX4DEG)

5630662

9999999

Not Available

SCREW S.S. ALLEN(10)

7512090

9999999

Not Available

CONE PUMP

5431519

9999999

Not Available

O-RING(10)

5410819

9999999

Not Available

SHAFT; STUB

5020697

9999999

Not Available

O-RING(10)

5410818

9999999

Not Available

O-RING(10)

5410817

9999999

Not Available

BEARING

3514008

9999999

Not Available

STATOR PUMP

5130983

9999999

Not Available

SPACER

5010294

9999999

Not Available

SEAL BRG STATOR

3610043

9999999

Not Available

SPACER IMPELLER

5010295

9999999

Not Available

IMPELLER 17-23 3 BLADE SS

5131366

9999999

Not Available

EXTENSION PUMP

5131196

9999999

Not Available

SCREW(10)

7522019

9999999

Not Available

ANODE-ZINC

5630598

9999999

Not Available

WASHER

7555966

$4,15 Unit Price incl. VAT

NUT HEX S.S.(10)

7542455

9999999

Not Available

BRKT;STRG.CABLE

5241741

9999999

Not Available

STUD MTG PUMP

5020877

9999999

Not Available

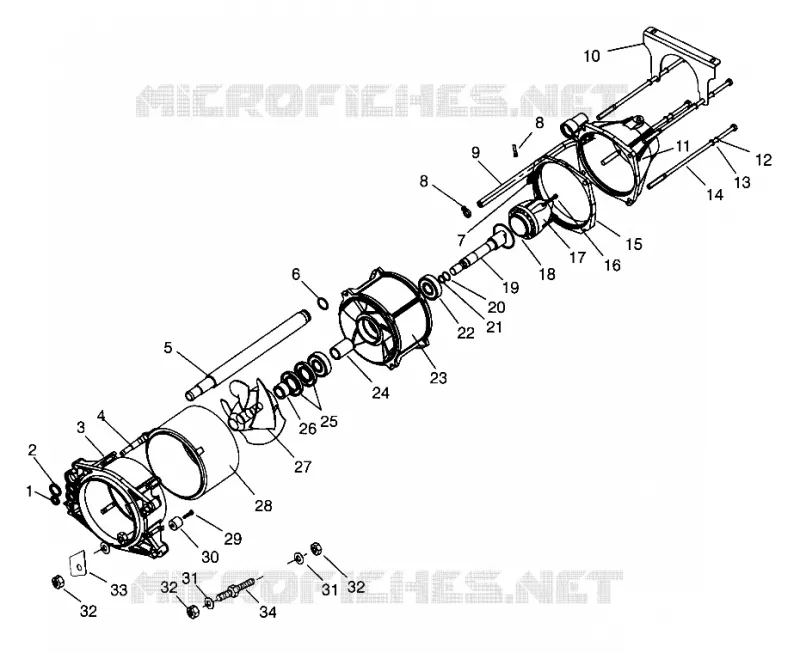

Find the detailed PROPULSION SLTX B964590 AND INTL. SLTX I964590 (4935783578B003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
