1
Engine displacement
600
2
Year
2014
3
Trim
600 RMK 144 / 155
4
Parts Catalog
ENGINE, THROTTLE CONTROL ASM.
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR MOUNTING
by
WATER PUMP
ENGINE, THROTTLE CONTROL ASM.
10
11
12
13
14
15
16
1
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
2
WASHER
7555730
$7,34 Unit Price incl. VAT
3
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
4
HI/LO HEATER LEVER; 35.5 MM
2010404
9999999
Not Available
5
THROTTLE BLOCK; UPPER
5450861
$73,49 Unit Price incl. VAT
6
THROTTLE COVER
5450862
$19,94 Unit Price incl. VAT
7
SCREW
7511848
$7,34 Unit Price incl. VAT
8
ASM-SWITCH AUX SHUTOFF STD MNT
2010405
2010517
$269,31 Unit Price incl. VAT
9
MNT-AUX SHUT-OFF LOWER
5439575
$47,24 Unit Price incl. VAT
10
SCREW
7512076
$2,09 Unit Price incl. VAT
11
THROTTLE LOWER BLOCK
5450836
$47,24 Unit Price incl. VAT
12
SOCKET HEAD SCREW SET 8MM X 1.25MM X 8MM
7519755
$4,19 Unit Price incl. VAT
13
THROTTLE CABLE
7081154
$120,74 Unit Price incl. VAT
14
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
15
CONVLUTED TUBING; 38 CM
836005638
Not Available
16
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

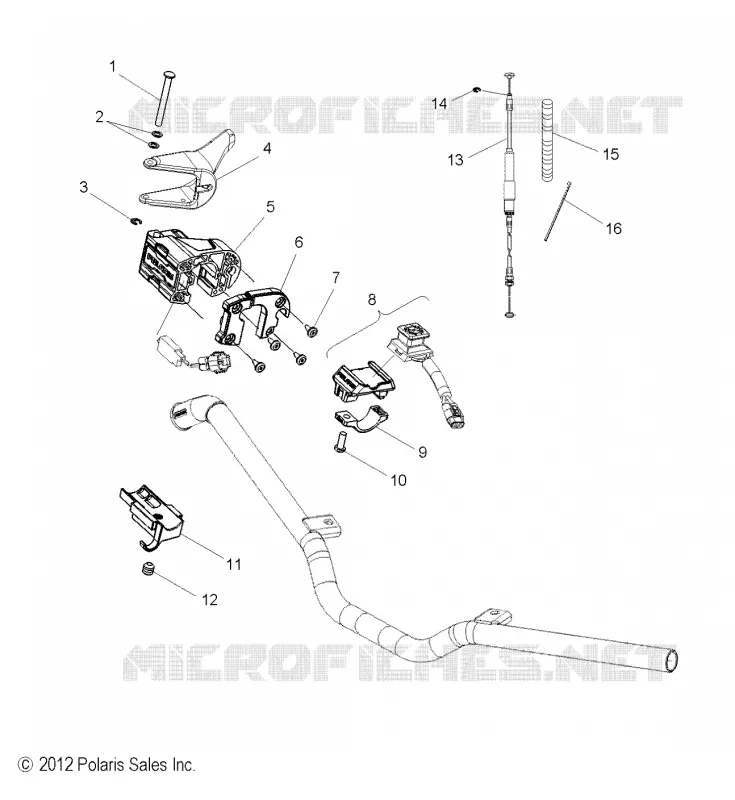

Find the detailed ENGINE, THROTTLE CONTROL ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
