OIL TANK (IF BUILT AFTER 1/02/02)
5
Parts Diagram
Parts Catalog
FUEL PUMP
by
OIL TANK (IF BUILT AFTER 1/02/02)
1
1
2
2
3
3
3
4
5
5
6
6
7
7
8
9
10
10
11
12
13
14
1
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
1
BOLT
7512130
$7,34 Unit Price incl. VAT
2
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
3
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
4
BREATHER-LINE-112 CMSLIT
5411668
9999999
Not Available
5
GROMMET MTG RESERVOIR (10)
5410828
9999999
Not Available
6
BUSHING MTG.
5333204
9999999
Not Available
7
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
8
OIL TANK DIPSTICK
5434308
9999999
Not Available
9
SPRING HOSE CLAMP; .81
7081026
$14,69 Unit Price incl. VAT
10
LINE-GOODYEAR 1/2 16CM
845009616
Not Available
11
OIL FILTER SCREEN
7052326
9999999
Not Available
12
PLUG
7051524
$62,99 Unit Price incl. VAT
13
WASHER
5850135
$5,76 Unit Price incl. VAT
14
TANK OIL PLASTIC
1261176
1261653
$509,24 Unit Price incl. VAT

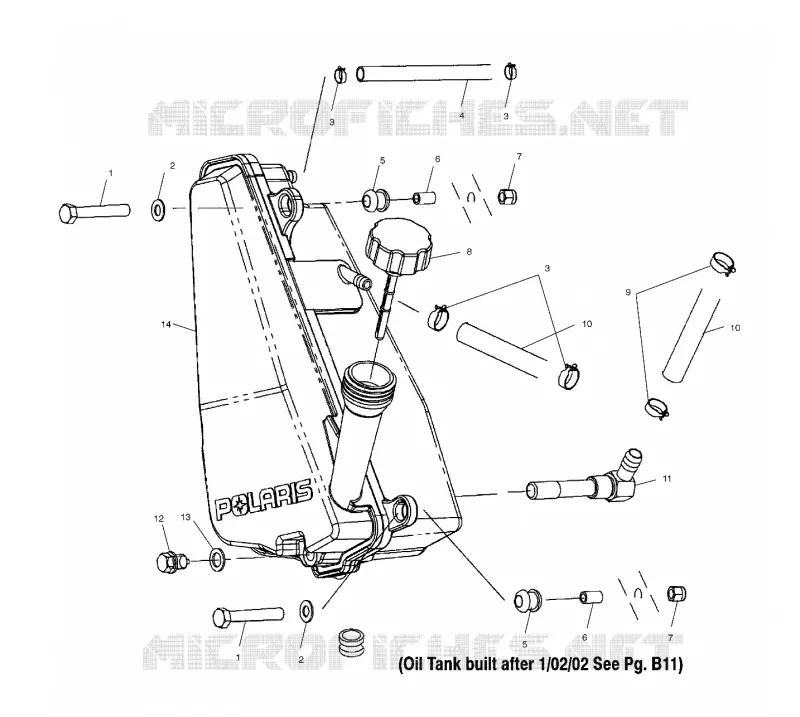

Find the detailed OIL TANK (IF BUILT AFTER 1/02/02) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
