Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
OIL COOLING
by
FUEL TANK AND CARBURETOR MOUNTING
ENGINE MOUNTING
1
2
3
4
4
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
27
28
28
28
28
29
30
1
2
2
3
4
5
6
7
1
FUEL LINE; 1/4 ID
84500031525
Not Available
2
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
3
ENGINE-ES32PFE10
1211750
9990000
Not Available
4
NUT
7547108
$9,44 Unit Price incl. VAT
5
BRKT MOTOR MOUNT 325 BLK
5243641067
Not Available
6
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
7
BOLT
7512232
$2,09 Unit Price incl. VAT
8
CABLE GND-ENGINE
4010132
9999999
Not Available
9
BOLT
7512315
$9,44 Unit Price incl. VAT
10
MOUNT-RUBBER 45 DURO
5412248
9999999
Not Available
11
WASHER
7555823
$7,34 Unit Price incl. VAT
12
CLUTCH INTAKE BOOT
5411721
9999999
Not Available
13
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
14
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
15
MOUNT ENGINE REAR BLK
1013133067
Not Available
16
SCREW
7517289
9999999
Not Available
17
MOUNT RUBBER REAR 60 DURO
3021119
9999999
Not Available
18
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
19
SCREW
7515417
9999999
Not Available
20
MOUNT-LOWER FRONT 325BLK
5243288067
Not Available
21
MOUNT RUBBER ENGINE 45 DURO
3021181
9999999
Not Available
22
BUSHING
5430261
$13,64 Unit Price incl. VAT
23
WASHER
5210748
$7,34 Unit Price incl. VAT
24
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
25
BOLT
7512566
9999999
Not Available
26
CABLE BATT/ENG. BLK.
4010095
9999999
Not Available
27
LINE FUEL-1/4 DP SAE J30R9
8450103
8450117-250
$99,74 Unit Price incl. VAT
28
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
29
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
30
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT

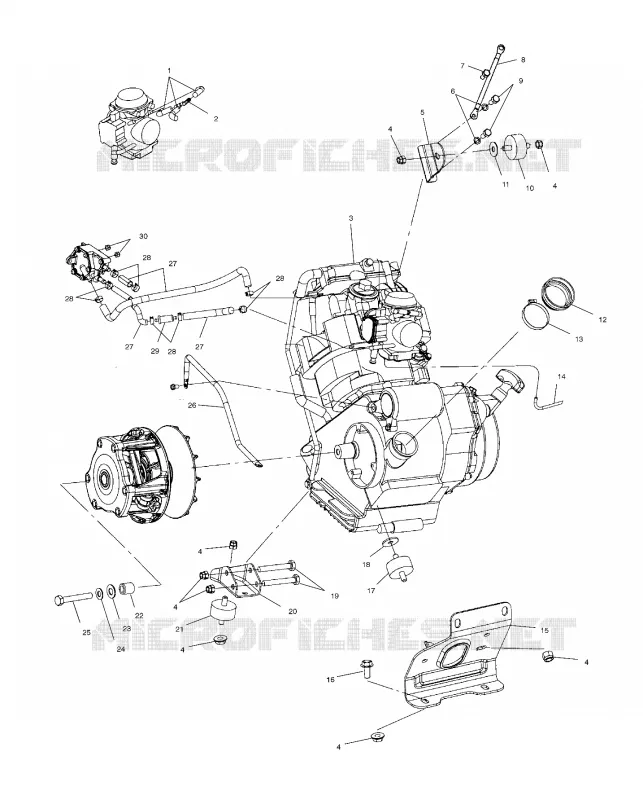

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
