Parts Catalog
SHOCK (FRONT TRACK)(M-10)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM (M-10)
by
NOSEPAN
SHOCK (FRONT TRACK)(M-10)
1
SHOCK-FRONT TRACKM-10
7042223
9999999
Not Available
2
ASM-BODY CAP
1500443
9999999
Not Available
3
O-RING .103W-1.549ID
1500108
$15,74 Unit Price incl. VAT
4
PISTON-FLOATING
1500187
9999999
Not Available
5
PLATE BACKUP
1500015
9999999
Not Available
6
PLATE TOP OUT
1500017
9999999
Not Available
7
Asm. Bearing FIST
1500490
Not Available
8
SHAFT
1500247
9999999
Not Available
9
BUMPER-.498 ID X .883 TLG
1500441
9999999
Not Available
10
EYELET BASE
1500164
9999999
Not Available
11
O-RING .103X.73ID
1500483
9999999
Not Available
12
SCRAPER-FIST DELRIN
1500485
9999999
Not Available
13
URETHANE U-CUP
1500266
$52,49 Unit Price incl. VAT
14
O-RING 14MM IDX1 MM
1500484
9999999
Not Available
15
RING-SNAP INTERNAL
1500486
9999999
Not Available
16
O-RING
1500228
9999999
Not Available
17
O-RING
1500127
9999999
Not Available
18
BEARING-.5 IDX.5 TLG
1500488
9999999
Not Available
19
DAMPER; PISTON RING
1500002
9999999
Not Available
20
KIT VALV.PISTON
2200618
9999999
Not Available
21
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
22
BODY-1.46X6.55 TLG NON/GR
1500458
Not Available
23
O-RING ENDCAP
1500003
9999999
Not Available
24
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
25
O-RING DRUM OUTER
1500022
9999999
Not Available
26
SCREW
1500018
9999999
Not Available
27
BEARING-RBC 003-10-000
1500444
1501035
$57,74 Unit Price incl. VAT
28
RING SPRING PRELOAD ADJ
5432304
9999999
Not Available
29
BUSHING .35ILG .595TLG
1500309
9999999
Not Available
30
SLEEVE .56 X .81 X 1.2
1500310
$40,94 Unit Price incl. VAT

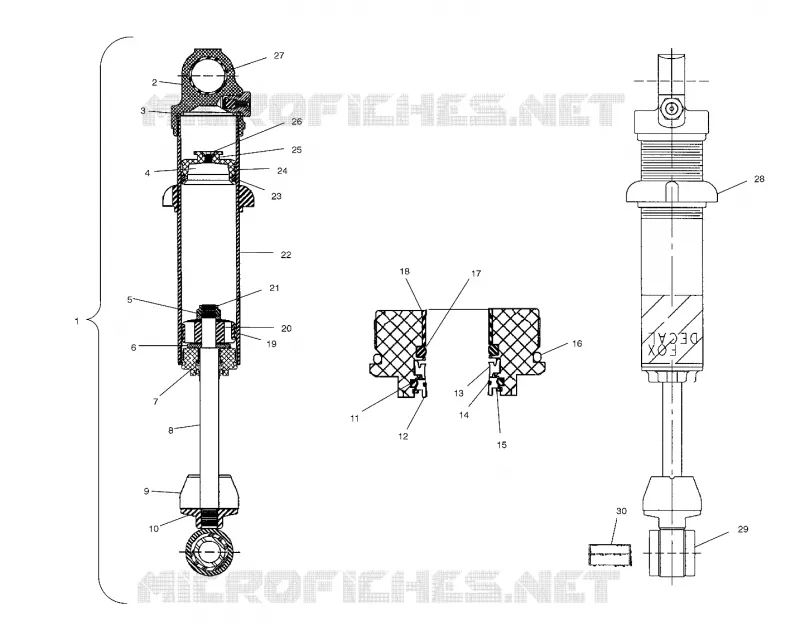

Find the detailed SHOCK (FRONT TRACK)(M-10) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
