1
Engine displacement
650
2
Year
1989
3
Trim
FIN 650 SKS - F890558
4
Parts Catalog

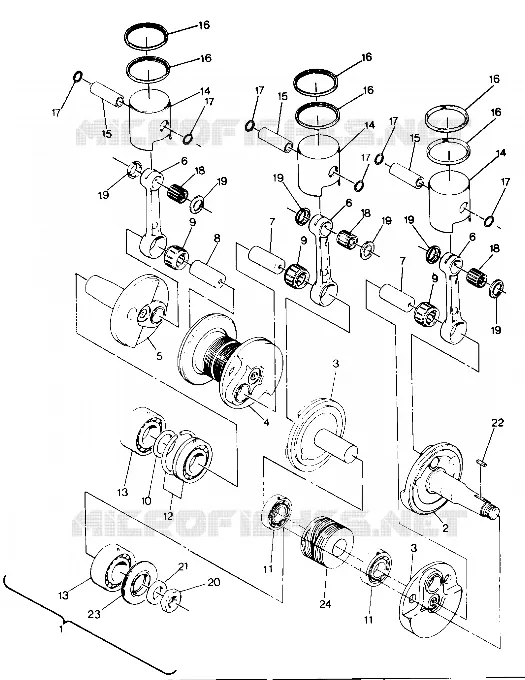

PISTON AND CRANKSHAFT 650 (4915411541039A)
5
Parts Diagram
Parts Catalog
PISTON AND CRANKSHAFT 500 AND 500 CLASSIC (4915411541038A)
by
RECOIL STARTER 500 AND 500 CLASSIC (4915411541044A)
PISTON AND CRANKSHAFT 650 (4915411541039A)
1
CRANKSHAFT ASM.
3083476
9999999
Not Available
2
CRANKSHAFT 1 MAG. END
3083342
Not Available
3
CRANKSHAFT MAG SIDE (Incl. 7)
3083478
Not Available
5
CRANKSHAFT;PTO END
3083346
9999999
Not Available
6
CONNECTING ROD
3083252
9999999
Not Available
7
PIN-CRANK 1
3083253
9999999
Not Available
8
PIN-CRANK 2
3083254
9999999
Not Available
9
BEARING-LARGE END
3083255
9999999
Not Available
10
SPACER
3083399
9999999
Not Available
11
BEARING BALL
3083480
3515063
$60,89 Unit Price incl. VAT
12
BEARING
3083457
9999999
Not Available
13
BEARING BALL
3083002
9999999
Not Available
14
PISTON .010 O/S Substituted by 3084246 (.010 Over) (Incl. 17)
3083875
Not Available
14
PISTON
3083857
9999999
Not Available
14
PISTON .020 O/S Substituted by 3084247 (.020 Over) (Incl. 17)
3083876
Not Available
15
PISTON PIN
3083858
9999999
Not Available
16
RING .010 O/S (2)
3083873
9999999
Not Available
16
PISTON RING
3083859
9999999
Not Available
16
RING .020 O/S (.020 Over)
3083874
Not Available
17
PISTON PIN CLIP
3083839
9999999
Not Available
18
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
19
SPACER
3083401
9999999
Not Available
20
NUT
3083047
Not Available
21
WASHER
3083048
Not Available
22
KEY
3081447
9999999
Not Available
23
OIL SEAL
3083045
9999999
Not Available
24
GEAR OIL PUMP
3083781
Not Available

Find the detailed PISTON AND CRANKSHAFT 650 (4915411541039A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
