ENGINE, MOUNTING for POLARIS BRUTUS HD HDPTO (R03) - D17B3/4PD1AJ from 2017

ENGINE, MOUNTING

1

ASM-ENG KDW1003-5142

1205625

9999999

Not Available

2

HEX FLANGE SCREW; 10 MM X 1.5 MM X 20 MM

7519905

$4,19 Unit Price incl. VAT

3

BOLT-M10-1.5X25 12.9 SHCS

7520228

9999999

Not Available

4

DRIVELINE ISOLATOR MOUNT

1332955

$136,49 Unit Price incl. VAT

5

BRKT-ENGINE MOUNT;FRONT;BLK

5259847329

Not Available

6

COUPLER-L-ENGINE FRONT

5633200

9999999

Not Available

7

SCR-HEXFLGHD M10X16 0600086

7517951

$10,49 Unit Price incl. VAT

8

BOLT-M10X1.5X75 HX HD FLG

7518473

$9,44 Unit Price incl. VAT

9

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

$3,14 Unit Price incl. VAT

10

SCREW 10 MMX 1.5 MM X 60 MM

7518941

$7,34 Unit Price incl. VAT

11

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$9,44 Unit Price incl. VAT

12

HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM

7519097

$3,14 Unit Price incl. VAT

13

SCR-HXFL-M12X1.75X30 ZOD

7520054

$14,69 Unit Price incl. VAT

14

PALNUT

7547030

$9,44 Unit Price incl. VAT

15

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

16

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

17

BRKT-GUARD BELT BLK

5260405458

Not Available

18

GEARCASE ENGINE COUPLER

5633498

$309,74 Unit Price incl. VAT

19

L ENGINE COUPLER; GEARCASE

5633151

$141,74 Unit Price incl. VAT

20

SCR-HXFL-M10X1.5X35 10.9 ZOD D

7519782

$7,34 Unit Price incl. VAT

21

HEX FLANGE SCREW; 10 MM X 1.5 MM X 50 MM

7519783

$41,99 Unit Price incl. VAT

22

WASHER

7556153

$3,66 Unit Price incl. VAT

23

ASM-BELLHOUSING

1205149

9999999

Not Available

24

DOWL HOL M11X10

7663005

$9,44 Unit Price incl. VAT

25

HEX FLANGE SCREW; 8 MM X 30 MM

7518884

$3,66 Unit Price incl. VAT

26

CRANK POSITION SENSOR

2411719

$194,24 Unit Price incl. VAT

27

HEX FLANGE SCREW; 6 MM X 16 MM

7518548

$3,14 Unit Price incl. VAT

28

BOLT

7519650

$7,34 Unit Price incl. VAT

29

COUPLER-MACHINED

3120833

$346,49 Unit Price incl. VAT

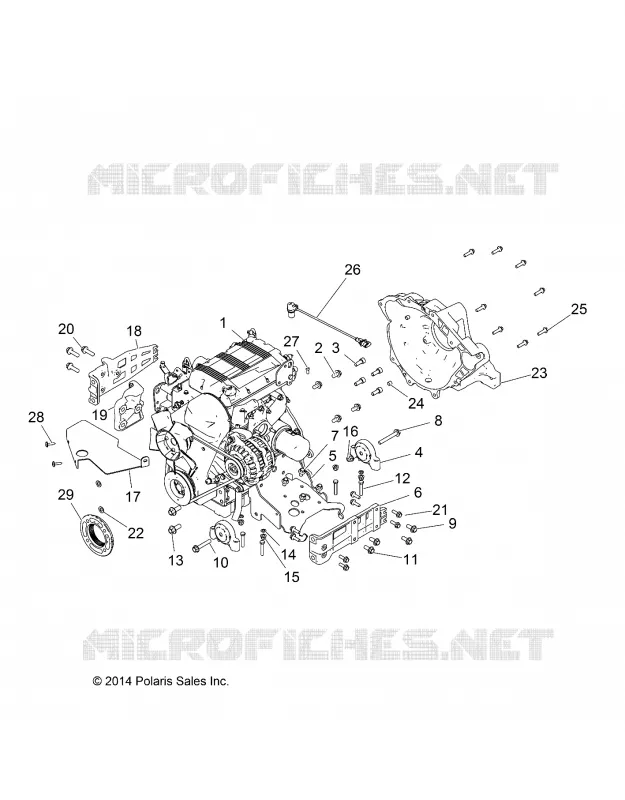

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
