1
Engine displacement
autre
2
Year
1996
3
Trim
EURO ULTRA SP - E960678
4
Parts Catalog

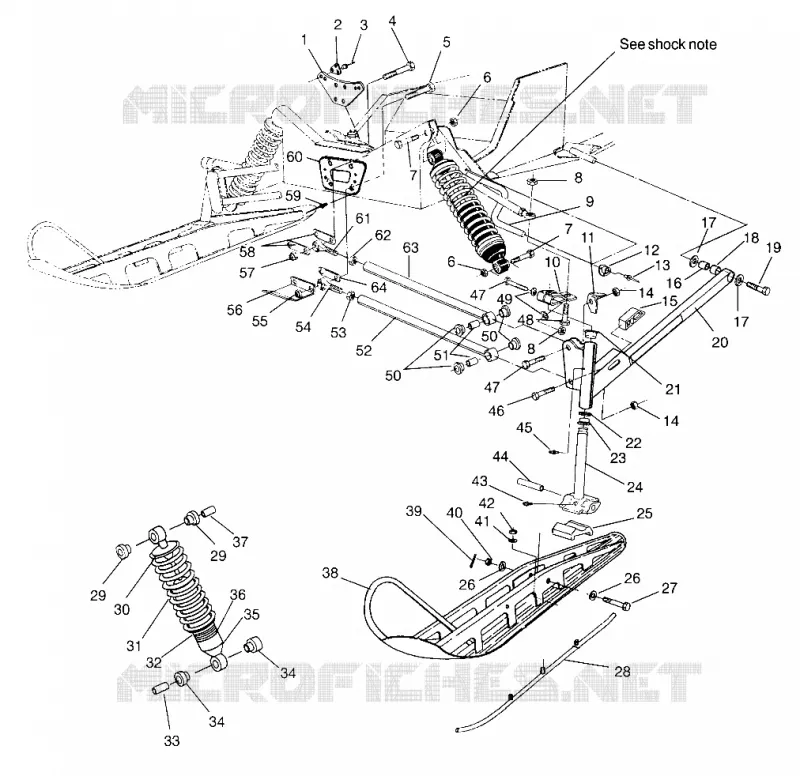

FRONT SUSPENSION AND SKI ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B001)
5
Parts Diagram
Parts Catalog
HOOD
by
MASTER CYLINDER ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B007)
FRONT SUSPENSION AND SKI ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B001)
1
2
13
4
5
6
6
7
7
8
8
9
10
11
11
11
11
12
13
14
14
15
16
17
17
18
19
20
20
20
20
21
22
23
24
25
26
26
27
28
29
29
30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
49
50
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1
2
13
4
5
6
6
7
7
8
8
9
10
11
11
11
11
12
13
14
14
15
16
17
17
18
19
20
20
20
20
21
22
23
24
25
26
26
27
28
29
29
30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
49
50
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1
REINFR.SHOCK MT.PLATE
5241395067
Not Available
2
BRKT-SPRING RETAINER
5211659
9999999
Not Available
3
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
4
BOLT
7512551
9999999
Not Available
5
BOLT
7512678
$36,74 Unit Price incl. VAT
6
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
7
BOLT(10)
7515515
9999999
Not Available
8
NUT; FLEXLOC B
7542456
9999999
Not Available
9
BAR;SWAY;5/8;W/FITTED
5224681067
Not Available
10
STEERING ARM
5220326067
Not Available
11
STOP LH STRG BLK.
5240397067
Not Available
11
STOP RH STRG BLK.
5240398067
Not Available
12
BUSHING-SWAYBAR
5410383
9999999
Not Available
13
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
14
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
15
SLIDE (FR.SUSP.)
5410385
9999999
Not Available
16
PIVOT-TRAILING ARM
5410382
9999999
Not Available
17
WASHER
7555721
$2,09 Unit Price incl. VAT
18
TUBE TRAILING ARM
5010187
9999999
Not Available
19
BOLT
7512557
9999999
Not Available
20
ARM TRLG LH.
1822210
Not Available
20
ARM;TRLG;RH.
1822211
9999999
Not Available
21
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
22
BUSHING
7556509
$3,14 Unit Price incl. VAT
23
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
24
SPINDLE BLK.
6230073067
Not Available
25
STOP RUBBER
5521276
9999999
Not Available
26
WASHER; WROUGHT
7555928
7555801
$7,34 Unit Price incl. VAT
27
SCREW
7515462
9999999
Not Available
28
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
29
BUSHING SHOCK .220
5431540
9999999
Not Available
30
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
31
SPRING (BLK.) IFS COMP.
7041252067
Not Available
32
RING RETAINING(10)
7710424
9999999
Not Available
33
BUSHING (1.34 IN.)
5020612
9999999
Not Available
34
BUSHING SHOCK
5431727
9999999
Not Available
35
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
36
RETAINER; SPRING BODY
5020617
9999999
Not Available
37
BUSHING 1.16 IN
5020613
9999999
Not Available
38
SKI WELD BLK
1820332067
Not Available
39
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
40
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
41
WASHER
7571628
9999999
Not Available
42
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
43
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
44
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
45
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
46
BOLT
7515492
7515540
$9,44 Unit Price incl. VAT
47
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
48
BOLT
7512404
$7,34 Unit Price incl. VAT
49
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
50
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
51
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
52
ROD RAD LOW WIDE BLK SP Substituted by 2202105
1822139067
Not Available
53
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
54
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
55
NUT FLEXOC;
7542703
9999999
Not Available
56
BRACE PAN
5223997067
Not Available
57
NUT FLEXLOCK
7542503
9999999
Not Available
58
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
59
RIVET
7661637
$2,09 Unit Price incl. VAT
60
BRACE BLKHD/STRG BLK.
5211589067
Not Available
61
ROD END; RH
7060155
9999999
Not Available
62
NUT JAM(10)
7542520
9999999
Not Available
63
ROD RAD UP.BLK. Substituted by 2202104
1822138067
Not Available
64
STRAP SPACER BOTTOM
5211345
9999999
Not Available

Find the detailed FRONT SUSPENSION AND SKI ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for EURO ULTRA SP - E960678

TUNNEL ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708A005)

TUNNEL ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708A005)

for EURO ULTRA SP - E960678 from 1996

CONSOLE ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708A012)

CONSOLE ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708A012)

for EURO ULTRA SP - E960678 from 1996

HOOD

HOOD

for EURO ULTRA SP - E960678 from 1996

HOOD

HOOD

for EURO ULTRA SP - E960678 from 1996

FRONT SUSPENSION AND SKI ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B001)

FRONT SUSPENSION AND SKI ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B001)

for EURO ULTRA SP - E960678 from 1996

MASTER CYLINDER ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B007)

MASTER CYLINDER ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B007)

for EURO ULTRA SP - E960678 from 1996

CHAINCASE ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B008)

CHAINCASE ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B008)

for EURO ULTRA SP - E960678 from 1996

DRIVE TRAIN ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B009)

DRIVE TRAIN ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B009)

for EURO ULTRA SP - E960678 from 1996

SUSPENSION ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B010)

SUSPENSION ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B010)

for EURO ULTRA SP - E960678 from 1996

EXHAUST SYSTEM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C003)

EXHAUST SYSTEM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C003)

for EURO ULTRA SP - E960678 from 1996

OIL TANK AIR BOX ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C004)

OIL TANK AIR BOX ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C004)

for EURO ULTRA SP - E960678 from 1996

FOX SHOCK

FOX SHOCK

for EURO ULTRA SP - E960678 from 1996

FOX SHOCK

FOX SHOCK

for EURO ULTRA SP - E960678 from 1996

PISTON CRANKSHAFT ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C012)

PISTON CRANKSHAFT ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C012)

for EURO ULTRA SP - E960678 from 1996

CARBURETOR ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C013)

CARBURETOR ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C013)

for EURO ULTRA SP - E960678 from 1996

FUEL PUMP ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C014)

FUEL PUMP ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C014)

for EURO ULTRA SP - E960678 from 1996

OIL PUMP ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708D001)

OIL PUMP ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708D001)

for EURO ULTRA SP - E960678 from 1996

SEAT GAS TANK ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708A007)

SEAT GAS TANK ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708A007)

for EURO ULTRA SP - E960678 from 1996

NOSEPAN ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708A008)

NOSEPAN ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708A008)

for EURO ULTRA SP - E960678 from 1996

NOSEPAN ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708A009)

NOSEPAN ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708A009)

for EURO ULTRA SP - E960678 from 1996

HOOD ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708A010)

HOOD ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708A010)

for EURO ULTRA SP - E960678 from 1996

STEERING

STEERING

for EURO ULTRA SP - E960678 from 1996

STEERING ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B004)

STEERING ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B004)

for EURO ULTRA SP - E960678 from 1996

COOLING SYSTEM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B005)

COOLING SYSTEM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B005)

for EURO ULTRA SP - E960678 from 1996

BRAKE ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B006)

BRAKE ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B006)

for EURO ULTRA SP - E960678 from 1996

FRONT TORQUE ARM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B012)

FRONT TORQUE ARM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B012)

for EURO ULTRA SP - E960678 from 1996

REAR TORQUE ARM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B013)

REAR TORQUE ARM ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B013)

for EURO ULTRA SP - E960678 from 1996

DRIVE CLUTCH ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B014)

DRIVE CLUTCH ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708B014)

for EURO ULTRA SP - E960678 from 1996

DRIVEN CLUTCH ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C001)

DRIVEN CLUTCH ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C001)

for EURO ULTRA SP - E960678 from 1996

ENGINE MOUNTING ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C002)

ENGINE MOUNTING ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C002)

for EURO ULTRA SP - E960678 from 1996

FOX SHOCK

FOX SHOCK

for EURO ULTRA SP - E960678 from 1996

CRANKCASE ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C008)

CRANKCASE ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C008)

for EURO ULTRA SP - E960678 from 1996

CYLINDER ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C009)

CYLINDER ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C009)

for EURO ULTRA SP - E960678 from 1996

WATER PUMP ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C011)

WATER PUMP ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708C011)

for EURO ULTRA SP - E960678 from 1996

MAGNETO ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708D002)

MAGNETO ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708D002)

for EURO ULTRA SP - E960678 from 1996

RECOIL STARTER ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708D003)

RECOIL STARTER ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708D003)

for EURO ULTRA SP - E960678 from 1996

TOOL KIT ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708D004)

TOOL KIT ULTRA SP 0960678 AND EUROPEAN ULTRA SP E960678 (4937083708D004)

for EURO ULTRA SP - E960678 from 1996

POLARIS EURO ULTRA SP - E960678 1996

EURO ULTRA SP - E960678

EURO ULTRA SP - E960678

Model : OTHERS

Engine capacity : autre

Year : 1996

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
