CRANKCASE AND CRANKSHAFT for POLARIS SPORTSMAN 700 EFI - A06MH68AQ from 2006

CRANKCASE AND CRANKSHAFT

1

HOLLOW DOWEL; 16 MM X 12 MM

7661175

$10,49 Unit Price incl. VAT

2

EXPANSION PLUG; 19 MM

7051530

$15,74 Unit Price incl. VAT

3

PIN DOWEL

7663001

$20,99 Unit Price incl. VAT

4

JOURNAL BALL SHAFT BEARING

5132753

9999999

Not Available

5

BALANCE SHAFT

5132396

9999999

Not Available

6

FLANGE SEAL; 35 X 72 X 7

5412676

$73,49 Unit Price incl. VAT

7

BEARING-BALL DP GRV 35X72X17

3514361

3585503

$54,59 Unit Price incl. VAT

8

BALL BEARING

3514318

$74,54 Unit Price incl. VAT

9

BUSHING-35X44X3.00 MM-B (10)

7556194

$7,34 Unit Price incl. VAT

10

KIT-CRANKSHAFT

2202858

9999999

Not Available

10

CRANKSHAFT KIT; 700 ATV

2203067

9999999

Not Available

11

BOLT(1)

7516603

$19,94 Unit Price incl. VAT

12

O-RING SEAL; .070 X .614

5812016

$5,76 Unit Price incl. VAT

13

RING-RETAINING 1 5/8 (10)

7710512

$7,34 Unit Price incl. VAT

14

OIL PICKUP ASSEMBLY

1202663

$104,99 Unit Price incl. VAT

15

EXPANSION PLUG; 48 MM

3060004

9999999

Not Available

16

HEX FLANGE SCREW; 8 MM X 1.25 MM X 90 MM

7517792

$4,19 Unit Price incl. VAT

17

SCR-M8X1.25X50 HX/FL-Y

7517793

$10,49 Unit Price incl. VAT

18

KIT-CRANKCASE

2202864

9999999

Not Available

19

SOCKET PLUG; 12 MM X 1.5 MM

7052306

$31,49 Unit Price incl. VAT

20

COPPER WASHER

5812232

7556937

$6,29 Unit Price incl. VAT

21

MAIN JOURNAL BEARING

3585704

$40,94 Unit Price incl. VAT

22

WOODRUFF KEY

7721117

$47,24 Unit Price incl. VAT

23

CRANKCASE BAFFLE PLATE

5211785

9999999

Not Available

24

HEX FLANGE SCREW; 5 MM X .80 MM X 8 MM

7518045

9999999

Not Available

25

HEX FLANGE SCREW; 8 MM X 1.25 MM X 45 MM

7517865

$20,99 Unit Price incl. VAT

26

WASHER RETAINING 8.5X28X3

7555982

7558715

$26,24 Unit Price incl. VAT

27

GEAR SET KIT

2203106

9999999

Not Available

28

WOODRUFF KEY #404

7721131

$41,99 Unit Price incl. VAT

29

SPRING WASHER; 1.1 X .559 X .0315

7556183

$17,84 Unit Price incl. VAT

30

SCREW

7517598

$19,94 Unit Price incl. VAT

31

THRUST PLATE

5244286

9999999

Not Available

32

CAMSHAFT KIT

2202723

9999999

Not Available

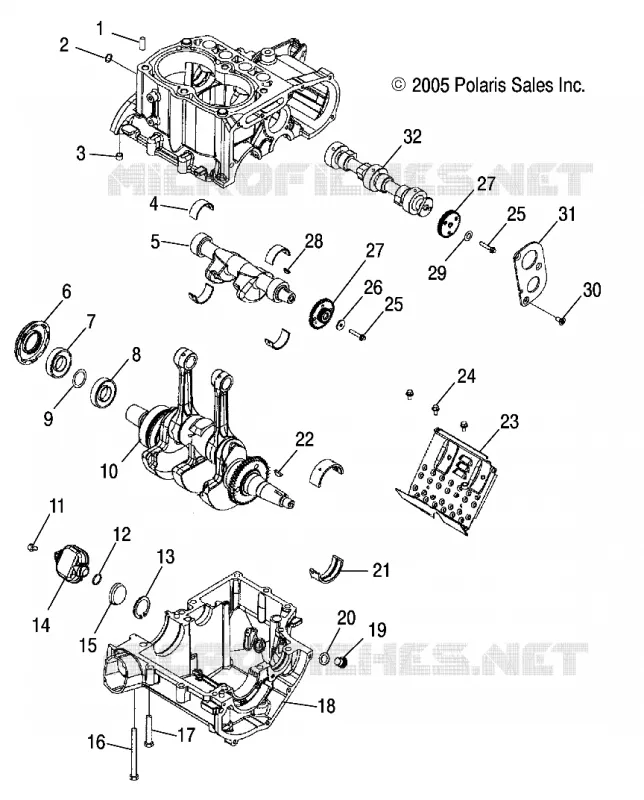

Find the detailed CRANKCASE AND CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
