1
Engine displacement
autre
2
Year
2001
3
Trim
XPLORER - A01AG25CA
4
Parts Catalog
FUEL TANK
5
Parts Diagram
Parts Catalog
BODYWORK
by
OIL TANK
FUEL TANK
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
1
1
1
2
3
4
5
6
7
8
9
10
10
11
12
12
12
12
13
13
14
1
CAP GAS TANK
5433687
5450389
$36,74 Unit Price incl. VAT
2
GASKET
5812123
$10,49 Unit Price incl. VAT
3
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
4
TANK VENT
5431053
9999999
Not Available
5
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
6
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
7
BRKT RH.R.FUELCOVER BLK.
5222155067
Not Available
7
BRKT LH.R.FUELCOVER BLK.
5222154067
Not Available
8
SCREW
7512208
9999999
Not Available
9
BRKT R.TANK MT BLK.
5220916067
Not Available
10
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
PAD
5810317
9999999
Not Available
13
SCREW
7517505
$3,14 Unit Price incl. VAT
14
KNOB FUEL VALVE CONTOURED ATV
5433431
9999999
Not Available
15
FUEL VALVE NUT
5432733
9999999
Not Available
16
VLV FUEL 3WAY 60DEG OUTLET
7052276
$89,24 Unit Price incl. VAT
17
FUEL LINE; 600 CM
8450040600
Not Available
18
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
19
FITTING FUEL OUT 90DEG RES Z
7052148
7052348
$17,84 Unit Price incl. VAT
20
ELBOW MAIN
7052147
9999999
Not Available
21
FUELTANK 90- PERPENDICULR (Incl. 6 16 17)(If built after 8/16/99)
1240082
Not Available

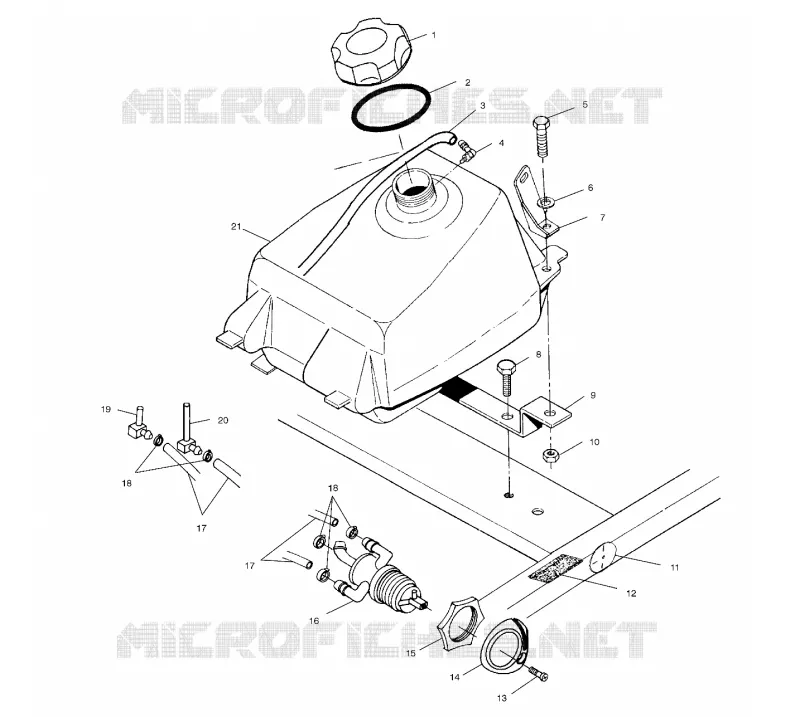

Find the detailed FUEL TANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
