FRONT WHEEL ASSEMBLY (4915951595017A) for POLARIS Big Boss 4x6 - X898627 from 1989

STEERING ASSEMBLY (4915951595011A)

FRONT BRAKE (4915951595018A)

FRONT WHEEL ASSEMBLY (4915951595017A)

1

SUPPORT;LH STRUT&SPINDLE

5130655

5130803

Not Available

1

SPROCKET; 12 TOOTH

3221044

$83,99 Unit Price incl. VAT

1

SUPPORT;RH STRUT&SPINDLE

5130656

9999999

Not Available

2

SEAL FRONT HUB

3610020

9999999

Not Available

2

SPROCKET 22 TOOTH

3222042

9999999

Not Available

3

BEARING; BALL

3514510

9999999

Not Available

3

BALL BEARING

3514001

$34,64 Unit Price incl. VAT

4

DISC BRAKEFRONT

5211084

9999999

Not Available

4

SEAL TIGHTENER

3610017

9999999

Not Available

5

HUB;WHEEL;FRONT

5130658

9999999

Not Available

5

SPACERCTR.TIGHT.

5020488

9999999

Not Available

6

WRANGLER SPORT 22-800-10NHS

5410480

9999999

Not Available

6

SHAFTTIGHTENERCTR.

5020526

9999999

Not Available

7

ECCENTRIC CTR. [No Longer Available]

5130699

Not Available

7

RIM;FRONT;PRIMED

1520127

9999999

Not Available

8

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

8

O-RING

5410463

9999999

Not Available

9

SPACER FRONT HUB [No Longer Available]

5010236

Not Available

9

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

10

SCREW

7512492

$2,09 Unit Price incl. VAT

10

WASHER

7555721

$2,09 Unit Price incl. VAT

11

NUT

7542712

$17,84 Unit Price incl. VAT

11

FLAT WASHER

7555815

$7,34 Unit Price incl. VAT

12

LOCK WASHER

7571611

9999999

Not Available

12

COTTER PIN

7661407

9999999

Not Available

13

HUB CAP

5431018

9999999

Not Available

13

SPACER CTR TIGHT

5020557

9999999

Not Available

14

O-RING

5410470

$4,19 Unit Price incl. VAT

15

HEX NUT

7542301

$3,14 Unit Price incl. VAT

16

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

17

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

18

STUD WHEEL 5/16-18

7515330

9999999

Not Available

19

SCREW

7515314

9999999

Not Available

19

LOCTITE 242 [No Longer Available] (Disc Bolt)

8570010

Not Available

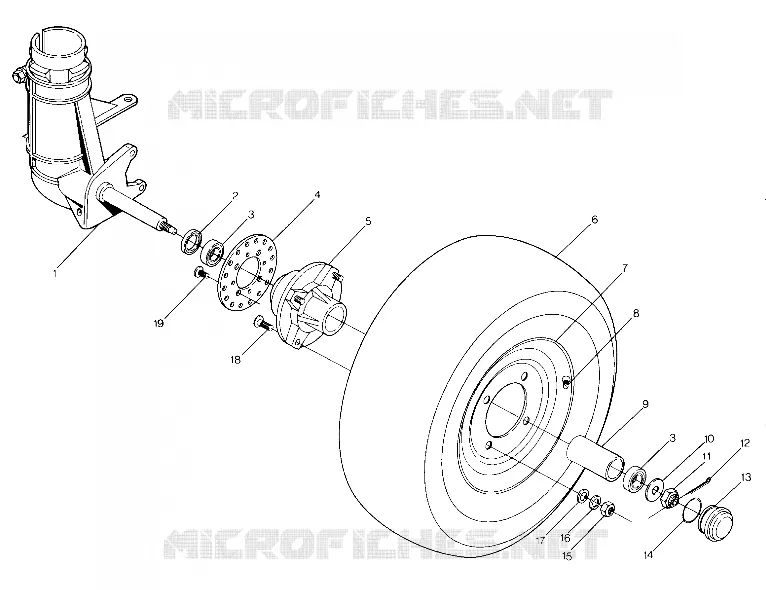

Find the detailed FRONT WHEEL ASSEMBLY (4915951595017A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
