1
Engine displacement
autre
2
Year
1996
3
Trim
SPORTSMAN 4X4 - W968040
4
Parts Catalog
FRONT STRUT SPORTSMAN 4X4 W968040 (4935943594B006)
5
Parts Diagram
Parts Catalog
CV JOINT
by
FRONT WHEEL SPORTSMAN 4X4 W968040 (4935943594B007)
FRONT STRUT SPORTSMAN 4X4 W968040 (4935943594B006)
1
2
3
4
5
5
5
6
7
8
9
10
11
11
12
12
13
14
15
15
16
16
16
16
17
17
18
19
20
21
22
23
24
25
26
27
1
BUMPER STRUT
5410791
9999999
Not Available
2
STRUT FRONT 32MM.
7041374
2201460
$283,49 Unit Price incl. VAT
3
WASHER
5211115
$7,34 Unit Price incl. VAT
4
CLAMP RUBBER-COATED .562
7080573
$13,64 Unit Price incl. VAT
5
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
6
NUT FLEX-LOC
7542303
9999999
Not Available
7
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
8
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
9
RETAINER WIRE STRUT CAST
5810439
9999999
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
TAPERED ROLLER BEARING
3554509
$40,94 Unit Price incl. VAT
12
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
13
HUBSTRUT SEAL SLEEVE
5222193
$120,74 Unit Price incl. VAT
14
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
15
COIL MAGNET.HVY W/PLUG-IN
4170010
2201313
$241,49 Unit Price incl. VAT
15
COIL MAGNETIC HVY.
4170016
2201313
$241,49 Unit Price incl. VAT
16
HUBSTRUT ASMRHHVY.
2200610
9999999
Not Available
16
HUBSTRUT ASM RH
2200974
Not Available
16
HUBSTRUT ASM LH (Incl. 9 12-17 23)
2200973
Not Available
16
HUBSTRUT ASMLHHVY.
2200609
9999999
Not Available
17
SUPPORT LH HUBSTRUT Substituted by 1843054
5131077
Not Available
17
SUPPORT;RH;HUBSTRUT
5131078
1843055
Not Available
18
SPRING COIL FR SHOCK BLK.
7041375067
Not Available
19
RETAINER SPRING TOP
5220602
9999999
Not Available
20
PIVOT BALL;BOTTOM
5430807
5432871
$19,94 Unit Price incl. VAT
21
THREADED SPACER
5130668
$52,49 Unit Price incl. VAT
22
BOLT
7515339
$9,44 Unit Price incl. VAT
23
HUB STRUT SEAL
3610028
$57,74 Unit Price incl. VAT
24
PIVOT BALL; TOP
5430806
5432872
$19,94 Unit Price incl. VAT
25
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
26
WASHER
7555749
$2,09 Unit Price incl. VAT
27
FLEX LOC NUT
7542507
9999999
Not Available

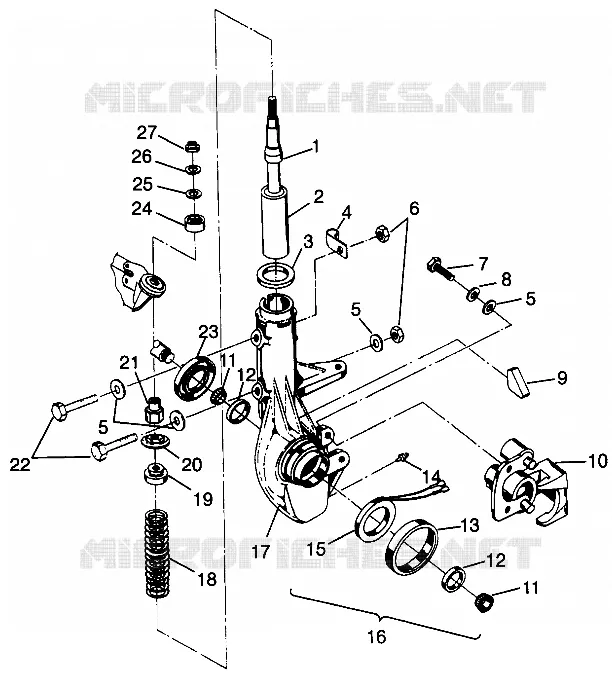

Find the detailed FRONT STRUT SPORTSMAN 4X4 W968040 (4935943594B006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
