1
Engine displacement
900
2
Year
2012
3
Trim
RZR XP 900 EFI - R12JT87AB/AD/AS/AW/9EAW
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION SHOCK (7043795)
by
OIL TANK AND LINES
REAR SUSPENSION
1
TRAIL ARM WELD; LEFT
1017465293
Not Available
1
TRAIL ARM WELD; LEFT; BRIGHT WHITE
1017465133
Not Available
2
TRAIL ARM WELD; RIGHT
1017466293
Not Available
2
TRAIL ARM WHEEL; RIGHT
1017466133
Not Available
3
SPHERICAL BEARING; 0.625
3514689
$68,24 Unit Price incl. VAT
4
REDUCER BUSHING; 12 MM
5336751
$12,59 Unit Price incl. VAT
5
WASHER
7556153
$3,66 Unit Price incl. VAT
6
HEX FLANGE SCREW; 12 MM X 1.5 MM; 60 MM
7519138
$17,84 Unit Price incl. VAT
7
NUT 12MM X 1.5MM
7547334
$9,44 Unit Price incl. VAT
8
RETAINING RING
7710437
$5,76 Unit Price incl. VAT
9
SEALED BALL BEARING; 44 X 72 X 33.1
3514699
$73,49 Unit Price incl. VAT
10
WHEEL BEARING CARRIER; LEFT
5137180
9999999
Not Available
11
BEARING CARRIER WHEEL; RIGHT
5137181
9999999
Not Available
12
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
13
RADIUS ROD ASSEMBLY TOP ORANGE MADNESS
1542940589
Not Available
13
ASM-RADIUS RODTOPV.BLUE
1542940619
Not Available
13
RADIUS ROD ASSEMBLY; TOP; BRIGHT WHITE
1542940133
Not Available
13
RADIUS ROD ASSEMBLY TOP INDY RED
1542940293
Not Available
14
ASM-RADIUS ROD;BTM;V.BLUE
1542941619
Not Available
14
ASM-RADIUS RODBTMWHITE
1542941133
Not Available
14
ASM-RADIUS RODBTMORNG MAD
1542941589
Not Available
14
ASM-RADIUS RODBTMI RED
1542941293
Not Available
15
PLATE-REAR BOLT BRACE ORNG MAD
5254609589
Not Available
15
PLATE-REAR BOLT BRACE V.BLUE
5254609619
Not Available
15
PLATE-REAR BOLT BRACE WHITE
5254609133
Not Available
15
PLATE; REAR; BOLT BRACE; INDY RED
5254609293
Not Available
16
HEX FLANGE SCREW 10MM X 1.25MM X 100MM
7519284
$7,34 Unit Price incl. VAT
17
FLANGE SCREW
7519306
$10,49 Unit Price incl. VAT
18
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519286
$13,64 Unit Price incl. VAT
19
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
20
O-RING .726 X 1.145 X .210 7
5414198
$2,09 Unit Price incl. VAT

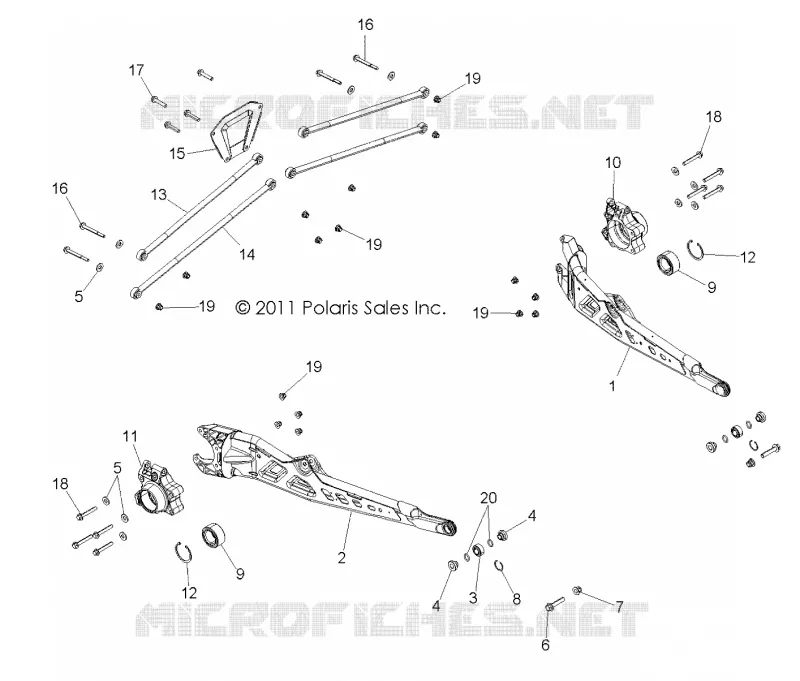

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
