1
Engine displacement
900
2
Year
2006
3
Trim
900 SWITCHBACK
4
Parts Catalog
PISTON CRANKSHAFT
5
Parts Diagram
Parts Catalog
WATER/OIL PUMP
by
MAGNETO
PISTON CRANKSHAFT
-
1
2
3
4
5
6
7
8
9
-
CRANKSHAFT KIT
2203617
9999999
Not Available
1
PISTON RINGS KIT
2203100
9999999
Not Available
2
PISTON KIT
2203098
9999999
Not Available
3
KIT-CONN ROD
2202952
9999999
Not Available
4
WRIST PIN BEARING
3514357
$40,94 Unit Price incl. VAT
5
BALL BEARING 40 X 80 X 18
3514444
9999999
Not Available
6
PISTON CIRCLIP 22 MM X 1.6 MM
3021179
9999999
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
DOUBLE ROW BALL BEARING; 35 X 72 X 36.5
3514499
3514530
$182,69 Unit Price incl. VAT
9
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT

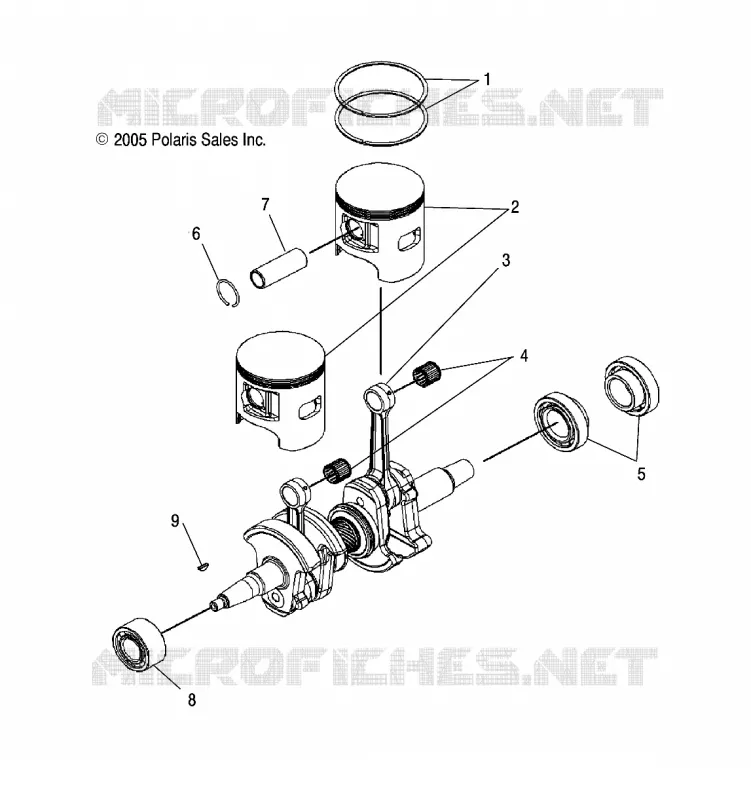

Find the detailed PISTON CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
