1
Engine displacement
600
2
Year
1998
3
Trim
600 RMK - 0980958
4
Parts Catalog
WATER PUMP 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C008)
5
Parts Diagram
Parts Catalog
CYLINDER 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C007)
by
RECOIL STARTER 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C013)

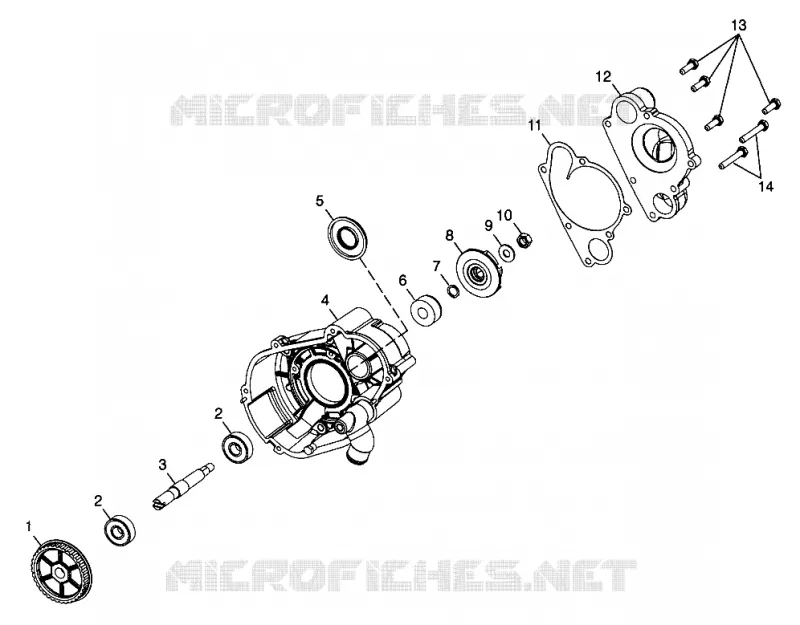

WATER PUMP 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C008)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
1
PULLEY WATERPUMP DRIVEN
3040158
9999999
Not Available
2
BEARING BALL SLD.DGRV.
3584008
9999999
Not Available
3
SHAFT WATERPUMP
5131283
9999999
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SEAL
3610044
9999999
Not Available
6
WATERPUMP SEAL
3610050
9999999
Not Available
7
WASHER FLAT SS.
7556006
9999999
Not Available
8
IMPELLER
5432330
9999999
Not Available
9
FLAT WASHER; SS
7555874
$4,19 Unit Price incl. VAT
10
HEX NUT; NYLOK
7546804
$2,09 Unit Price incl. VAT
11
WATERPUMP COVER GASKET
5811279
9999999
Not Available
12
COVER WATERPUMP
5630613
9999999
Not Available
13
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
14
SCREW
7516827
$12,59 Unit Price incl. VAT

Find the detailed WATER PUMP 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
