Engine displacement
500
2
Year
2004
3
Trim
A04CH50AQ SPORTSMAN 500 - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX
4
Parts Catalog
FUEL PUMP
5
Parts Diagram
Parts Catalog
GEARCASE
by
CONTROLS-THROTTLE ASM/CABLE
FUEL PUMP
-
1
2
2
3
4
4
1
2
3
4
1
2
3
4
4
4
-
ASM. PUMP FUEL
3085275
2520227
$146,99 Unit Price incl. VAT
1
ASM. SCREW AND WASHER
3088171
9999999
Not Available
2
ASM. SCREW AND WASHER
3088173
9999999
Not Available
3
SCREW AND WASHER
3084591
9999999
Not Available
4
DIAPHRAGM GASKET SET
3088170
9999999
Not Available

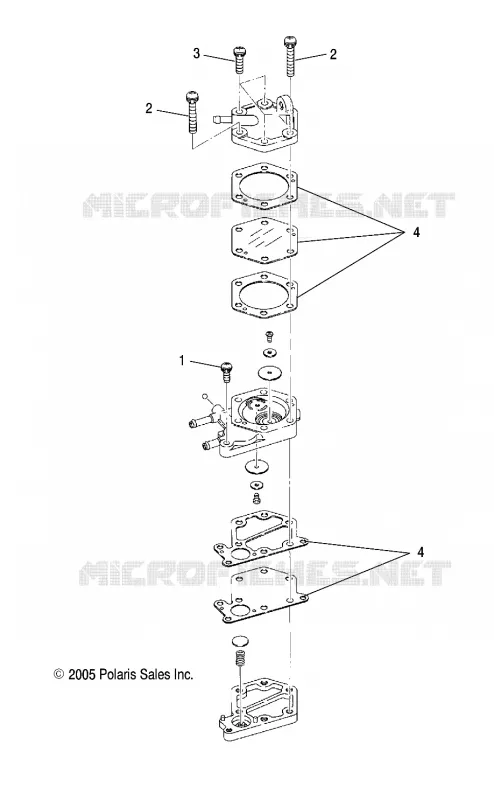

Find the detailed FUEL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
